  Q: How to replace the intake manifold on Chevrolet Colorado?

  A: It is an opportunity to change the Intake Manifold, i.e., start by detaching the Throttle Body, the battery box, the oil level indicator and tube, and disconnecting the brake booster hose for the brake booster. Next, remove the manifold absolute pressure (MAP) sensor electrical connector and MAP Sensor wiring harness retainer from Intake Manifold. Remove the positive crankcase ventilation (PCV) dirty air tube from the camshaft cover, disconnect the generator and the engine wiring harness retainer from the Intake Manifold. Pull off the two bolts on the top that attach the engine wiring harness bracket to the Intake Manifold, lift and support the vehicle sufficiently to be able to access the remaining components through the wheelhouse, remove the left front wheel and wheelhouse liner, then. Unhook the wiring harness retainers for Battery Cable, engine (4, 6) and MAP Sensor then remove the remaining engine wiring harness bracket and pull the bracket out through the wheelhouse opening and removing the bolt. Lower the vehicle, unbolt the Intake Manifold bolts, and peel off the Intake Manifold from the cylinder head. Replace old seal and mask off the open ports to the cylinder head to prevent the entry of foreign objects into the engine. Clean and inspect the Intake Manifold first before fitting a new seal into the Intake Manifold groove and fitting it onto the cylinder head. Lift up the vehicle once more to reach Intake Manifold bolts, engine wiring harness bracket bolts, and wiring harnesses. Install the Intake Manifold bolts by tightening them from within to 10 nm (89 inch lbs) and put the engine wiring harness bracket onto the engine and harnesses then put the bracket present onto the said bracket by installing bracket bolts that must be tightened to 10 nm (89 inch lbs). Snap retention for the wiring harnesses: battery cable, engine(4,6), and MAP Sensor, onto the engine wiring harness bracket, then install the left front wheelhouse liner, and left front wheel before lowering the vehicle. Connect the engine wiring harness retainer to the Intake Manifold, attach the generator, and attach the pcv dirty air tube to the camshaft cover. Lastly, connect begin the MAP Sensor wiring harness retainer and electrical connector, reconnect the brake booster hose, install the oil wish indicator and tube, battery box, finish installing the Throttle Body.

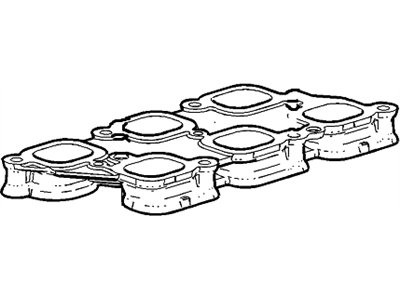

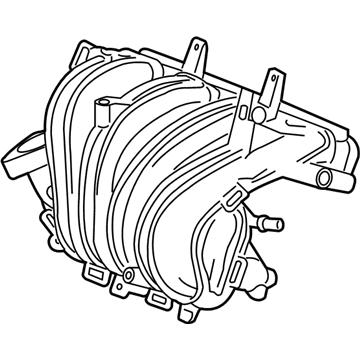

• Manifold
  17113697
  Q: How to service and repair the intake manifold on Chevrolet Tahoe?

  A: When repairing or servicing the Intake Manifold start with sensor removal from the intake's rear end before cleaning and reinstalling to the intake. Check the sealing grommet on the MAP Sensor for indications of damage or tears. Start by removing and discarding the Intake Manifold-to-cylinder head gaskets before you proceed to remove the Fuel Rail with injectors along with the Throttle Body and gasket. You should now disconnect the evaporative emissions (EVAP) purge solenoid from the bolt and isolator. Wear safety goggles before cleaning the Intake Manifold with solvent then focus on both gasket surfaces and internal channels. Clean the Intake Manifold by blowing it dry using compressed air. Check for loose or damaged threads on the Throttle Body studs and inserts and wire harness stud and insert and Fuel Rail bolt inserts during inspection. Check the vacuum passages inside the Intake Manifold for debris and inspect the MAP Sensor mounting bore in combination with retaining tabs for damage. Check the composite Intake Manifold assembly for cracks and examine every area between intake runners and assess all gasket sealing surfaces and fuel injector bore regions for extreme scoring and damage. Assess the Intake Manifold cylinder head deck for warpage by placing a straight edge across the surface and using a feeler gauge; the manifold requires replacement when the observed warpage reaches 3 mm (0.118 inch) across a 200 mm (7.87 inch) area. Reinstall the MAP Sensor and evap solenoid, bolt, and isolator. Additionally, torque the evap solenoid bolt to 10 nm (89 inch lbs.).

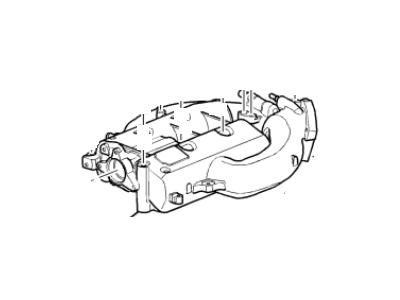

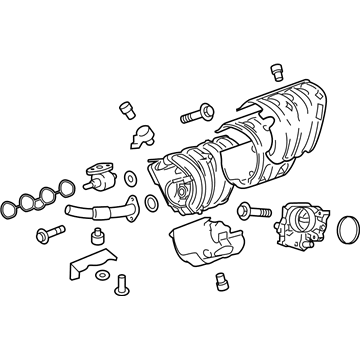

• Intake Manifold
  12567679
