How to replace an emblem/nameplate on the front fender on 2003 Chevrolet Corvette?

You should begin by applying tape to protect the mounting surface while drawing alignment marks onto it. Heat the emblem/nameplate using a Heat Gun (J 25070) while tracing a circular motion 152 mm (6 in) above the surface for 30 seconds. A plastic flat-bladed tool should be used to carefully extract the emblem/nameplate from its position. Clean the mounting surface with a lint-free fabric followed by Varnish Makers and Painters (VMP) Naphtha or a 50/50 solution of isopropyl alcohol and water before thoroughly drying the area. Apply tape in unmarked locations before installing the ZO6 emblem/nameplate which should follow these dimensions: 216.5 mm (8.50 in) from the top edge of the fender to the bottom and 212.74 mm (8.40 in) from the top edge to the bottom and 158.51 mm (6.24 in) from the rear edge to the back. Measuring 216.5 mm (8.50 in), 212.74 mm (8.40 in), and 158.51 mm (6.24 in) respectively from top fender edge to bottom edge with a rear-to-back distance of 158.51 mm (6.24 in). The 50th Anniversary emblem/nameplate requires 158.75 mm (6.25 in) from front edge to back edge and 120.65 mm (4.75 in) from top edge to top. The Heat Gun (J 25070) should be used to heat the mounting surface to 27-41°C (80-105°F), while keeping the emblem/nameplate at 29-32°C (85-90°F). First remove the protective liner and then align the emblem/nameplate against the marks before applying uniform pressure while pressing it to the mounting surface. Finish the process by taking off tape from the mounting area.

OEM 2003 Chevrolet Corvette Emblem

Badge

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Emblems found

View related parts

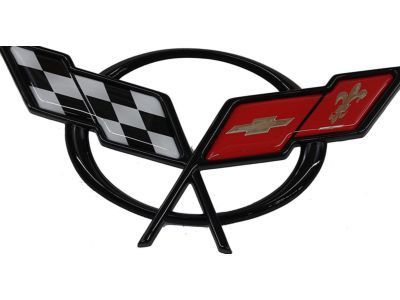

2003 Chevrolet Corvette Emblem
Part Number: 10291759
$6.75 MSRP: $7.95
You Save: $1.20 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Emblem, Radio Auxiliary Speakers
- Position: Front
- Item Weight: 0.30 Pounds
- Item Dimensions: 2.3 x 1.7 x 1.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 10291759
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 427, 427 Limited Edition Z06, 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Grand Sport, Indianapolis 500 Pace Car, Z06, Z06 Carbon, ZR1 | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
2003 Chevrolet Corvette Emblem, Rear
Part Number: 19207386
Product Specifications
- Other Name: Emblem, Rear End Panel And Tailgate; Emblem,Rear End Panel And Tailgate
- Position: Rear
- Replaces: 10332910
- Item Weight: 0.30 Pounds
- Item Dimensions: 4.9 x 2.6 x 0.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19207386
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 50th Anniversary Edition Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
2003 Chevrolet Corvette Emblem, Front
Part Number: 10315690
$100.95 MSRP: $150.25
You Save: $49.30 (33%)
Product Specifications
- Other Name: Emblem, Front Fender Name
- Position: Front
- Item Weight: 0.30 Pounds
- Item Dimensions: 4.7 x 2.3 x 0.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 10315690
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Z06 | 8 Cyl 5.7 L GAS
View related parts
2003 Chevrolet Corvette Emblem
Part Number: 19207387
$76.34 MSRP: $113.62
You Save: $37.28 (33%)
Product Specifications
- Other Name: Emblem, Bumper/Fascia
- Position: Front
- Replaces: 10332911
- Item Weight: 0.30 Pounds
- Item Dimensions: 8.3 x 3.2 x 3.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19207387
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Z06 | 8 Cyl 5.7 L GAS
View related parts
2003 Chevrolet Corvette Emblem, Front
Part Number: 10314089
$54.98 MSRP: $81.83
You Save: $26.85 (33%)
Product Specifications
- Other Name: Emblem, Front Fender Name
- Position: Front
- Item Weight: 0.30 Pounds
- Item Dimensions: 6.4 x 1.5 x 0.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 10314089
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Z06 | 8 Cyl 5.7 L GAS
View related parts
2003 Chevrolet Corvette Emblem, Top
Part Number: 10328753
Product Specifications
- Other Name: Emblem, Folding Top Compartment
- Position: Top
- Item Weight: 0.40 Pounds
- Item Dimensions: 6.1 x 3.6 x 0.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 10328753
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2003 Chevrolet Corvette Submodels:
- 50th Anniversary Edition, Base | 8 Cyl 5.7 L GAS

2003 Chevrolet Corvette Emblem

With a comprehensive array of OEM 2003 Chevrolet Corvette Emblem, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2003 Chevrolet Corvette Emblem are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2003 Chevrolet Corvette Emblem Parts Questions & Experts Answers

Q: How to replace an emblem/nameplate on the front fender on 2003 Chevrolet Corvette?
A: You should begin by applying tape to protect the mounting surface while drawing alignment marks onto it. Heat the emblem/nameplate using a Heat Gun (J 25070) while tracing a circular motion 152 mm (6 in) above the surface for 30 seconds. A plastic flat-bladed tool should be used to carefully extract the emblem/nameplate from its position. Clean the mounting surface with a lint-free fabric followed by Varnish Makers and Painters (VMP) Naphtha or a 50/50 solution of isopropyl alcohol and water before thoroughly drying the area. Apply tape in unmarked locations before installing the ZO6 emblem/nameplate which should follow these dimensions: 216.5 mm (8.50 in) from the top edge of the fender to the bottom and 212.74 mm (8.40 in) from the top edge to the bottom and 158.51 mm (6.24 in) from the rear edge to the back. Measuring 216.5 mm (8.50 in), 212.74 mm (8.40 in), and 158.51 mm (6.24 in) respectively from top fender edge to bottom edge with a rear-to-back distance of 158.51 mm (6.24 in). The 50th Anniversary emblem/nameplate requires 158.75 mm (6.25 in) from front edge to back edge and 120.65 mm (4.75 in) from top edge to top. The Heat Gun (J 25070) should be used to heat the mounting surface to 27-41°C (80-105°F), while keeping the emblem/nameplate at 29-32°C (85-90°F). First remove the protective liner and then align the emblem/nameplate against the marks before applying uniform pressure while pressing it to the mounting surface. Finish the process by taking off tape from the mounting area.
