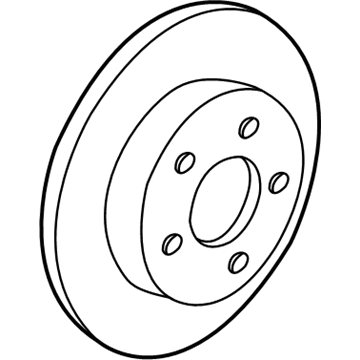

OEM 2005 Cadillac DeVille Brake Disc

2005 Cadillac DeVille Brake Disc Parts and Q&A

• Q: What tools are required to service and repair the Brake Disc on 2005 Cadillac DeVille?

  A: For servicing and repairing the Brake Disc, one needs the following tools: there are others such as j 41013 rotor resurfacing kit (J 41013), j 42450-a wheel hub resurfacing kit (J 42450-A), j 42501 Brake Pad set padmk9 (NTNL) 5, j 42505 Brake Pad coupler & shims set, and many other equipment and tools for disc and hub grinding. The disc brake discs are not refinished as a component of routine brake system service since new disc brake discs are not refinished, either. Refinishing should not be done to address the problems of brake system noise, uneven or premature disc Brake Pad wear, superficial corrosion, and scoring below the maximum allowable specification. When refinishing begins, the disc will be inspected to ascertain that it is of the right thickness to ensure it remains above the minimum thickness after refinishing. Refinishing is justified in cases where there is an excessive thickness variation or corrosion, pitting, cracks, heat spots, blueing discoloration or scoring in excess of the maximum allowable specification. When removing the Brake Disc from the hub/axle flange, clean off the rust or contaminants from mating surfaces to avoid additional assembled lateral runout (LRO). First, clean the hub/axle flange mating surface using the j 42450-a (J 42450-A), followed by the j 41013 (J 41013) for the Brake Disc. Measure and inspect for debris on both mating surfaces and then place the Brake Disc on the brake lathe with all attachments clean. With the latter running, introduce the cutting objections to touch the disc friction surfaces and ascertain the witness mark. If not, it does not go around the disc three-quarters, remount it. Follow the instructions for the lathe manufacturer and refinish the disc, checking for thickness after each cutting. In case the disc becomes more than the allowable thickness, it has to be replaced. To complete a non-directional finish, follow the recommended speed settings and apply the finish using 120 grit aluminum oxide sandpaper or 150 grit aluminum oxide sandpaper and a sanding block and then clean off the ride with denatured alcohol or appropriate brake cleaner. Finally, gather the assembled lro to verify for specs; if the specification is exceeded, correct it.
