How to replace the shock absorber on 2005 Cadillac STS?

The replacement process for shocks starts with taking off the trim panel followed by moving aside the sound insulator from the shock tower. Vehicles with F55 suspension require the separation of electrical connector before proceeding to remove upper shock mounting nuts. First elevate and maintain the vehicle position before removing the automatic level control from the shock by using the retaining clip and pulling the connector off. You must take the shock absorber out of the vehicle once you remove the lower shock mounting bolt. The new shock needs positioning before installing the lower shock mounting bolt with 150 Nm (111 ft. lbs.) torque. The automatic level control air line needs to connect to the shock after which you should guide the shock to the body with the vehicle lowered then install upper shock mounting nuts at 25 Nm torque (18 ft. lbs). The electrical connector must be reestablished on F55 suspension vehicles before positioning the sound insulator against the shock tower and fitting the trim panel.

OEM 2005 Cadillac STS Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Shock Absorbers found

View related parts

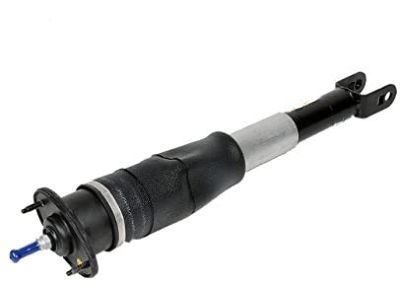

2005 Cadillac STS Shock, Driver Side
Part Number: 19302795
$495.98 MSRP: $962.60
You Save: $466.62 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber, Front And Rear Suspension; Shock Absorber
- Position: Driver Side
- Replaces: 89060191
- Item Weight: 11.80 Pounds
- Item Dimensions: 6.3 x 6.2 x 28.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19302795
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts

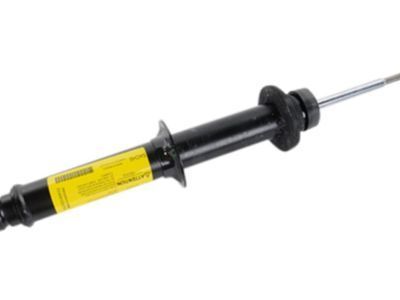

2005 Cadillac STS Shock Absorber, Front
Part Number: 19181633
$69.15 MSRP: $159.66
You Save: $90.51 (57%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Front Shock; Strut; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19177764, 19121992, 19181635, 19180577, 88966973
- Item Weight: 0.30 Pounds
- Item Dimensions: 28.1 x 8.3 x 6.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19181633
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS
View related parts

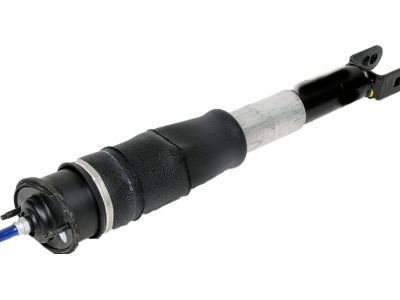

2005 Cadillac STS Shock Absorber, Rear Upper
Part Number: 25769669
$326.97 MSRP: $634.59
You Save: $307.62 (49%)
ADD TO CART
Product Specifications
- Other Name: Absorber, Rear Shock (W/Upper Mount); Shock; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Item Weight: 9.40 Pounds
- Item Dimensions: 27.0 x 6.8 x 6.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25769669
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2005 Cadillac STS Strut, Driver Side
Part Number: 25766002
$211.25 MSRP: $332.39
You Save: $121.14 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber, Front And Rear Suspension; Shock Absorber
- Position: Driver Side
- Item Weight: 24.00 Pounds
- Item Dimensions: 31.4 x 13.7 x 13.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25766002
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2005 Cadillac STS Shock Absorber, Rear Upper
Part Number: 15145723
$234.10 MSRP: $433.11
You Save: $199.01 (46%)
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Shock; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Item Weight: 23.80 Pounds
- Item Dimensions: 28.0 x 6.0 x 5.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 15145723
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2005 Cadillac STS Shock Absorber, Front
Part Number: 19181634
Product Specifications
- Other Name: Absorber Kit, Front Shock; Strut; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19177766, 89060237, 19177767, 19180738, 89060238
- Item Weight: 2.80 Pounds
- Item Dimensions: 26.9 x 8.4 x 5.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19181634
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2005 Cadillac STS Shock, Passenger Side
Part Number: 19302796
$520.20 MSRP: $937.30
You Save: $417.10 (45%)
Product Specifications
- Other Name: Absorber, Front And Rear Suspension; Shock Absorber
- Position: Passenger Side
- Replaces: 89060192
- Item Weight: 11.10 Pounds
- Item Dimensions: 6.3 x 6.1 x 29.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19302796
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2005 Cadillac STS Shock Absorber, Front
Part Number: 19300030
Product Specifications
- Other Name: Absorber Kit, Front Shock; Strut; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19150593, 88955523
- Item Weight: 2.50 Pounds
- Item Dimensions: 28.3 x 6.1 x 6.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 19300030
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2005 Cadillac STS Strut, Passenger Side
Part Number: 25766003
$226.29 MSRP: $356.05
You Save: $129.76 (37%)
Product Specifications
- Other Name: Absorber, Front And Rear Suspension; Shock Absorber
- Position: Passenger Side
- Item Weight: 23.80 Pounds
- Item Dimensions: 30.2 x 13.8 x 14.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25766003
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2005 Cadillac STS Shock Absorber, Rear Upper
Part Number: 15238517
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Shock; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Replaces: 25713754
- Item Weight: 9.60 Pounds
- Item Dimensions: 9.5 x 8.3 x 31.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 15238517
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Cadillac STS Submodels:
- Base, Platinum | 8 Cyl 4.6 L GAS

2005 Cadillac STS Shock Absorber

With a comprehensive array of OEM 2005 Cadillac STS Shock Absorber, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2005 Cadillac STS Shock Absorber are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2005 Cadillac STS Parts Questions & Experts Answers

Q: How to replace the shock absorber on 2005 Cadillac STS?
A: The replacement process for shocks starts with taking off the trim panel followed by moving aside the sound insulator from the shock tower. Vehicles with F55 suspension require the separation of electrical connector before proceeding to remove upper shock mounting nuts. First elevate and maintain the vehicle position before removing the automatic level control from the shock by using the retaining clip and pulling the connector off. You must take the shock absorber out of the vehicle once you remove the lower shock mounting bolt. The new shock needs positioning before installing the lower shock mounting bolt with 150 Nm (111 ft. lbs.) torque. The automatic level control air line needs to connect to the shock after which you should guide the shock to the body with the vehicle lowered then install upper shock mounting nuts at 25 Nm torque (18 ft. lbs). The electrical connector must be reestablished on F55 suspension vehicles before positioning the sound insulator against the shock tower and fitting the trim panel.
