How to replace the right instrument panel fuse box on 2005 Chevrolet Monte Carlo?

The right instrument panel electrical center or junction block replacement procedure starts with disconnecting the negative Battery Cable. Begin the junction block replacement by removing both the rh instrument panel cover and then disconnecting the body harness from the junction block. The practitioner should access the junction block bolt located inside the ip compartment. Remove the junction block tabs from the passenger knee bolster then extract the junction block from the ip section. The next step requires disconnecting wiring harnesses from the junction block before removing it. Install the junction block by attaching body wiring harness connectors and securing each fastening bolt to 7 n.m (62 lb in). Fasten the junction block tabs onto the passenger knee bolster before torquing the junction block bolt up to 10 n.m (89 lb in). Reattach the negative Battery Cable as the last step after installing the cover on the rh ip fuse block access opening and connecting the body wiring harness to the junction block while closing the ip compartment.

OEM 2005 Chevrolet Monte Carlo Fuse Box

Fuse Holder Box

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Fuse Boxes found

View related parts

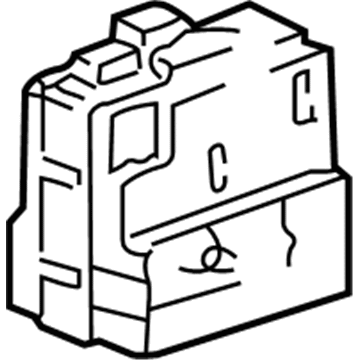

2005 Chevrolet Monte Carlo Fuse & Relay Box
Part Number: 15329229
Product Specifications
- Other Name: Block Assembly-Accessory Wiring Junction; Junction Boxes; Relay Boxes; Fuse Box; Block, Main Wiring Junction And Fuse Block
- Item Weight: 3.10 Pounds
- Item Dimensions: 9.8 x 8.3 x 6.5 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 15329229
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Monte Carlo Submodels:
- LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

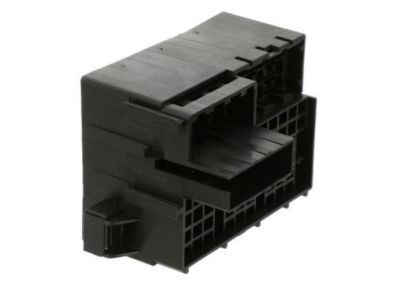

2005 Chevrolet Monte Carlo Fuse & Relay Box, Passenger Side
Part Number: 12176369
Product Specifications
- Other Name: Block, Main Wiring Junction And Fuse Block; Junction Boxes; Relay Boxes; Fuse Box
- Position: Passenger Side
- Replaces: 12129995
- Item Weight: 0.80 Pounds
- Item Dimensions: 6.3 x 4.2 x 4.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 12176369
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Monte Carlo Submodels:
- LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

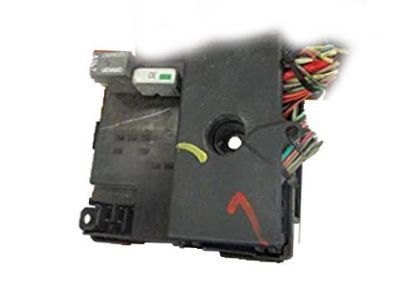

2005 Chevrolet Monte Carlo Fuse & Relay Box
Part Number: 15329230
Product Specifications
- Other Name: Block Assembly-Accessory Wiring Junction; Junction Boxes; Relay Boxes; Fuse Box; Block, Main Wiring Junction And Fuse Block
- Item Weight: 1.90 Pounds
- Item Dimensions: 9.1 x 8.5 x 6.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 15329230
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Monte Carlo Submodels:
- LS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS

2005 Chevrolet Monte Carlo Fuse Box

With a comprehensive array of OEM 2005 Chevrolet Monte Carlo Fuse Box, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2005 Chevrolet Monte Carlo Fuse Box are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2005 Chevrolet Monte Carlo Parts Questions & Experts Answers

Q: How to replace the right instrument panel fuse box on 2005 Chevrolet Monte Carlo?
A: The right instrument panel electrical center or junction block replacement procedure starts with disconnecting the negative Battery Cable. Begin the junction block replacement by removing both the rh instrument panel cover and then disconnecting the body harness from the junction block. The practitioner should access the junction block bolt located inside the ip compartment. Remove the junction block tabs from the passenger knee bolster then extract the junction block from the ip section. The next step requires disconnecting wiring harnesses from the junction block before removing it. Install the junction block by attaching body wiring harness connectors and securing each fastening bolt to 7 n.m (62 lb in). Fasten the junction block tabs onto the passenger knee bolster before torquing the junction block bolt up to 10 n.m (89 lb in). Reattach the negative Battery Cable as the last step after installing the cover on the rh ip fuse block access opening and connecting the body wiring harness to the junction block while closing the ip compartment.
