Make sure this part fits

GM 15329229
Fuse & Relay Box

2000-2005 GM

Customer Questions & Expert Answers (11)

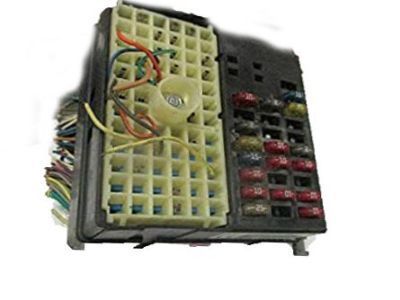

GM 15329229 Fuse & Relay Box
GM 15329229 Fuse & Relay Box
GM 15329229 Fuse & Relay Box
GM 15329229 Fuse & Relay Box
  • Part Description
    Block Assembly-Accessory Wiring Junction; Junction Boxes; Relay Boxes; Fuse Box
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

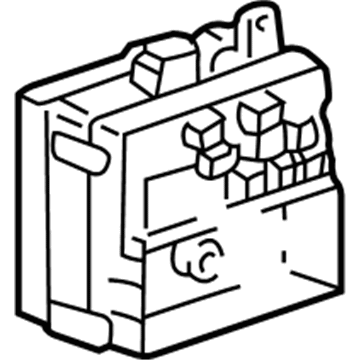

  • 15329229 Fuse & Relay Box is Ref No. 1 in the diagram below

    2004 Chevy Monte Carlo Fuse & Relay Box Diagram for 15329229
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15329229

  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number15329229
    Part DescriptionBlock Assembly-Accessory Wiring Junction; Junction Boxes; Relay Boxes; Fuse Box
    Other NamesBlock, Main Wiring Junction And Fuse Block
    Item Dimensions9.8 x 8.3 x 6.5 inches
    Item Weight3.10 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ManufacturerGeneral Motors
    SKU15329229
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2000-2005 Chevrolet ImpalaBase, LS, LS Sport, SS6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
    2000-2005 Chevrolet Monte CarloLS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS

  • Customer Questions & Expert Answers

    Q:
    Is this 15329229 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15329229 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the left instrument panel fuse box on Chevrolet Impala? Posted by Customer
    A:
    The first step to replace the left instrument panel electrical center or Fuse Box consists of disconnecting the negative Battery Cable. Begin by taking off the left i/p Fuse Box access hole cover then disconnect c2 outboard wiring harness connector from the Fuse Box. The first step involves removing the connector position assurance from the yellow inflatable restraint connector before disconnecting and repositioning the yellow inflatable restraint connector to access the bolts. Steering column fillers and i/p driver knee bolsters need to be taken off before proceeding. The Fuse Box requires disconnecting its inner wiring harness connector then removing all Fuse Box bolts. Aybo remove the Fuse Box from the slot in the cross vehicle beam before pulling it away from the i/p. To install the Fuse Box position its tab inside the cross vehicle beam slot and secure Fuse Box bolts at 10 n.m (89 lb in). After connecting the yellow inflatable restraint connector to the Fuse Box use a torque wrench to tighten its bolt to 7 n.m (62 lb in). Put back the i/p driver knee bolster together with the steering column filler. First connect the yellow inflatable restraint connector then install the cpa before attaching the connector to the Fuse Box. The process ends with connecting outboard wiring harness connector c2 to the Fuse Box while tightening its bolt to 7 n.m (62 lb in). Afterward, install left i/p Fuse Box access hole cover and return the negative Battery Cable.
    Posted by ChevyPartsGiant Specialist
    Q:
    How do you reattach the buss bar jumper bar for the 2004 Chevrolet Impala? Posted by Customer
    A:
    Attach it to the fuse block(s) and tighten the jumper bar bolts to 9 N.m (80 lb in).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    How do you gain access to the junction block for the 2003 Chevrolet Impala? Posted by Customer
    A:
    Adjust the instrument panel cluster trim plate for access.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    How should the junction block bolts be installed for the 2002 Chevrolet Impala? Posted by Customer
    A:
    Install the junction block bolts and tighten them to 10 N.m (89 lb in).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    After connecting the body wiring harnesses, what should be done next for the 2005 Chevrolet Monte Carlo? Posted by Customer
    A:
    Install the junction block tabs to the passenger knee bolster and secure the junction block bolt.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What is the first step to replace the right instrument panel electrical center or junction block for the 2004 Chevrolet Monte Carlo? Posted by Customer
    A:
    First disconnect the negative battery cable.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be done after pulling the junction block away from the IP for the 2002 Chevrolet Monte Carlo? Posted by Customer
    A:
    Disconnect the wiring harnesses from the junction block and remove it.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What are the final steps after securing the junction block for the 2005 Chevrolet Impala? Posted by Customer
    A:
    Reinstall the left I/P insulator and reconnect the negative battery cable.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be done if necessary regarding the junction block for the 2004 Chevrolet Monte Carlo? Posted by Customer
    A:
    Detach the junction block from the bracket assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What is the first step to replace the I/P Electrical Center or Junction Block for the 2003 Chevrolet Monte Carlo? Posted by Customer
    A:
    First disconnect the negative battery cable.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM 15329229, Excellent Performance and Perfect Fitment

To ensure reliability, purchase GM part # 15329229 Fuse & Relay Box. It is sometimes referred to as GM Fuse Box. Choosing OEM parts is the optimal decision for guaranteeing superior quality and perfect performance. These components undergo stringent quality checks and are carefully constructed to comply with GM's factory specifications, ensuring a smooth installation process.

ChevyPartsGiant.com is a leading supplier of genuine GM parts such as GM 15329229 Fuse & Relay Box. Our website boasts an extensive inventory of OEM GM parts, available at highly competitive prices in the market. Should you require any new genuine GM parts, rest assured we will deliver them swiftly and efficiently to your doorstep. Furthermore, all our parts come with the assurance of a manufacturer's warranty. For detailed Chevy parts information, click here.
