GM 12176369
Fuse & Relay Box, Passenger Side

1995-2005 GM

Customer Questions & Expert Answers (11)

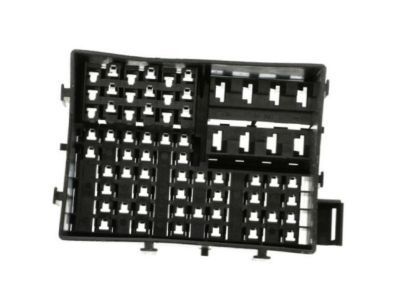

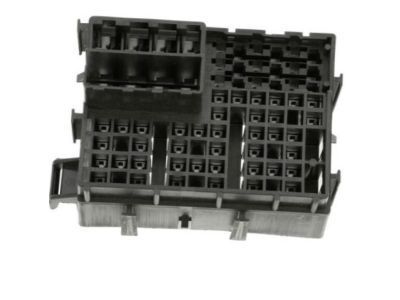

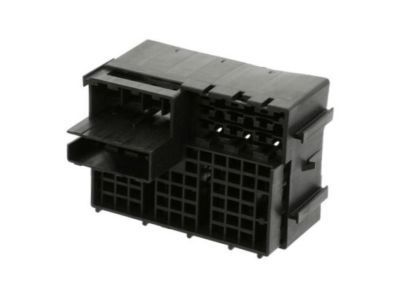

GM 12176369 Fuse & Relay Box, Passenger Side
GM 12176369 Fuse & Relay Box, Passenger Side
GM 12176369 Fuse & Relay Box, Passenger Side
GM 12176369 Fuse & Relay Box, Passenger Side
GM 12176369 Fuse & Relay Box, Passenger Side
GM 12176369 Fuse & Relay Box, Passenger Side
  • Part Description
    Block, Main Wiring Junction And Fuse Block; Junction Boxes; Relay Boxes; Fuse Box
  • Position
    Passenger Side
  • Replaces
    12129995
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

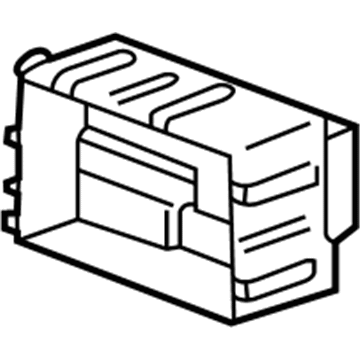

  • 12176369 Fuse & Relay Box, Passenger Side is Ref No. 3 in the diagram below

    2004 Chevy Monte Carlo Fuse & Relay Box, Passenger Side Diagram for 12176369
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 12176369

  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number12176369
    Part DescriptionBlock, Main Wiring Junction And Fuse Block; Junction Boxes; Relay Boxes; Fuse Box
    Item Dimensions6.3 x 4.2 x 4.2 inches
    Item Weight0.80 Pounds
    PositionPassenger Side
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces12129995
    ManufacturerGeneral Motors
    SKU12176369
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65

  • Vehicle Fitment

    Year Make Model Trim Engine
    2000-2005 Chevrolet ImpalaBase, LS, LS Sport, SS6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
    1995-2005 Chevrolet Monte CarloLS, LS Competition, LS Sport, LT, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car, Z346 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS

  • Customer Questions & Expert Answers

    Q:
    Is this 12176369 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 12176369 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the right instrument panel fuse box on Chevrolet Monte Carlo? Posted by Customer
    A:
    The replacement of a right instrument panel electrical center or Fuse Box starts with negative Battery Cable disconnection. First remove the rh instrument panel Fuse Box access opening cover after which disconnect the body wiring harness from the Fuse Box. Touch the ip compartment to expose the Fuse Box bolt and then take out that bolt. Remove the Fuse Box from the ip by firstly disconnecting harnesses from the box and pulling it away from the ip while disengaging tabs from the passenger knee bolster. Connect the body wiring harnesses to the Fuse Box by tightening their bolts to 7 n.m (62 lb in). Fasten the Fuse Box bolt to the passenger knee bolster through the Fuse Box tabs while tightening it to 10 n.m (89 lb in). After securing the ip compartment you need to install the rh ip Fuse Box access opening cover and complete the process by reattaching the negative Battery Cable.
    Posted by ChevyPartsGiant Specialist
    Q:
    What needs to be removed to take out the junction block for the 2002 Chevrolet Impala? Posted by Customer
    A:
    Remove the junction block bolts and the junction block tab from the slot in the cross vehicle beam.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What are the next steps after disconnecting the body wiring harness for the 2003 Chevrolet Impala? Posted by Customer
    A:
    Remove the junction block bolts and the junction block tab from the slot in the cross vehicle beam, pulling the junction block away from the IP.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be removed to access the junction block for the 2004 Chevrolet Impala? Posted by Customer
    A:
    Remove the left I/P fuse block access hole cover.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be done after accessing the junction block bolt for the 2005 Chevrolet Monte Carlo? Posted by Customer
    A:
    Remove the junction block bolt.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    How do you secure the buss bar(s) during installation for the 2004 Chevrolet Impala? Posted by Customer
    A:
    Press the buss bar(s) into the fuse block(s) until they are secure.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What is the first step to replace the accessory wiring junction block for the 2005 Chevrolet Impala? Posted by Customer
    A:
    Disconnect the negative battery cable and remove the left instrument panel (I/P) insulator.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be removed after disconnecting the negative battery cable for the 2002 Chevrolet Monte Carlo? Posted by Customer
    A:
    Remove the RH instrument panel fuse block access opening cover and disconnect the body wiring harness from the junction block.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What is the first step in the installation process for the 2004 Chevrolet Monte Carlo? Posted by Customer
    A:
    If required, attach the junction block to the bracket assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
    Q:
    What should be done after securing the junction block for the 2003 Chevrolet Monte Carlo? Posted by Customer
    A:
    Close the IP compartment, connect the body wiring harness to the junction block, install the RH IP fuse block access opening cover, and finally reconnect the negative battery cable.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Fuse Box
