How to service and repair a coil springs and shock absorber on 2010 Cadillac STS?

Service and repair operations on the shock absorber should start by elevating and stabilizing the vehicle. First remove the tire along with wheel before extracting the shock module from the vehicle. Put the shock module inside the spring compressor while marking both the upper Control Arm assembly and insulator for correct installation when the shock absorber allows smooth movement with a compressed spring. Twist the spring compressor forcing screw until the coil spring becomes compressed while taking out first the magnaride sensor nut and the shock absorber upper retaining nut before extracting the shock absorber from the shock module. Tighten the compressor forcing screw until the upper mounting plate and coil spring loosen away from their positions. After that, remove both the upper Control Arm bracket assembly along with its insulator. The upper Control Arm bracket alignment pins should face horizontally towards the shock absorber lower mounting holes before installation. Place the coil spring combined with insulator and upper Control Arm bracket assembly and shock absorber into the spring compressor while keeping all marks aligned before squeezing the coil spring further. Fasten the shock absorber retaining nut to 25 nm torque before tightening the magnaride sensor nut to 20 nm torque. After removal of the shock module from the spring compressor replace it into the vehicle body. The wheel and tire must be installed before you lower the vehicle to its normal position.

OEM 2010 Cadillac STS Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Shock Absorbers found

View related parts

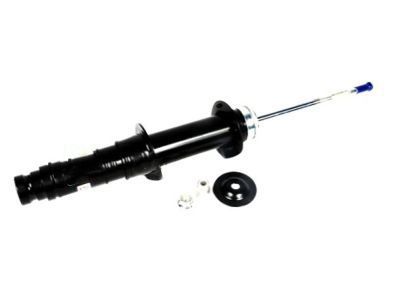

2010 Cadillac STS Shock Absorber, Front
Part Number: 19180778
$526.42 MSRP: $952.80
You Save: $426.38 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Kit, Front Shock; Strut; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19181632, 19121865, 19177765
- Item Weight: 8.10 Pounds
- Item Dimensions: 31.5 x 8.1 x 8.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19180778
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock Absorber, Rear Upper
Part Number: 15938719
$115.89 MSRP: $209.74
You Save: $93.85 (45%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Absorber, Front And Rear Suspension
- Position: Rear Upper
- Replaces: 15289216
- Item Weight: 10.00 Pounds
- Item Dimensions: 27.8 x 6.7 x 6.7 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 15938719
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base | 6 Cyl 3.6 L GAS
View related parts
2010 Cadillac STS Shock Absorber, Rear Upper
Part Number: 25769669
$326.97 MSRP: $634.59
You Save: $307.62 (49%)
ADD TO CART
Product Specifications
- Other Name: Absorber, Rear Shock (W/Upper Mount); Shock; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Item Weight: 9.40 Pounds
- Item Dimensions: 27.0 x 6.8 x 6.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25769669
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock Absorber, Front
Part Number: 19300029
Product Specifications
- Other Name: Absorber Kit, Front Shock; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19150444
- Item Weight: 8.50 Pounds
- Item Dimensions: 6.3 x 6.3 x 28.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19300029
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock Absorber, Front
Part Number: 19181634
Product Specifications
- Other Name: Absorber Kit, Front Shock; Strut; Absorber Kit, Front And Rear Suspension
- Position: Front
- Replaces: 19177766, 89060237, 19177767, 19180738, 89060238
- Item Weight: 2.80 Pounds
- Item Dimensions: 26.9 x 8.4 x 5.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19181634
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock, Rear Upper Passenger Side
Part Number: 15148390
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Shock Absorber
- Position: Rear Upper Passenger Side
- Replaced by: 19302766
- Item Weight: 11.60 Pounds
- Item Dimensions: 6.2 x 6.1 x 28.6 inches
- Condition: New
- SKU: 15148390
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock, Driver Side
Part Number: 19302765
Product Specifications
- Other Name: Absorber, Front And Rear Suspension; Shock Absorber
- Position: Driver Side
- Replaces: 15148389
- Item Weight: 11.10 Pounds
- Item Dimensions: 6.1 x 6.3 x 28.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 19302765
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock Absorber, Rear Upper
Part Number: 15238517
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Shock; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Replaces: 25713754
- Item Weight: 9.60 Pounds
- Item Dimensions: 9.5 x 8.3 x 31.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 15238517
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 8 Cyl 4.6 L GAS
View related parts
2010 Cadillac STS Shock, Rear Upper
Part Number: 25795219
Product Specifications
- Other Name: Absorber Assembly-Rear Shock (W/Upper Mount); Shock Absorber; Absorber, Front And Rear Suspension
- Position: Rear Upper
- Item Weight: 10.40 Pounds
- Item Dimensions: 6.2 x 6.3 x 33.3 inches
- Condition: New
- Fitment Type: Direct Replacement
- Require Quantity: 2
- SKU: 25795219
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2010 Cadillac STS Submodels:
- Base, Platinum | 6 Cyl 3.6 L GAS

2010 Cadillac STS Shock Absorber

With a comprehensive array of OEM 2010 Cadillac STS Shock Absorber, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2010 Cadillac STS Shock Absorber are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2010 Cadillac STS Parts Questions & Experts Answers

Q: How to service and repair a coil springs and shock absorber on 2010 Cadillac STS?
A: Service and repair operations on the shock absorber should start by elevating and stabilizing the vehicle. First remove the tire along with wheel before extracting the shock module from the vehicle. Put the shock module inside the spring compressor while marking both the upper Control Arm assembly and insulator for correct installation when the shock absorber allows smooth movement with a compressed spring. Twist the spring compressor forcing screw until the coil spring becomes compressed while taking out first the magnaride sensor nut and the shock absorber upper retaining nut before extracting the shock absorber from the shock module. Tighten the compressor forcing screw until the upper mounting plate and coil spring loosen away from their positions. After that, remove both the upper Control Arm bracket assembly along with its insulator. The upper Control Arm bracket alignment pins should face horizontally towards the shock absorber lower mounting holes before installation. Place the coil spring combined with insulator and upper Control Arm bracket assembly and shock absorber into the spring compressor while keeping all marks aligned before squeezing the coil spring further. Fasten the shock absorber retaining nut to 25 nm torque before tightening the magnaride sensor nut to 20 nm torque. After removal of the shock module from the spring compressor replace it into the vehicle body. The wheel and tire must be installed before you lower the vehicle to its normal position.
