How to replace the Air Inject Check Valve and Pipe on Cadillac Catera?

Replacing the secondary air injection (AIR) check valve and pipe begins with disassembly of the air hoses combined with the removal of the check valve and the center air pipe and subsequent detachment of the upper Exhaust Manifold heat shield. The bolt unfastening of the air pipe must be followed by its separation from the Exhaust Manifold through air pipe bank 1 and air pipe bank 2 detachment. Install the new air pipes by placing their gaskets onto the surfaces and clean the Exhaust Manifold thoroughly to achieve proper sealing. The installation requires gm p/n 5613695 anti-seize compound or equivalent on the air pipe nipple to manifold and the bolts along with the air check valve. Apply the Exhaust Manifold bolts to new air pipes of air pipe bank 1 and air pipe bank 2 until the torque reaches 20 n.m (15 lb ft). Begin with reattaching both upper Exhaust Manifold heat shields and then install the center air pipe and the air check valve. Tighten the check valve to 30 n.m (22 lb ft). The completion includes attaching the air hoses while installing fuse clamps along with leakage verification checks.

OEM Cadillac Catera Air Inject Check Valve

Air Injection Reaction Check Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Air Inject Check Valves found

View related parts

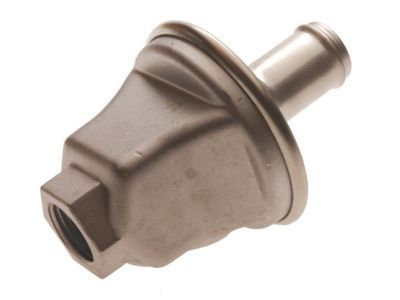

Cadillac Catera Check Valve Part Number: 9199513
Product Specifications
- Other Name: Valvesecd Air Injection Check; Secondary Air Injection Check Valve; Diverter Valve; Valve, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2001 Cadillac Catera | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Catera Vacuum Solenoid Part Number: 90466214
Product Specifications
- Other Name: Valve, Air Cleaner Controls; Control Solenoid; By-Pass Valve; Valve, Engine Fuel Intake Manifold; Valve, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2001 Cadillac Catera | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Catera By-Pass Valve Part Number: 9192121
Product Specifications
- Other Name: Valve, Secondary Air Injection Bypass; Secondary Air Injection Check Valve; Valve, Emission Control System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2001 Cadillac Catera | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Catera By-Pass Valve Part Number: 90542304
Product Specifications
- Other Name: Valve, Emission Control System; Secondary Air Injection Check Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1998 Cadillac Catera | Base | 6 Cyl 3.0 L GAS

Cadillac Catera Air Inject Check Valve

Want to cut long-term maintenance and repair costs? Choose OEM Air Inject Check Valve. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Catera parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Catera Air Inject Check Valve includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The normal operating function of Cadillac Catera Air Inject Check Valves improves both vehicle performance and reliability in emission control system of Cadillac Catera vehicles. The exhaust stream receives fresh air through the Air Inject Check Valve which helps oxidize unburned hydrocarbons and lowers emissions harmfulness. An engineered mechanism in this check valve creates a barrier to stop exhaust gases from reentering the air injection system which maintains engine performance quality and meets emission standards. Customers who own Cadillac Catera vehicles built between 1996 and 2001 can benefit from the integral Air Inject Check Valve due to its universal application across the models. Reliability emerges from its strong design combined with its high functionality which distinguishes it among competitors in the automotive sector. The Cadillac Catera delivers superior luxury and comfort because of its Air Inject Check Valve that greatly enhances the entire driving experience. The cost-effective nature of Air Inject Check Valves stands at $20 to $440 based on product materials combined with brand selection thus making the purchase value-based on its operational enhancements. The installation cost between $60-$80 protects the Cadillac Catera from failures by maintaining its operational reliability. The Cadillac Catera Air Inject Check Valve stands as proof of the automaker's dedication towards delivering high-quality innovative solutions for the automotive sector.

Cadillac Catera Air Inject Check Valve Parts and Q&A

Check Valve
9199513
Q: How to replace the Air Inject Check Valve and Pipe on Cadillac Catera?
A:
Replacing the secondary air injection (AIR) check valve and pipe begins with disassembly of the air hoses combined with the removal of the check valve and the center air pipe and subsequent detachment of the upper Exhaust Manifold heat shield. The bolt unfastening of the air pipe must be followed by its separation from the Exhaust Manifold through air pipe bank 1 and air pipe bank 2 detachment. Install the new air pipes by placing their gaskets onto the surfaces and clean the Exhaust Manifold thoroughly to achieve proper sealing. The installation requires gm p/n 5613695 anti-seize compound or equivalent on the air pipe nipple to manifold and the bolts along with the air check valve. Apply the Exhaust Manifold bolts to new air pipes of air pipe bank 1 and air pipe bank 2 until the torque reaches 20 n.m (15 lb ft). Begin with reattaching both upper Exhaust Manifold heat shields and then install the center air pipe and the air check valve. Tighten the check valve to 30 n.m (22 lb ft). The completion includes attaching the air hoses while installing fuse clamps along with leakage verification checks.
