OEM Cadillac Catera Brake Booster

Cadillac Catera Brake Booster Parts Questions & Experts Answers

• Brake Booster

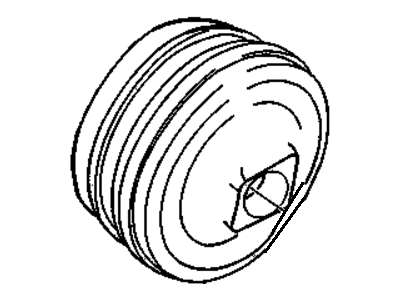

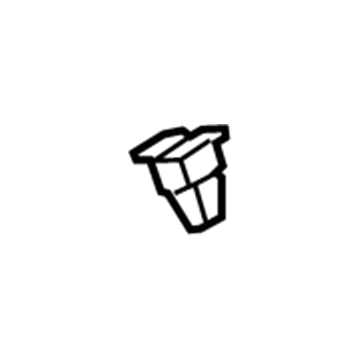

  9193870
  Q: How to replace the vacuum brake booster on Cadillac Catera?
