How to replace the Clutch Slave Cylinder on Cadillac CTS?

The main first step in clutch concentric actuator cylinder replacement requires transmission removal. Start by unplugging the concentric actuator cylinder quick connect bolt then removing the three concentric actuator cylinder bolts to take out the concentric actuator cylinder along with its o-ring . New o-ring installation precedes the process of inserting the concentric actuator cylinder. Vehicle damage can result from improper fastener handling during this procedure. The three concentric actuator cylinder bolts need to be tightened to 20 nm (15 lb ft) torque while the quick connect bolt requires 10 nm (89 lb in) torque. Finally, reinstall the transmission.

How to service and repair the Clutch Slave Cylinder on Cadillac Escalade?

You must remove the transmission to work on and repair the Clutch Slave Cylinder. Following this step, pull off the bolts attached to the concentric slave cylinder and extract the slave cylinder from the transmission input shaft. After, pull the bearing out of the slave cylinder. Installing the bearing onto the slave cylinder should be the first step, then attach the slave cylinder to the transmission input shaft, so that the coupling and bleed screw match the ports on the transmission. Following the fastener notice is necessary in service precautions. After that, place and tighten the two bolts that connect the concentric slave cylinder to the shaft on the clutch housing to 8 nm (71 inch lbs.). The last step is to replace the transmission.

OEM Cadillac Clutch Slave Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Clutch Slave Cylinders found

View related parts

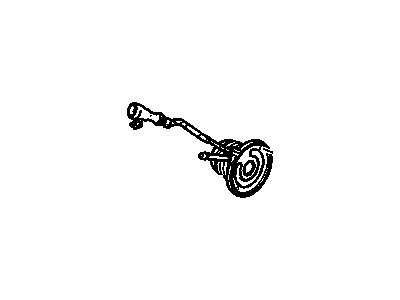

Cadillac Slave Cylinder Part Number: 20958083
$180.70 MSRP: $284.32
You Save: $103.62 (37%)
ADD TO CART
Product Specifications
- Other Name: Cylinder, Clutch Hydraulic Release Slave/Actuator; Clutch Slave Cylinder
Fits the following Cadillac Models:
- Escalade | 2006 | Base | 8 Cyl 6.0 L GAS
- Escalade ESV | 2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts

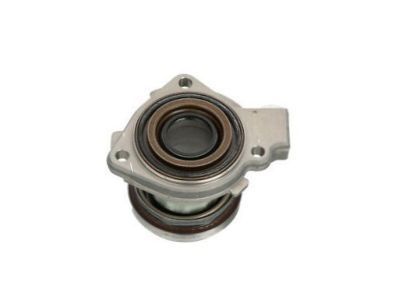

Cadillac Slave Cylinder Part Number: 24272789
$205.87 MSRP: $353.57
You Save: $147.70 (42%)
ADD TO CART
Product Specifications
- Other Name: Cylinder, Clutch Hydraulic Release Slave/Actuator; Clutch Slave Cylinder; Release Bearing Assembly
- Replaces: 24251196
Fits the following Cadillac Models:
- ATS | 2013-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

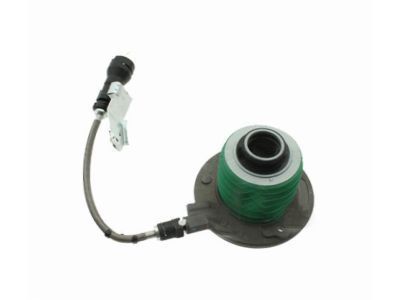

Cadillac Slave Cylinder Part Number: 24264182
$163.71 MSRP: $278.73
You Save: $115.02 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 15018532, 15727249, 15998501, 12565145, 15046288, 15742944
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 24264181
$220.74 MSRP: $347.33
You Save: $126.59 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 12573664, 24235621
Fits the following Cadillac Models:
- Escalade | 2003-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2003-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Slave Cylinder Part Number: 24264179
$120.39 MSRP: $189.42
You Save: $69.03 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 15027982, 12574147, 15060929
Fits the following Cadillac Models:
- Escalade | 2002 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002 | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 25695299
$242.15 MSRP: $424.81
You Save: $182.66 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
Fits the following Cadillac Models:
- CTS | 2003-2004 | Base, Luxury, Luxury Sport | 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 24281247
$378.36 MSRP: $595.11
You Save: $216.75 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Assembly, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 12587376
Fits the following Cadillac Models:
- CTS | 2004-2007 | V | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 24279812
$335.30 MSRP: $527.47
You Save: $192.17 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 24265745, 24274085
Fits the following Cadillac Models:
- CT4 | 2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2022 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 24242161
$262.79 MSRP: $413.50
You Save: $150.71 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Clutch Hydraulic Release Slave/Actuator; Clutch Slave Cylinder
Fits the following Cadillac Models:
- CTS | 2005-2011 | Base, Luxury, Performance, Premium, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac Slave Cylinder Part Number: 15019756
Product Specifications
- Other Name: Cylinder, Clutch Hydraulic Release Slave/Actuator; Clutch Slave Cylinder
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Slave Cylinder Part Number: 24281248
$275.49 MSRP: $433.47
You Save: $157.98 (37%)
Product Specifications
- Other Name: Cylinder Assembly, Clutch Actuator; Clutch Slave Cylinder; Cylinder, Clutch Hydraulic Release Slave/Actuator
- Replaces: 24238684
Fits the following Cadillac Models:
- CTS | 2015, 2009-2010 | V | 8 Cyl 6.2 L GAS

Cadillac Clutch Slave Cylinder

Choose OEM Clutch Slave Cylinder, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsGiant.com, you'll find it easy to get top-quality OEM Cadillac Clutch Slave Cylinder. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Clutch Slave Cylinder Parts and Q&A

Slave Cylinder
24281248
Q: How to replace the Clutch Slave Cylinder on Cadillac CTS?
A:
The main first step in clutch concentric actuator cylinder replacement requires transmission removal. Start by unplugging the concentric actuator cylinder quick connect bolt then removing the three concentric actuator cylinder bolts to take out the concentric actuator cylinder along with its o-ring . New o-ring installation precedes the process of inserting the concentric actuator cylinder. Vehicle damage can result from improper fastener handling during this procedure. The three concentric actuator cylinder bolts need to be tightened to 20 nm (15 lb ft) torque while the quick connect bolt requires 10 nm (89 lb in) torque. Finally, reinstall the transmission.
Slave Cylinder
24264182
Q: How to service and repair the Clutch Slave Cylinder on Cadillac Escalade?
A:
You must remove the transmission to work on and repair the Clutch Slave Cylinder. Following this step, pull off the bolts attached to the concentric slave cylinder and extract the slave cylinder from the transmission input shaft. After, pull the bearing out of the slave cylinder. Installing the bearing onto the slave cylinder should be the first step, then attach the slave cylinder to the transmission input shaft, so that the coupling and bleed screw match the ports on the transmission. Following the fastener notice is necessary in service precautions. After that, place and tighten the two bolts that connect the concentric slave cylinder to the shaft on the clutch housing to 8 nm (71 inch lbs.). The last step is to replace the transmission.
