How to Replace the Front Rack and Pinion Steering Gear on Cadillac Eldorado?

When replacing the Rack And Pinion, make sure that the wheels of the vehicle are straight and the Steering Column being in the lock position to avoid the damage of the coil assembly. First, raise and support the vehicle, and expulse the tire and the wheel, then the road sensing suspension position sensor. Remove the outer tie rod ends from the steering knuckles, detach the lower pinch bolt holding the intermediate shaft to the Rack And Pinion and retrieve the intermediate shaft. Next, you need to remove your slides off the side of the Rack And Pinion and remove the Rack And Pinion heat shield and disconnect variable effort steering machinery connector with electrical harness clips from the Rack And Pinion. Remove the retaining clip of the power steering pressure hose and lift the rear of the frame using a screw jack prior to removing the power steering pressure and return hoses. Take the frame rear body mount bolts and slowly bring down the rear of the frame. Firstly, install a drain pan under the vehicle and unbolt the Rack And Pinion mounting bolt (1, 2, 3, 4, and 5) to pull out the Rack And Pinion through the left-side wheel opening. For installation, you must attach the outer tie rod ends and install Rack And Pinion mounting bolts to 68 nm (50 ft. Lbs) in a sequential order. Replace the two hose connectors to 27 nm (20 ft. Lbs.) and lift up the back of frame to mount the frame rear body mounting bolts at 191 nm (141 ft. Lbs.). Renew power steering pressure hose retaining clip, electrical harness clips, and variable effort steering electrical connector and install the plastics line retainers and Rack And Pinion heat shield. Install the outer tie rod ends to the steering knuckles, then attach the intermediate shaft to the Rack And Pinion tightening the lower pinch bolt to 47 nm (35 ft. Lbs.). Lastly, reinstall road sensing suspension position sensor, tires as well as the wheels, lower the vehicle, bleeding of the power steering, and adjust front toe.

OEM Cadillac Eldorado Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Rack And Pinions found

View related parts

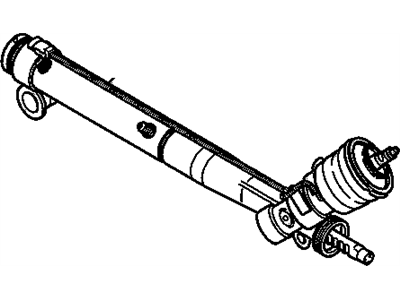

Cadillac Eldorado Steering Gear Part Number: 26024902
$124.95 MSRP: $178.79
You Save: $53.84 (31%)
ADD TO CART
Product Specifications
- Other Name: Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26024900
$164.23 MSRP: $210.41
You Save: $46.18 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991, 1986-1989 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Worm Gear Part Number: 7817526
Product Specifications
- Other Name: Rack-Piston Nut Kit-Hydraulic Steering Gear; Steering Rack; Rack & Pinion Steering Gear; Input Shaft, Worm & Ball, Worm Shaft, Rack Assembly, Rack Package, Worm Assembly, Piston.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Gear Assembly Part Number: 26045890
Product Specifications
- Other Name: Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992 Cadillac Eldorado | Base, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26045885
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1990 Cadillac Eldorado | Base, Biarritz, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26077017
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Steering Gear Assembly; Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2002 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26064118
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Steering Gear Assembly; Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26047066
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996 Cadillac Eldorado | Base, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26045894
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac Eldorado | Base, ETC, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26045893
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Cadillac Eldorado | Base, Sport, Touring | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Gear Assembly Part Number: 26045882
Product Specifications
- Other Name: Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992 Cadillac Eldorado | Base, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26042766
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly; Steering Gear Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1999 Cadillac Eldorado | Base, ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 26042745
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996 Cadillac Eldorado | Base, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Steering Gear Part Number: 19330439
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Steering Gear Assembly; Gear Kit, Steering
- Replaces: 26077019
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2002 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS

Cadillac Eldorado Rack And Pinion

Want to cut long-term maintenance and repair costs? Choose OEM Rack And Pinion. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Eldorado parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Eldorado Rack And Pinion includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Rack And Pinion in Cadillac Eldorado automobiles is a vital mechanism in the steering and is responsible for the actuation of lateral movements of the forward wheels starting from the rotational movement of the steering wheel. This mechanism commonly uses rack and pinion system of where the pinion frustrated within a tube containing the rack gear to enable the adjustment of the steering. Previous Cadillac Eldorado models have come fitted with manual as well as power rack and pinion steering. Despite the fact that previous designs included manual racks typical contemporary designs primarily employ HPAP which improves the angling, ease and sensitivity. The hydraulic system works with high-pressure fluid controlled by a rotary valve; its assist depends on the steering wheel rotation. The Rack And Pinion is another assembly that exhibits some frequent problems with leakage of the fluid at the seals or hoses since they are worn out; this causes stiffness of the vehicles' steering system and possibly may cause damages. Another which affects the quality of the rack and pinion gears is wear which makes the steering wheel to develop loose play and hence the assembly would need to be replaced for the premier performance.

Cadillac Eldorado Rack And Pinion Parts and Q&A

Steering Gear
19330439
Q: How to Replace the Front Rack and Pinion Steering Gear on Cadillac Eldorado?
A:
When replacing the Rack And Pinion, make sure that the wheels of the vehicle are straight and the Steering Column being in the lock position to avoid the damage of the coil assembly. First, raise and support the vehicle, and expulse the tire and the wheel, then the road sensing suspension position sensor. Remove the outer tie rod ends from the Steering Knuckles, detach the lower pinch bolt holding the intermediate shaft to the Rack And Pinion and retrieve the intermediate shaft. Next, you need to remove your slides off the side of the Rack And Pinion and remove the Rack And Pinion heat shield and disconnect variable effort steering machinery connector with electrical harness clips from the Rack And Pinion. Remove the retaining clip of the power steering pressure hose and lift the rear of the frame using a screw jack prior to removing the power steering pressure and return hoses. Take the frame rear body mount bolts and slowly bring down the rear of the frame. Firstly, install a drain pan under the vehicle and unbolt the Rack And Pinion mounting bolt (1, 2, 3, 4, and 5) to pull out the Rack And Pinion through the left-side wheel opening. For installation, you must attach the outer tie rod ends and install Rack And Pinion mounting bolts to 68 nm (50 ft. Lbs) in a sequential order. Replace the two hose connectors to 27 nm (20 ft. Lbs.) and lift up the back of frame to mount the frame rear body mounting bolts at 191 nm (141 ft. Lbs.). Renew power steering pressure hose retaining clip, electrical harness clips, and variable effort steering electrical connector and install the plastics line retainers and Rack And Pinion heat shield. Install the outer tie rod ends to the steering knuckles, then attach the intermediate shaft to the Rack And Pinion tightening the lower pinch bolt to 47 nm (35 ft. Lbs.). Lastly, reinstall road sensing suspension position sensor, tires as well as the wheels, lower the vehicle, bleeding of the power steering, and adjust front toe.
