How to replace the exhaust heat shield for the center bearing on Cadillac CTS?

The first step to replace the Exhaust Heat Shield for the center bearing involves lifting and supporting the vehicle. Begin by removing the bolts which keep the center bearing heat shield connected to its position on the center bearing. The heat shield requires tilting in each direction to allow removing it between the body and drive shaft center bearing and exhaust pipes before complete vehicle removal. The new heat shield installation requires placement between the body and drive shaft center bearing along with the resonator while matching the heat shield holes with the center bearing holes. You should attach the bolts which secure the center bearing heat shield while tightening them to 8 n.m (71 lb in) before lowering the vehicle.

How to replace the exhaust heat shield on the dash panel on Cadillac Escalade?

Start by supporting the vehicle while raising it before beginning to change the Exhaust Heat Shield on the dash panel. And remove the shield from the vehicle by disconnecting the engine shield bolts. A technician must uninstall the bolts and skid plate of the oil pan skid plate from 1500 series vehicles. After loosening the 2 rear oil pan skid plate bolts of 2500 series vehicles it is necessary to remove the 2 front oil pan skid plate bolts and the skid plate. The Catalytic Converter must be taken off if needed. Proceed to uninstall dash panel Exhaust Heat Shield nuts (2 or 4) before removing dash panel Exhaust Heat Shield (1 or 3) from its dash panel studs. You should fix the dash panel Exhaust Heat Shield (1 or 3) to the dash panel studs before securing it with dash panel Exhaust Heat Shield nuts (2 or 4) using a torque of 9 n.m (80 lb in). Restoration of the Catalytic Converter should only take place in case of need. Installation of the oil pan skid plate includes positioning the front bolts (2) which require a 28 n.m (21 lb ft) torque specification on 2500 series vehicles but they may omit front bolts on other models unless necessary. The 1500 series vehicle requires positioning of the oil pan skid plate before installing the slidable oil pan skid plate bolts according to a torque of 28 n.m (21 lb ft) if they are installed. Place the engine shield to the frame before securing and tightening all engine shield bolts to 20 n.m (15 lb ft). Finally, lower the vehicle.

How to Replace an Exhaust Heat Shield on Cadillac XLR?

In order to change the exhaust heat shield, disconnect the intermediate pipe first. Continuing, drill the exhaust heat shield rivets out and remove the exhaust heat shield. To install, affix the new exhaust heat shield and attach it with new exhaust heat shield rivets and reinstall the intermediate pipe.

OEM Cadillac Exhaust Heat Shield

Heat Shield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

130 Exhaust Heat Shields found

View related parts

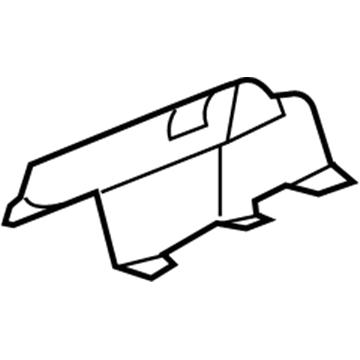

Cadillac Heat Shield
Part Number: 22869576
$14.45 MSRP: $21.51
You Save: $7.06 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Tail Pipe; Exhaust Heat Shield
- Replaces: 15814468, 15740776
Fits the following Cadillac Models:
- Escalade | 2007-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

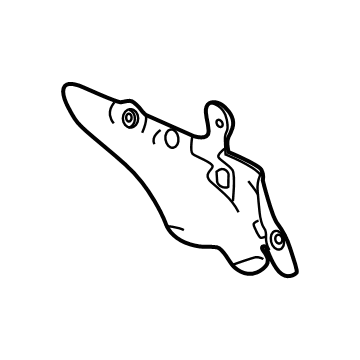

Cadillac Heat Shield
Part Number: 84687184
$31.26 MSRP: $46.52
You Save: $15.26 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Tail Pipe; Exhaust Heat Shield
- Position: Rear
Fits the following Cadillac Models:
- Escalade | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts

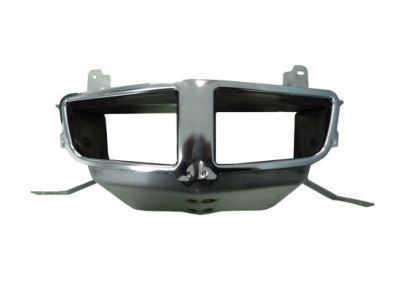

Cadillac Heat Shield, Driver Side
Part Number: 12666097
$174.50 MSRP: $260.84
You Save: $86.34 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Position: Driver Side
Fits the following Cadillac Models:
- CTS | 2016-2019 | V | 8 Cyl 6.2 L GAS
View related parts

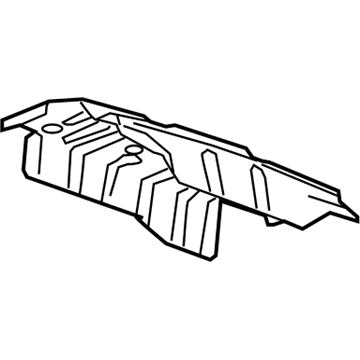

Cadillac Heat Shield
Part Number: 23266995
$136.29 MSRP: $203.72
You Save: $67.43 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Tail Pipe; Exhaust Heat Shield
- Position: Rear
- Replaces: 22761471, 23459567
Fits the following Cadillac Models:
- CTS | 2014-2019 | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

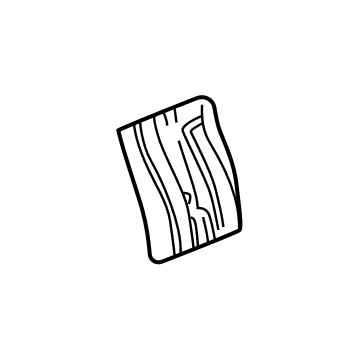

Cadillac Heat Shield, Rear
Part Number: 23140791
$144.56 MSRP: $216.08
You Save: $71.52 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield Assembly-Rear Body Exhaust Heat; Exhaust Heat Shield; Shield, Exhaust Tail Pipe
- Position: Rear
- Replaces: 20996599
Fits the following Cadillac Models:
- ATS | 2013-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

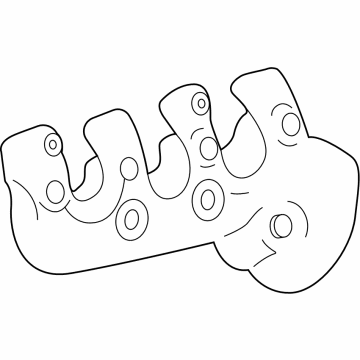

Cadillac Heat Shield, Passenger Side
Part Number: 87818135
$177.73 MSRP: $265.66
You Save: $87.93 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Pipe
- Position: Passenger Side
- Replaces: 84722887
Fits the following Cadillac Models:
- CT4 | 2022-2024 | V Blackwing | 6 Cyl 3.6 L GAS
- CT5 | 2020-2024 | Premium Luxury, V, V Blackwing | 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
View related parts

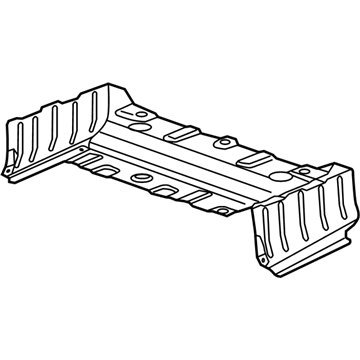

Cadillac Converter Shield, Passenger Side
Part Number: 12681012
$19.00 MSRP: $28.28
You Save: $9.28 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Shield, Exhaust Manifold
- Position: Passenger Side
Fits the following Cadillac Models:
- CT5 | 2022-2024 | V Blackwing | 8 Cyl 6.2 L GAS
View related parts

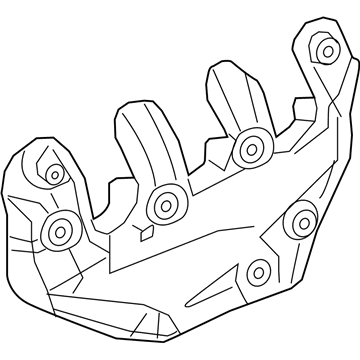

Cadillac Heat Shield
Part Number: 84408098
$62.10 MSRP: $92.41
You Save: $30.31 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Tail Pipe; Exhaust Heat Shield
Fits the following Cadillac Models:
- XT4 | 2019-2024 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS
View related parts
Cadillac Heat Shield, Passenger Side
Part Number: 12690817
$50.75 MSRP: $75.52
You Save: $24.77 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Passenger Side
Fits the following Cadillac Models:
- Escalade | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
- Escalade ESV | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Heat Shield
Part Number: 84685549
$35.96 MSRP: $53.52
You Save: $17.56 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Pipe; Exhaust Heat Shield
- Replaced by: 86788519
Fits the following Cadillac Models:
- Escalade | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
- Escalade ESV | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts
Cadillac Heat Shield
Part Number: 84922425
$6.28 MSRP: $9.36
You Save: $3.08 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Exhaust Underbody Heat; Exhaust Heat Shield; Shield, Exhaust Tail Pipe
Fits the following Cadillac Models:
- CT5 | 2022-2024 | V Blackwing | 8 Cyl 6.2 L GAS
View related parts
Cadillac Converter Heat Shield
Part Number: 12681027
$22.58 MSRP: $35.34
You Save: $12.76 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Catalytic Converter; Engine Control Module; ECM
- Replaces: 12670041, 12675737
Fits the following Cadillac Models:
- XTS | 2014 | Vsport Platinum, Vsport Premium | 6 Cyl 3.6 L GAS
View related parts
Cadillac Heat Shield, Passenger Side
Part Number: 12645490
$15.12 MSRP: $22.49
You Save: $7.37 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Manifold; Exhaust Heat Shield
- Position: Passenger Side
Fits the following Cadillac Models:
- CTS | 2016-2019 | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Heat Shield
Part Number: 84043781
$29.23 MSRP: $43.49
You Save: $14.26 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Catalytic Converter; Exhaust Heat Shield; Converter Shield
- Replaced by: 87860987
Fits the following Cadillac Models:
- XT5 | 2017-2023 | Base, Luxury, Platinum, Premium Luxury, Sport | 6 Cyl 3.6 L GAS
- XT6 | 2020-2024 | Premium Luxury, Sport | 6 Cyl 3.6 L GAS
View related parts
Cadillac Heat Shield, Passenger Side
Part Number: 23394152
$30.32 MSRP: $45.11
You Save: $14.79 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Pipe; Exhaust Heat Shield
- Position: Passenger Side
Fits the following Cadillac Models:
- CT6 | 2017-2018 | Plug-In | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Cadillac Heat Shield, Passenger Side
Part Number: 23187567
$60.41 MSRP: $89.89
You Save: $29.48 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield, Exhaust Tail Pipe; Exhaust Heat Shield
- Position: Passenger Side
- Replaces: 22898711
Fits the following Cadillac Models:
- XTS | 2013-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury, Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Heat Shield, Passenger Side
Part Number: 12629340
$45.70 MSRP: $68.01
You Save: $22.31 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Passenger Side
Fits the following Cadillac Models:
- Escalade | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Heat Shield
Part Number: 23240530
$6.54 MSRP: $9.73
You Save: $3.19 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shield-Exhaust Interior Underbody Heat; Exhaust Heat Shield; Shield, Exhaust Tail Pipe
Fits the following Cadillac Models:
- CT6 | 2016-2020 | Base, Luxury, Platinum, Plug-In, Premium Luxury, Sport, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 4.2 L GAS
View related parts
Cadillac Extension
Part Number: 25824427
$270.51 MSRP: $404.35
You Save: $133.84 (34%)
Product Specifications
- Other Name: Shield-Exhaust Heat; Shield, Exhaust Manifold
Fits the following Cadillac Models:
- CTS | 2011-2014 | Base, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac Shield
Part Number: 25958766
$149.70 MSRP: $223.76
You Save: $74.06 (34%)
Product Specifications
- Other Name: Shield, Exhaust Manifold
Fits the following Cadillac Models:
- CTS | 2011-2015 | V | 8 Cyl 6.2 L GAS

| Page 1 of 7 |Next >

1-20 of 130 Results

Cadillac Exhaust Heat Shield Parts Questions & Experts Answers

Heat Shield, Driver Side
12578032
Q: How to replace the exhaust heat shield for the center bearing on Cadillac CTS?
A: The first step to replace the Exhaust Heat Shield for the center bearing involves lifting and supporting the vehicle. Begin by removing the bolts which keep the center bearing heat shield connected to its position on the center bearing. The heat shield requires tilting in each direction to allow removing it between the body and drive shaft center bearing and exhaust pipes before complete vehicle removal. The new heat shield installation requires placement between the body and drive shaft center bearing along with the resonator while matching the heat shield holes with the center bearing holes. You should attach the bolts which secure the center bearing heat shield while tightening them to 8 n.m (71 lb in) before lowering the vehicle.
Heat Shield, Passenger Side
12677664
Q: How to replace the exhaust heat shield on the dash panel on Cadillac Escalade?
A: Start by supporting the vehicle while raising it before beginning to change the Exhaust Heat Shield on the dash panel. And remove the shield from the vehicle by disconnecting the engine shield bolts. A technician must uninstall the bolts and skid plate of the oil pan skid plate from 1500 series vehicles. After loosening the 2 rear oil pan skid plate bolts of 2500 series vehicles it is necessary to remove the 2 front oil pan skid plate bolts and the skid plate. The Catalytic Converter must be taken off if needed. Proceed to uninstall dash panel Exhaust Heat Shield nuts (2 or 4) before removing dash panel Exhaust Heat Shield (1 or 3) from its dash panel studs. You should fix the dash panel Exhaust Heat Shield (1 or 3) to the dash panel studs before securing it with dash panel Exhaust Heat Shield nuts (2 or 4) using a torque of 9 n.m (80 lb in). Restoration of the Catalytic Converter should only take place in case of need. Installation of the oil pan skid plate includes positioning the front bolts (2) which require a 28 n.m (21 lb ft) torque specification on 2500 series vehicles but they may omit front bolts on other models unless necessary. The 1500 series vehicle requires positioning of the oil pan skid plate before installing the slidable oil pan skid plate bolts according to a torque of 28 n.m (21 lb ft) if they are installed. Place the engine shield to the frame before securing and tightening all engine shield bolts to 20 n.m (15 lb ft). Finally, lower the vehicle.
Heat Shield
10439697
Q: How to Replace an Exhaust Heat Shield on Cadillac XLR?
A: In order to change the exhaust heat shield, disconnect the intermediate pipe first. Continuing, drill the exhaust heat shield rivets out and remove the exhaust heat shield. To install, affix the new exhaust heat shield and attach it with new exhaust heat shield rivets and reinstall the intermediate pipe.
