How to replace the Air Bag Clockspring in the steering wheel module on Cadillac Seville?

To remove the coil from the inflatable restraint steering wheel module, first disable the sir system and second remove the inflatable restraint steering wheel modules. Remove steering wheel nut recording the Steering Shaft and steering wheel alignment mark in order. After that, remove steering wheel off the shaft by holding and pulling the tilt lever straight outward, remove the tilt lever assembly. Then take out 2 screws with torx(R) head from the lower shroud and remove the lower shroud. And remove two torx(R) head screw from the upper shroud and remove the upper shroud. Unfasten the wire harness straps from the column on the steering wheel harness and take the retaining ring off and the air bag clock spring from the Steering Shaft. For installation, wheel should be straight ahead and align block tooth and centering mark on the race and upper shaft assembly at 12 o'clock. A new sir coil assembly will be pre centered. Check its centering and do what the notice says if the centering is necessary. Mount the sir coil assembly against the horn tower at the turn signal cancel cam assembly, mount wave washer to upper shaft assembly, then slide the coil assembly onto the race and upper shaft assembly. Take out and throw away the centering tab and then replace it with a retaining ring in the company of thoroughly seating it in place. Install upper shroud using two torx(R) head screws and tighten to 1.5 n.m (13 lb in). Install two torx (R) head screws to attach the lower shroud before the tabs make contact with the upper shroud, then tighten to 1.5 n.m (13 lb in). Reposition and slide the tilt lever out into the steering column until it clicks to lock it and then thread the wiring through the steering wheel. Position the steering wheel in line with the mark on the Steering Shaft and bolt it in place with a tight nut 41 n.m (30 lb ft). Finally, you should install the inflatable restraint steering wheel module and turn on the sir system.

OEM Cadillac Seville Air Bag Clockspring

Steering Wheel Airbag Coil

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Air Bag Clocksprings found

View related parts

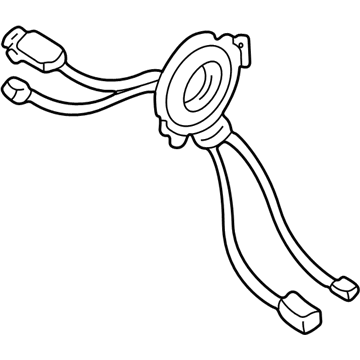

Cadillac Seville Clockspring Part Number: 26087297
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26070134, 26070135
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Cadillac Seville | SLS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26087277
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26063964, 26049191, 26065908
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Cadillac Seville | SLS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Coil Assembly Part Number: 26041005
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil; Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26053264
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Air Bag Module Part Number: 26013854
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Assembly; Clockspring; Coil Kit, Inflatable Restraint System; Front Door Trim
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1992 Cadillac Seville | Base, STS | 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26087308
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Cadillac Seville | SLS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26087304
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26087283
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26061960
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26087281
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26070117, 26053004
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26051659
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Cadillac Seville | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Seville Clockspring Part Number: 26046083
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26024818, 26039628
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Cadillac Seville | Base, STS | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS

Cadillac Seville Air Bag Clockspring

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Clockspring. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Seville parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Seville Air Bag Clockspring includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Air Bag Clockspring is always part of the Supplemental Restraint System (SRS) to guarantee safe and efficient performance of Cadillac Seville cars in cases of impact. This component is critical in providing electrical connections between the airbag module and the vehicle's electrical network; ensuring airbags should discharge as required. Manufactured for performance, the Air Bag Clockspring is built using metals and plastics; seen here is progress in design that sought improvement on the reliability. Its applicability to various Cadillac Seville models that were manufactured in 1975- 2004 stresses its importance in the automotive industry because CADDY modifies its components to correspond with developing outlines and safety requirements of different versions. The Cadillac Seville is one of those spectacular automobiles, developed with numerous luxurious and improved engineering characteristics, in which the Air Bag Clockspring greatly contributes to increasing performance and protection improvements. Well loved features of Air Bag Clockspring are the durability of the product that it will not easily wear out despite the constant use of the car and the most importantly it does not compromise the quality of the airbag. Remarkably, as Cadillac progresses into manufacturing advanced models, the Seville Air Bag Clockspring will always be seen as a benchmark from Cadillac to enhance passenger safety and performance in the automotive industry. Since it is directly linked to the SRS or Supreme Retriever System, the Air Bag Clockspring is a must-have among Cadillac Seville automobile owners who would never compromise the safety and dependability of their cars.

Cadillac Seville Air Bag Clockspring Parts Questions & Experts Answers

Clockspring
26087283
Q: How to replace the Air Bag Clockspring in the steering wheel module on Cadillac Seville?
A:
To remove the coil from the inflatable restraint steering wheel module, first disable the sir system and second remove the inflatable restraint steering wheel modules. Remove steering wheel nut recording the Steering Shaft and steering wheel alignment mark in order. After that, remove steering wheel off the shaft by holding and pulling the tilt lever straight outward, remove the tilt lever assembly. Then take out 2 screws with torx(R) head from the lower shroud and remove the lower shroud. And remove two torx(R) head screw from the upper shroud and remove the upper shroud. Unfasten the wire harness straps from the column on the steering wheel harness and take the retaining ring off and the air bag clock spring from the Steering Shaft. For installation, wheel should be straight ahead and align block tooth and centering mark on the race and upper shaft assembly at 12 o'clock. A new sir coil assembly will be pre centered. Check its centering and do what the notice says if the centering is necessary. Mount the sir coil assembly against the horn tower at the turn signal cancel cam assembly, mount wave washer to upper shaft assembly, then slide the coil assembly onto the race and upper shaft assembly. Take out and throw away the centering tab and then replace it with a retaining ring in the company of thoroughly seating it in place. Install upper shroud using two torx(R) head screws and tighten to 1.5 n.m (13 lb in). Install two torx (R) head screws to attach the lower shroud before the tabs make contact with the upper shroud, then tighten to 1.5 n.m (13 lb in). Reposition and slide the tilt lever out into the steering column until it clicks to lock it and then thread the wiring through the steering wheel. Position the steering wheel in line with the mark on the Steering Shaft and bolt it in place with a tight nut 41 n.m (30 lb ft). Finally, you should install the inflatable restraint steering wheel module and turn on the sir system.
