How to replace the front sway bar bushing on Cadillac SRX?

The procedure of Sway Bar Bushing replacement for 2004-2006 cadillac srx vehicles begins with vehicle lifting and tire wheel removal followed by Sway Bar Link separation from sway bar assembly and sway bar bracket bolt removal. The Sway Bar Link should be separated from the bar by taking off its retaining nut and link. Break down the sway bar bracket through bolting out the mounting bolts and proceed to uninstall the Sway Bar Bushing. Left-hand bushings should be put on sway bars with their slit opening toward the back while right-hand bushings face forward. To finish the operation you must follow the fastener notice instructions when reinstalling the sway bar bracket and tighten its mounting bolts to 110 n.m (81 lb ft). Secure the Sway Bar Link to the sway bar by attaching the retaining nut which requires tightening to 115 n.m (95 lb ft). Carry out the final step by installing tires and wheels before continuing with the vehicle lower-down process.

OEM Cadillac SRX Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Sway Bar Bushings found

View related parts

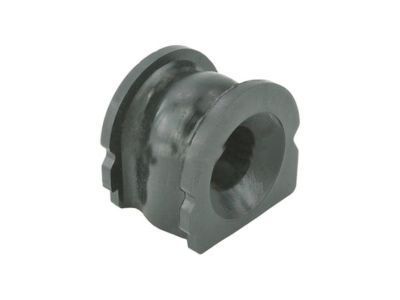

Cadillac SRX Stabilizer Bar Bushing Part Number: 25758596
$8.57 MSRP: $14.12
You Save: $5.55 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts

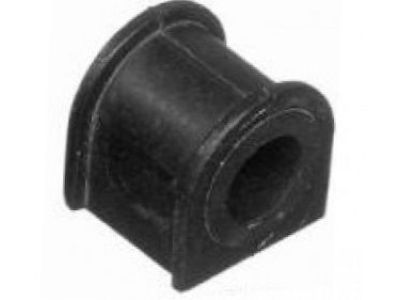

Cadillac SRX Stabilizer Bar Bushing Part Number: 25759231
$12.60 MSRP: $21.93
You Save: $9.33 (43%)
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Stabilizer Bar Bushing, Rear Part Number: 15873716
$9.16 MSRP: $16.34
You Save: $7.18 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator-Rear Stabilizer Shaft; Sway Bar Bushing; Bushings; Insulator, Stabilizer Shaft
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Stabilizer Bar Bushing Part Number: 22741853
$48.38 MSRP: $86.40
You Save: $38.02 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Suspension Stabilizer Bar Bushing Kit; Stabilizer Bushing Kit; Sway Bar Bushing; Bushings
- Position: Front
- Replaces: 20883213
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS
View related parts
Cadillac SRX Stabilizer Bar Bushing Part Number: 22741852
$48.38 MSRP: $86.40
You Save: $38.02 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Front
- Replaces: 20883212
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS
View related parts
Cadillac SRX Stabilizer Bar Bushing, Rear Part Number: 15945996
$23.46 MSRP: $41.91
You Save: $18.45 (45%)
ADD TO CART
Product Specifications
- Other Name: Insulator-Rear Stabilizer Shaft; Sway Bar Bushing; Bushings; Insulator, Stabilizer Shaft
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS

Cadillac SRX Sway Bar Bushing

Want to cut long-term maintenance and repair costs? Choose OEM Sway Bar Bushing. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Sway Bar Bushing includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac SRX Sway Bar Bushing is one of those subsystems that play a very important role to make Cadillac SRX cars more reliable and effective. Serving the dual purpose of excelling at road hollowness control as well as using noise reduction measures, the Sway Bar Bushing is a very important unit of the automobile. As for the sway bar also called stabilizer bar, these bushings contribute to the stabilizing of the car body during turns thus enhancing handling and safety. Useful for a number of Cadillac SRX units from two generations, the Sway Bar Bushing serves a vital function of preserving a perfect environment for driving. This is because negligence of worn out bushes may contribute to complaints like sluggish response or rattle that may hinder efficiency and safety of the vehicle. The Cadillac SRX is a mid-size luxury SUV which is noteworthy due to its eminent characteristic- the balance between rigidity and compliance- and its features that, together, made this model one of the most successful in the American market. The Sway Bar Bushing differs from others because of the high-quality production for its future use and possible length of its service. Effectively improving the performance and safety of Cadillac SRX, Cadillac SRX Sway Bar Bushing is a component that gives the driver the luxury and might that Caddy is famous for. All in all, it is agreed that Cadillac SRX Sway Bar Bushing belongs to the must-have tools for those Cadillac SRX owners who value reliability and performance as well as their own safety.

Cadillac SRX Sway Bar Bushing Parts Questions & Experts Answers

Stabilizer Bar Bushing
25759231
Q: How to replace the front sway bar bushing on Cadillac SRX?
A:
The procedure of Sway Bar Bushing replacement for 2004-2006 cadillac srx vehicles begins with vehicle lifting and tire wheel removal followed by Sway Bar Link separation from sway bar assembly and sway bar bracket bolt removal. The Sway Bar Link should be separated from the bar by taking off its retaining nut and link. Break down the sway bar bracket through bolting out the mounting bolts and proceed to uninstall the Sway Bar Bushing. Left-hand bushings should be put on sway bars with their slit opening toward the back while right-hand bushings face forward. To finish the operation you must follow the fastener notice instructions when reinstalling the sway bar bracket and tighten its mounting bolts to 110 n.m (81 lb ft). Secure the Sway Bar Link to the sway bar by attaching the retaining nut which requires tightening to 115 n.m (95 lb ft). Carry out the final step by installing tires and wheels before continuing with the vehicle lower-down process.
