How to Service and Repair the Automatic Transmission Filter on Cadillac XLR?

Your first step when servicing or repairing automatic transmission fluid and filter should be to raise and support the vehicle properly. You must set up a suitable drain pan under the transmission fluid Drain Plug before removing it to drain all fluid while you discard the plug. Perform a contamination and discoloration inspection of the transmission fluid as part of this coverage. A new Drain Plug needs installation after draining and it must tighten to 20 nm (15 ft. Lbs.). After dissolving the fluid pan bolts proceed by using a rubber mallet to gently tap the fluid pan for loosening. After gasket removal from the fluid pan users need to inspect all components for damage while cleaning both the magnet and pan along with bolts and gasket . Insert a long screwdriver to extract the fluid filter as you take off both fluid filter seals using the universal seal remover (J 23129) together with the slide hammer adapter (J 6125-1B). Attach two new fluid filter seals onto the transmission fluid filter neck with a small amount of transjel lubricant (J 36850) or petroleum jelly on them before installation. Fitting the transmission fluid filter into the case requires reusing the fluid pan gaskets only if they remain undamaged. Install the fluid pan and gasket jointly and fasten the fluid pan bolts to 11 nm (97 inch lbs.). Check the transmission fluid level to the recommended amount then lower the car and search for Oil Pan Gasket leaks.

OEM Cadillac XLR Automatic Transmission Filter

AT Filter

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Automatic Transmission Filters found

View related parts

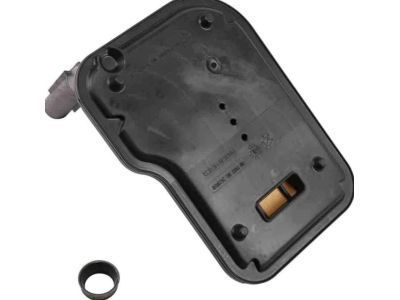

Cadillac XLR Filter Part Number: 96042795
$105.36
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter Kit, Automatic Transmission Fluid; Transmission Filter; Filter Kit, Transmission Oil Suction Tube
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Filter Part Number: 24236931
$35.59 MSRP: $63.57
You Save: $27.98 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter Kit, Automatic Transmission Fluid; Hydraulic Filter; Transmission Filter Kit.; Filter Kit, Transmission Oil Suction Tube
- Replaces: 24236929
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac XLR | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac XLR Filter Part Number: 24272473
$101.36 MSRP: $165.89
You Save: $64.53 (39%)
ADD TO CART
Product Specifications
- Other Name: Seal Kit, Automatic Transmission Service; Transmission Filter
- Replaced by: 24054654
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Cadillac XLR | V | 8 Cyl 4.4 L GAS

Cadillac XLR Automatic Transmission Filter

Want to cut long-term maintenance and repair costs? Choose OEM Automatic Transmission Filter. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Automatic Transmission Filter includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Automatic Transmission Filter is one of the keys parts that prove the dependability and efficiency of the Cadillac XLR line of automobiles which was built between the years 2003 to 2009. This filter is very important in the transmission system since it acts as a trap to any particle which in one way or the other may pose some harm to the whole system and may to an extent restrict the working of the system. The Automatic Transmission Filter helps to maintain purity of the transmission fluid that makes it increase the ability of lubricating, cooling, and generating hydraulic power to meet the required demands. Suitable for Cadillac XLR model year 2004-2009 this filter can be inserted internally and externally which makes filter replacement and maintenance easier as well boosts filter efficiency. High flow performance transmission filters are also used in Cadillac XLR, which enhance the performance of the car, improves the fuel economy and has a longer service life. The Automatic Transmission Filter plays a crucial role in the performance of that car, and maintaining it is extremely important to avoid expensive surgeries and promote the vehicle's performance and reliability. Specifically, the Cadillac XLR stands out for its luxurious aspects such as the electrohydraulically operated folding roof or Magnetic Ride Control; thus, the utilization of the Automatic Transmission Filter is even more valuable to maintain Cadillac XLR's high-performance attributes. The Automatic Transmission Filter is another distinguished product in the car market due to the distinctive design and engineering employed in the XLR Automatic Transmission Filter that rigidifies the Cadillac XLR as a picture of sporting comfort and maneuverability.

Cadillac XLR Automatic Transmission Filter Parts Questions & Experts Answers

Filter
96042795
Q: How to Service and Repair the Automatic Transmission Filter on Cadillac XLR?
A:
Your first step when servicing or repairing automatic transmission fluid and filter should be to raise and support the vehicle properly. You must set up a suitable drain pan under the transmission fluid Drain Plug before removing it to drain all fluid while you discard the plug. Perform a contamination and discoloration inspection of the transmission fluid as part of this coverage. A new Drain Plug needs installation after draining and it must tighten to 20 nm (15 ft. Lbs.). After dissolving the fluid pan bolts proceed by using a rubber mallet to gently tap the fluid pan for loosening. After gasket removal from the fluid pan users need to inspect all components for damage while cleaning both the magnet and pan along with bolts and gasket . Insert a long screwdriver to extract the fluid filter as you take off both fluid filter seals using the universal seal remover (J 23129) together with the slide hammer adapter (J 6125-1B). Attach two new fluid filter seals onto the transmission fluid filter neck with a small amount of transjel lubricant (J 36850) or petroleum jelly on them before installation. Fitting the transmission fluid filter into the case requires reusing the fluid pan gaskets only if they remain undamaged. Install the fluid pan and gasket jointly and fasten the fluid pan bolts to 11 nm (97 inch lbs.). Check the transmission fluid level to the recommended amount then lower the car and search for Oil Pan Gasket leaks.
