How to service the radiator cooling fan motor on Chevrolet Corvette?

The first step to service the radiator cooling Fan Motor is to lift and support the vehicle. First drop the front stabilizer shaft by removing its bolts before hanging the shaft downward. The radiator cooling fan service demands disconnecting the motor connectors first followed by disconnecting the wiring harness from the Fan Shroud then detaching the lower Radiator Hose. Start by removing the Fan Shroud from the radiator followed by taking off the fan from the motor and the Fan Motor from the shroud. Secure the Fan Motor to its shroud through screw tightening reaching 6 nm (53 inch lbs.). Afterward, install the fan into the motor while fastening it using a fan retaining nut set to 5.5 nm (49 inch lbs.). The technician reattaches the Fan Shroud to the radiator then plugs in the Fan Motor connectors while placing the wiring harness on the fan shrouds before moving to the next steps. Reposition the front stabilizer shaft to the crossmember before installing the front stabilizer insulator clamp bolts which need to be tightened to 58 nm (43 ft. Lbs.). Finally, lower the vehicle.

OEM Chevrolet Corvette Fan Motor

Cooling Fan Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Fan Motors found

View related parts

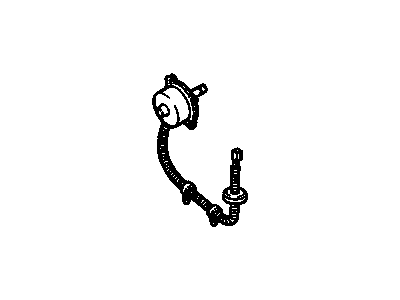

Chevrolet Corvette Fan & Motor
Part Number: 22137318
$91.86 MSRP: $188.78
You Save: $96.92 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Kit, Engine Air Cooling (Electrical); Fan Motor; Motor; Motor Kit, Engine Air Cooling(Electrical)
- Replaces: 22120616, 22081940, 22092353
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1989 Chevrolet Corvette | 35th Anniversary Edition, Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Fan Blade
Part Number: 22104439
$85.46 MSRP: $175.62
You Save: $90.16 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fan Motor; Radiator Fan Assembly; Motor; Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-2004 Chevrolet Corvette | 40th Anniversary Edition, 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Collector's Edition, Grand Sport, Indianapolis 500 Pace Car, Z06, ZR-1 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Fan & Motor
Part Number: 22074969
Product Specifications
- Other Name: Motor Assembly; Fan Motor; Motor; Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984 Chevrolet Corvette | Base | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Motor
Part Number: 10074158
Product Specifications
- Other Name: Clg Fan Mount; Motor Kit, Engine Air Cooling(Electrical)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1989 Chevrolet Corvette | 35th Anniversary Edition, Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS

Chevrolet Corvette Fan Motor

Our website offers an extensive catalog of genuine Chevrolet Corvette Fan Motor at unbeatable prices. Every OEM Chevrolet Corvette Fan Motor comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Corvette Fan Motor Parts Questions & Experts Answers

Fan Blade
22104439
Q: How to service the radiator cooling fan motor on Chevrolet Corvette?
A: The first step to service the radiator cooling Fan Motor is to lift and support the vehicle. First drop the front stabilizer shaft by removing its bolts before hanging the shaft downward. The radiator cooling fan service demands disconnecting the motor connectors first followed by disconnecting the wiring harness from the Fan Shroud then detaching the lower Radiator Hose. Start by removing the Fan Shroud from the radiator followed by taking off the fan from the motor and the Fan Motor from the shroud. Secure the Fan Motor to its shroud through screw tightening reaching 6 nm (53 inch lbs.). Afterward, install the fan into the motor while fastening it using a fan retaining nut set to 5.5 nm (49 inch lbs.). The technician reattaches the Fan Shroud to the radiator then plugs in the Fan Motor connectors while placing the wiring harness on the fan shrouds before moving to the next steps. Reposition the front stabilizer shaft to the crossmember before installing the front stabilizer insulator clamp bolts which need to be tightened to 58 nm (43 ft. Lbs.). Finally, lower the vehicle.
