OEM Chevrolet Prizm Variable Timing Sprocket

Chevrolet Prizm Variable Timing Sprocket Parts Questions & Experts Answers

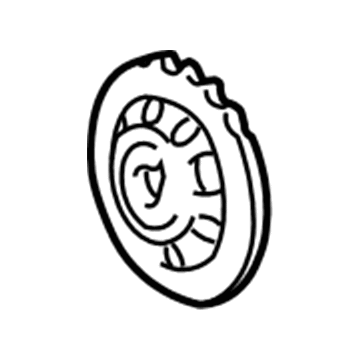

• Camshaft Gear
  94859219
  Q: How to install the timing chain and variable timing sprocket on Chevrolet Prizm?

  A: The installation of timing chain and sprockets begins with using a wrench to position the Camshaft timing marks while the wrench touches the hexagonal region of the camshafts. Begin by initializing the Camshaft rotation to bring the timing marks into proper position followed by moving the Crankshaft until its keyway points upwards. Leverage two bolts (1, 2) to fasten the timing chain shoe then tighten them to 10 nm (89 inch lbs.). Install the timing chain and Crankshaft timing sprocket before placing the timing chain onto the camshafts timing sprockets. Position the timing marks properly before moving forward. Affix the timing chain dampener using one bolt followed by a bolt torque of 18 nm (14 ft. Lbs.).
