How to replace the intermediate steering shaft on Chevrolet Venture?

The replacement of an intermediate Steering Shaft requires a straight steering wheel position alongside locked Steering Column because this prevents improper sir coil assembly alignment and damage during the process. Start by lifting up the vehicle before moving the intermediate Steering Shaft seal into place. Unfasten the lower pinch bolt from the power steering gear stub shaft and then remove the intermediate Steering Shaft. The knee bolster from the left side needs removal before lowering the vehicle. After moving the intermediate Steering Shaft seal into position you can access the upper pinch bolt to remove it and disconnect the intermediate Steering Shaft from the Steering Column. Position the intermediate Steering Shaft before installing the upper pinch bolt at the Steering Column using a torque of 48 nm (35 ft. Lbs.). Insert the intermediate Steering Shaft seal onto the Steering Column and reposition the vehicle while maintaining support. Then secure the intermediate Steering Shaft to the power steering gear stub shaft. The power steering gear stub shaft gets its lower pinch bolt installed after torquing it to 48 nm (35 ft. Lbs.). The intermediate Steering Shaft seal should then be mounted onto the power steering gear. Reinstall the left knee bolster after the vehicle has reached floor level.

OEM Chevrolet Venture Steering Shaft

Steering Stem Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Steering Shafts found

View related parts

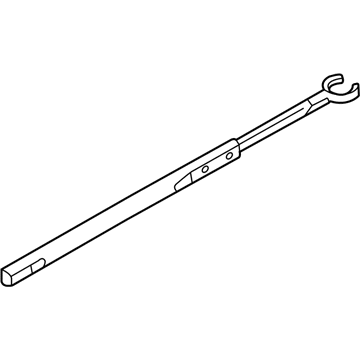

Chevrolet Venture Shaft Assembly Part Number: 26074286
$190.90 MSRP: $314.49
You Save: $123.59 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shaft, Steering Column; Steering Shaft; Upper Shaft; Shaft
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Venture Steering Shaft Part Number: 26064247
Product Specifications
- Other Name: Shaft, Steering Column; Shaft Assembly; Upper Shaft; Shaft
- Position: Upper
- Replaces: 26036514
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2001 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
View related parts

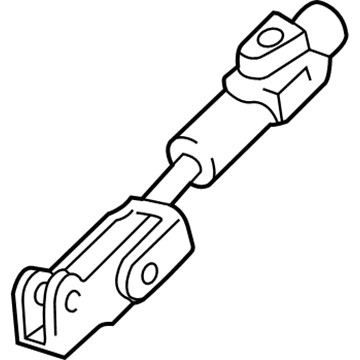

Chevrolet Venture Intermediate Shaft Part Number: 26063789
Product Specifications
- Other Name: Shaft Assembly, Intermediate Steering; Steering Shaft; Intermed Shaft; Shaft, Steering Column Intermediate
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2005 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Venture Lower Shaft Part Number: 26049702
Product Specifications
- Other Name: Shaft; Steering Shaft; Shaft, Steering Column
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2005 Chevrolet Venture | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS

Chevrolet Venture Steering Shaft

Want to cut long-term maintenance and repair costs? Choose OEM Steering Shaft. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Venture parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Venture Steering Shaft includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Steering Shaft is a key part and is a testimony to dependability and efficiency in the range of Chevrolet Venture that rolled out between the years, 1997 to 2005. Thus this final link is the transfer point between where the steering wheel input is converted to a precise and enhanced level of vehicular control for optimum efficiency and safety. There are Steering Shaft for intermediate, upper intermediate, lower steering shafts; all these parts are made of high-grade materials to offer long service. Maintenance of Steering Shaft is important as any signs that show challenge in the process of steering or any sounds that are peculiar. There were three trims of the Chevrolet Venture; Base, LS and LT which were created due to its high flexibility in the market. Some of the peculiarities include, among others, front-wheel drive system or eight-seat arrangement as an option in the Chevrolet Venture. The Steering Shaft also has a vital function to serve as a support to the steering to ensure the stability required for the vehicles safe use. Also, the Steering Shaft plays an important role in the architecture of the car, thus giving a perfect ride feel. Designing the Steering Shaft as a highly durable piece and integrating impressive features, this particular aspect of the Chevrolet Venture only adds to the vehicle's overall merit as a perfect family or personal car.

Chevrolet Venture Steering Shaft Parts and Q&A

Shaft Assembly
26074286
Q: How to replace the intermediate steering shaft on Chevrolet Venture?
A:
The replacement of an intermediate Steering Shaft requires a straight steering wheel position alongside locked Steering Column because this prevents improper sir coil assembly alignment and damage during the process. Start by lifting up the vehicle before moving the intermediate Steering Shaft seal into place. Unfasten the lower pinch bolt from the power steering gear stub shaft and then remove the intermediate Steering Shaft. The knee bolster from the left side needs removal before lowering the vehicle. After moving the intermediate Steering Shaft seal into position you can access the upper pinch bolt to remove it and disconnect the intermediate Steering Shaft from the Steering Column. Position the intermediate Steering Shaft before installing the upper pinch bolt at the Steering Column using a torque of 48 nm (35 ft. Lbs.). Insert the intermediate Steering Shaft seal onto the Steering Column and reposition the vehicle while maintaining support. Then secure the intermediate Steering Shaft to the power steering gear stub shaft. The power steering gear stub shaft gets its lower pinch bolt installed after torquing it to 48 nm (35 ft. Lbs.). The intermediate Steering Shaft seal should then be mounted onto the power steering gear. Reinstall the left knee bolster after the vehicle has reached floor level.
