How to replace the A/C Hose on GMC Envoy?

A refrigerant recovery process must occur before replacing the evaporator tube within trailblazer ext and envoy xl models. First disconnect the evaporator tube from both the evaporator along with the auxiliary evaporator tube from the secondary piping. The evaporator tube nuts must be removed from the condenser before you proceed with taking the evaporator tube away from the fender fixation points 1 and 2. Secondly remove both the washer solvent container along with the coolant recovery tank. You must use the orifice tube remover (J 26549-E) along with the evaporator tube to remove the component while disposing of the o-ring seal. After installing a new o-ring seal the technician should connect the evaporator tube to the evaporator while tightening the nut to 28 n.m (21 lb ft). Secure the auxiliary piping to the auxiliary evaporator tube with a nut torque at 28 n.m (21 lb ft), and proceed by connecting the evaporator tube to the condenser where a torque of 28 n.m (21 lb ft) should be applied to the nut securely. After reattaching the coolant recovery tank and washer solvent container the technician must tighten the nuts (1,2) which secure the evaporator tube to the fender at 28 n.m (21 lb ft). You must evacuate, recharge and test for leaks of the a/c system through its components by utilizing the halogen leak detector (J 39400-A).

OEM GMC Envoy A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 A/C Hoses found

View related parts

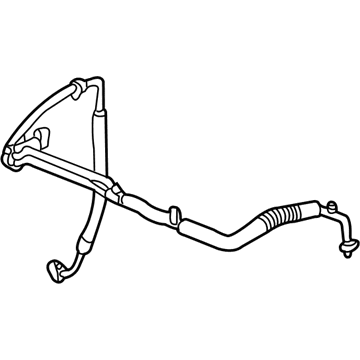

GMC Envoy Evaporator Tube
Part Number: 15923988
$106.37 MSRP: $218.58
You Save: $112.21 (52%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Tube Assembly-A/C Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Replaces: 15883408, 15125284
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 15165916
$174.05 MSRP: $308.35
You Save: $134.30 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: AC Hose; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 19432438
$244.02 MSRP: $444.47
You Save: $200.45 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 10378754, 15883021, 15276426, 15165305
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 GMC Envoy | Denali | 8 Cyl 5.3 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 19213200
$175.48 MSRP: $360.62
You Save: $185.14 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15092551
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 25841573
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Compressor & Condenser Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15884820, 15185275, 25815112
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2009 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 15185275
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly
- Replaced by: 25841573
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Evaporator Tube
Part Number: 15139726
Product Specifications
- Other Name: A/C Refrigerant Liquid Hose; A/C Hose
- Replaces: 15148465
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005 GMC Envoy | Denali | 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Evaporator Tube
Part Number: 15064837
Product Specifications
- Other Name: A/C Refrigerant Liquid Hose; A/C Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts

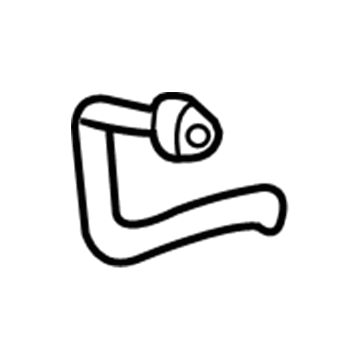

GMC Envoy Drain Tube
Part Number: 88986239
Product Specifications
- Other Name: Tube, Air Conditioner Evaporator Core Housing; Tube, A/C Evaporator Core Housing; Tube, Heater Core
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 GMC Envoy | Denali | 8 Cyl 5.3 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 15884821
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 15825061, 15185276
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy A/C Hoses
Part Number: 15883022
Product Specifications
- Other Name: Hose, Air Conditioner Compressor; A/C Refrigerant Liquid Hose; A/C Hose; Hose & Tube Assembly; Hose, A/C Compressor Suction And Discharge
- Replaces: 10378753, 15175349
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 GMC Envoy | Denali | 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Outlet Pipe
Part Number: 15139207
Product Specifications
- Other Name: Tube Assembly-Auxiliary A/C Compressor (W/ Auxiliary Heater Outlet P; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005 GMC Envoy | Denali | 8 Cyl 5.3 L GAS

GMC Envoy A/C Hose

Our website offers an extensive catalog of genuine GMC Envoy A/C Hose at unbeatable prices. Every OEM GMC Envoy A/C Hose comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

GMC Envoy A/C Hose Parts Questions & Experts Answers

A/C Hoses
19213200
Q: How to replace the A/C Hose on GMC Envoy?
A: A refrigerant recovery process must occur before replacing the evaporator tube within trailblazer ext and envoy xl models. First disconnect the evaporator tube from both the evaporator along with the auxiliary evaporator tube from the secondary piping. The evaporator tube nuts must be removed from the condenser before you proceed with taking the evaporator tube away from the fender fixation points 1 and 2. Secondly remove both the washer solvent container along with the coolant recovery tank. You must use the orifice tube remover (J 26549-E) along with the evaporator tube to remove the component while disposing of the o-ring seal. After installing a new o-ring seal the technician should connect the evaporator tube to the evaporator while tightening the nut to 28 n.m (21 lb ft). Secure the auxiliary piping to the auxiliary evaporator tube with a nut torque at 28 n.m (21 lb ft), and proceed by connecting the evaporator tube to the condenser where a torque of 28 n.m (21 lb ft) should be applied to the nut securely. After reattaching the coolant recovery tank and washer solvent container the technician must tighten the nuts (1,2) which secure the evaporator tube to the fender at 28 n.m (21 lb ft). You must evacuate, recharge and test for leaks of the a/c system through its components by utilizing the halogen leak detector (J 39400-A).
