Make sure this part fits

GM 15923988
Evaporator Tube

2003-2009 GM

Customer Questions & Expert Answers (14)

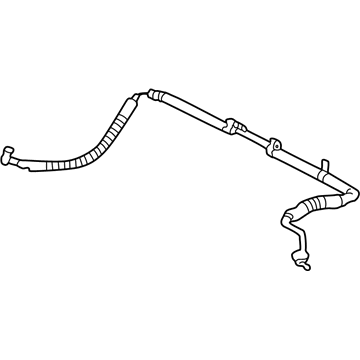

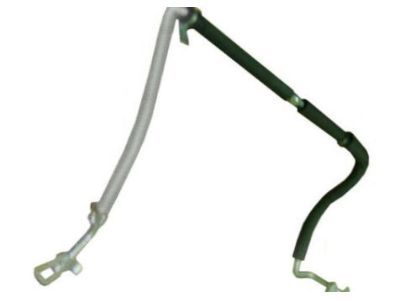

GM 15923988 Evaporator Tube
GM 15923988 Evaporator Tube
GM 15923988 Evaporator Tube
GM 15923988 Evaporator Tube
  • Part Description
    Tube Assembly-A/C Evaporator; A/C Refrigerant Liquid Hose; A/C Hose
  • Replaces
    15883408, 15125284
  • Manufacturer
    General Motors
Make sure this part fits
$106.37 MSRP: $218.58
You Save: $112.21 (52%)
Ships in 1 Business Day
1
ADD TO CART

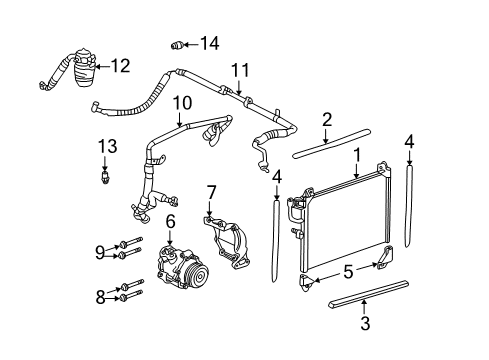

  • 15923988 Evaporator Tube is Ref No. 11 in the diagram below

    2004 Buick Rainier Evaporator Tube Diagram for 15923988
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15923988

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2007 Buick RainierCXL, CXL Plus6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2003-2009 Chevrolet TrailblazerBase, LS, LT, LTZ, North Face, SS6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
    2006 Chevrolet Trailblazer EXTLS, LT8 Cyl 5.3 L GAS
    2003-2009 GMC EnvoyDenali, SLE, SLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2006 GMC Envoy XLDenali8 Cyl 5.3 L GAS
    2003-2004 Oldsmobile BravadaBase6 Cyl 4.2 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15923988 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15923988 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the A/C Hose for the evaporator tube on Buick Rainier? Posted by Customer
    A:
    The replacement of the Evaporator tube should start with refrigerant recovery. Remove the Evaporator tube from both the Evaporator system as well as the auxiliary piping. The technician should remove the Evaporator tube nut from the condenser and proceed with loosening the nuts numbered (1, 2) that retain the Evaporator tube onto the fender. The washer solvent container along with the coolant recovery tank must be removed next. The orifice tube remover (J26549-E) helps remove the Evaporator tube while you should get rid of the included o-ring seal. The first step in installation consists of adding a new o-ring as well as fitting the Evaporator tube into place. You should attach the Evaporator tube to the Evaporator component and secure it with 28 n.m (21 lb ft) torque. Install the auxiliary Evaporator tube to auxiliary piping before tightening the nut to 28 n.m (21 lb ft). Then secure the Evaporator tube to the condenser and tighten the associated nut to 28 n.m (21 lb ft). After reinstalling the coolant recovery tank and the washer solvent container it is necessary to tighten the nuts (1, 2) holding the Evaporator tube to the fender to 28 n.m (21 lb ft). The technician must conduct a leak check on all components' fittings through the use of a halogen leak detector (J39400-A) post evacuation and recharging of the a/c system.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step in the installation process for the 2004 Buick Rainier? Posted by Customer
    A:
    Reinstall the HVAC module-auxiliary.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What tool is used to remove the evaporator tube for the 2006 Buick Rainier? Posted by Customer
    A:
    Use the Orifice Tube Remover (J 26549-E) to remove the evaporator tube and discard the O-ring seal.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What components need to be removed from the lift bracket and engine stud for the 2007 Buick Rainier? Posted by Customer
    A:
    The bolt from the lift bracket and the nut from the engine stud.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What is the next step after raising and supporting for the 2005 Buick Rainier? Posted by Customer
    A:
    Locate the damaged area.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What tool is used to leak test the fittings after installation for the 2006 Chevrolet Trailblazer? Posted by Customer
    A:
    The Halogen Leak Detector (J 39400-A).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    How should the compressor suction hose be connected to the accumulator for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Connect the compressor suction hose to the accumulator, securing the nut to 48 Nm (35 lb ft), and install the sealing washers.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What should be done after removing the old evaporator tube for the 2005 Chevrolet Trailblazer? Posted by Customer
    A:
    Install a new O-ring seal and the evaporator tube, connecting it to the evaporator and tightening the nut to 28 N.m (21 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    How do you connect the evaporator tube to the condenser for the 2004 Chevrolet Trailblazer? Posted by Customer
    A:
    Connect the evaporator tube to the condenser and tighten the nut to 28 N.m (21 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What should be done after completing the repair for the 2006 GMC Envoy? Posted by Customer
    A:
    Lower the vehicle, refill the coolant if drained, and evacuate and recharge the refrigerant if A/C lines were repaired.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What should be done with all open connections for the 2008 Chevrolet Trailblazer? Posted by Customer
    A:
    Cap or plug them.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What should be removed first during the replacement process for the 2004 GMC Envoy? Posted by Customer
    A:
    Remove the grille.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    Q:
    What follows after removing the compressor suction hose nut for the 2005 GMC Envoy? Posted by Customer
    A:
    Remove the compressor suction hose from the accumulator.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar A/C Hose
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Evaporator Tube 15923988 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15923988 Evaporator Tube is available in the market under the name GM A/C Hose. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15923988 Evaporator Tube fits certain Chevrolet Trailblazer, Trailblazer EXT models, as well as GMC Envoy, Envoy XL. Additionally, it is compatible with Buick Rainier and Oldsmobile Bravada models.
The original GM component designated by manufacturer part number 15923988 maintains top performance when functioning as the Tube Assembly-A/C Evaporator; A/C Refrigerant Liquid Hose; A/C Hose unit. The component 15923988 is constructed from durable material and its dimensions span 33.6 x 22.1 x 7.9 inches while weighing 1.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Tube, A/C Evaporator. The part 15923988 has available replacement options 15883408, 15125284. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
