How to clean the throttle body properly on GMC Jimmy?

Begin Throttle Body cleaning by removing the air cleaner outlet duct to inspect the Throttle Body bore along with throttle valve plate deposits and verify that the throttle valve remains open for comprehensive evaluation. Using immersion cleaners or strong solvents on assemblies with throttle position (TP) sensor and idle air control (IAC) valve or sealed throttle shaft bearings can harm electric components and seals or o-rings and may deteriorate the grease used in non-serviceable throttle shaft bearings. Use wire brushes or scrapers only on Throttle Body components as they can cause damage and never apply cleaners which contain methyl ethyl ketone. Clean the Throttle Body bore and throttle valve plate with gm top engine cleaner p/n 1052626 or ac-delco carburetor tune-up conditioner p/n x66-p but made sure no shop towel drips during use. Excessive deposits require you to separate the Throttle Body parts for cleaning with a parts cleaning brush that should not come in contact with solvents. Install the Throttle Body after cleaning through the steps of Throttle Body assembly replacement then install the throttle position (TP) sensor and idle air control (IAC) valve before reinstalling the air cleaner outlet duct.

OEM GMC Jimmy Throttle Body

Fuel Injection Throttle Body

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Throttle Bodies found

View related parts

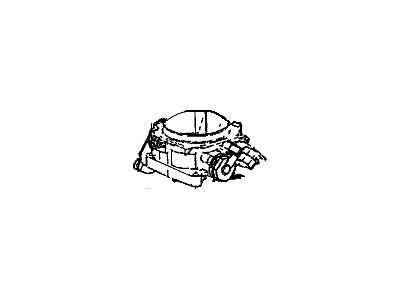

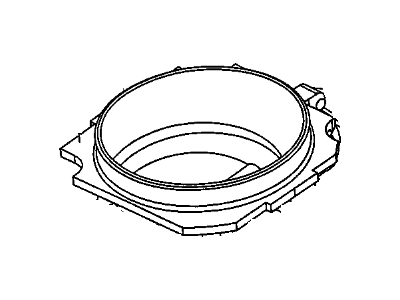

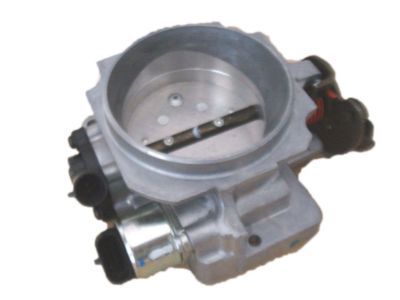

GMC Jimmy Throttle Body Part Number: 17113530
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Replaces: 17113334
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 GMC Jimmy | Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
View related parts
GMC Jimmy Throttle Body Part Number: 17113656
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 GMC Jimmy | Diamond Edition, Envoy, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
View related parts
GMC Jimmy Throttle Body Part Number: 17112516
Product Specifications
- Other Name: Body Kit, Throttle Body/Carburetor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 GMC Jimmy | Base | 8 Cyl 5.7 L GAS
View related parts
GMC Jimmy Throttle Body Part Number: 17096175
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 GMC Jimmy | Base, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
View related parts
GMC Jimmy Throttle Body Part Number: 12595276
Product Specifications
- Other Name: Body, Fuel Injection Air Meter
- Replaces: 17113650, 88894295
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001 GMC Jimmy | Diamond Edition, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS

GMC Jimmy Throttle Body

Want to cut long-term maintenance and repair costs? Choose OEM Throttle Body. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Jimmy parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Jimmy Throttle Body includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The GMC Jimmy Throttle Body is a very vital part that boosts both the functionality and durability of GMC Jimmy automobiles. This essential part regulates the admission of air into the engine through a butterfly valve that opens when the accelerator pedal is a operate. The GMC Jimmy Throttle Body has listed as under; The older models are installing Throttle Body Injection (TBI) while the current models are using multi-port fuel injection and Electronic Throttle Control (ETC). This evolution is not only for the economy benefit but more importantly, the safety aspect is secured with a better and more accurate control over the engines. The Throttle Body complements GMC Jimmy different models appropriately and has a significant impact in the reliable running of the vehicle's engine. However, one must appreciate that the GMC Jimmy Throttle Body is actually rechargeable or replaceable; TPS sensors and IAC valves can be easily serviced and this certainly raises the Stromberg's attractiveness among fans and the general public. Even higher output variants of the GMC Jimmy can use multiple or individual throttle bodies for the ultimate in efficiency and sensitivity. This report has also been able to establish that the GMC Jimmy is one of those vehicles that was well-known for its sturdiness and speed; aspects which have been further enhanced with time given that the vehicle's design has continued to thrive long after its production was ceased. Due to the off-road capacity of the Intermediate and the comfort in the Large, luxury, the GMC Jimmy Throttle Body retains its niche within the car market and guarantees that this model will remain one of the favorites for car enthusiasts.

GMC Jimmy Throttle Body Parts Questions & Experts Answers

Throttle Body
17113656
Q: How to clean the throttle body properly on GMC Jimmy?
A:
Begin Throttle Body cleaning by removing the air cleaner outlet duct to inspect the Throttle Body bore along with throttle valve plate deposits and verify that the throttle valve remains open for comprehensive evaluation. Using immersion cleaners or strong solvents on assemblies with throttle position (TP) sensor and idle air control (IAC) valve or sealed throttle shaft bearings can harm electric components and seals or o-rings and may deteriorate the grease used in non-serviceable throttle shaft bearings. Use wire brushes or scrapers only on Throttle Body components as they can cause damage and never apply cleaners which contain methyl ethyl ketone. Clean the Throttle Body bore and throttle valve plate with gm top engine cleaner p/n 1052626 or ac-delco carburetor tune-up conditioner p/n x66-p but made sure no shop towel drips during use. Excessive deposits require you to separate the Throttle Body parts for cleaning with a parts cleaning brush that should not come in contact with solvents. Install the Throttle Body after cleaning through the steps of Throttle Body assembly replacement then install the throttle position (TP) sensor and idle air control (IAC) valve before reinstalling the air cleaner outlet duct.
