How to properly service and replace the Brake Proportioning Valve on GMC Savana 1500?

You must put the vehicle on jacks before replacing the brake combination valve. Take off the electrical connector from the valve then disconnect both brake lines from its ends. Take off the combination valve bolt and place the combination valve out of the vehicle. Place the combination valve onto the frame in its proper location while following security measures pointed out for fasteners. Mount the combination valve bolt and fasten it with 10 nm (89 lb in) torque. Connect the brake pipes from front and rear to the combination valve and fasten its fittings at 30 nm (22 lb ft). Also reconnect the electrical connector. Conclude the hydraulic brake system maintenance process according to proper bleeding rules.

OEM GMC Savana 1500 Brake Proportioning Valve

Proportioning Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Brake Proportioning Valve found

View related parts

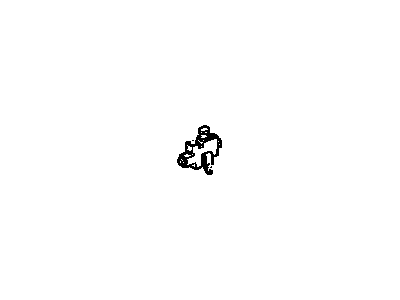

GMC Savana 1500 Pressure Metering Valve Part Number: 15881645
Product Specifications
- Other Name: Valve Assembly-Brake Combination; Brake Proportioning Valve; Valve, Hydraulic Brake Combination/Monitoring Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2014 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS

GMC Savana 1500 Brake Proportioning Valve

Want to cut long-term maintenance and repair costs? Choose OEM Brake Proportioning Valve. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 1500 Brake Proportioning Valve includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 1500 Brake Proportioning Valve Parts and Q&A

Pressure Metering Valve
15881645
Q: How to properly service and replace the Brake Proportioning Valve on GMC Savana 1500?
A:
You must put the vehicle on jacks before replacing the brake combination valve. Take off the electrical connector from the valve then disconnect both Brake Lines from its ends. Take off the combination valve bolt and place the combination valve out of the vehicle. Place the combination valve onto the frame in its proper location while following security measures pointed out for fasteners. Mount the combination valve bolt and fasten it with 10 nm (89 lb in) torque. Connect the brake pipes from front and rear to the combination valve and fasten its fittings at 30 nm (22 lb ft). Also reconnect the electrical connector. Conclude the hydraulic brake system maintenance process according to proper bleeding rules.
