How to replace the steering knuckle on a 4WD on GMC Savana 1500?

In order to replace the Steering Knuckle in a 4wd vehicle lift and support the car, take off the tire and wheel. Remove the torsion bars; remove the wheel drive shaft after that, and then take off the Wheel Hub and bearing. Then, unbolt the tie rod to Steering Knuckle retaining nut to remove the outer tie rod using the j 24319-b. Take off the brake hose bracket retaining bolt from the Steering Knuckle and remove the upper Ball Joint retaining, and disconnect the upper Ball Joint using the j 43631 and j 45851. Unscrew the lower Control Arm retaining nut and unscrew the lower Ball Joint from the Steering Knuckle with the same tools. Once you have removed the Steering Knuckle, ensure that all grease and contaminants are removed from the tapered portion and thread of the upper Ball Joint, lower Ball Joint and the Tie Rod End, and check the taper holes and mounting surface of the Steering Knuckle for damage. Install the new Steering Knuckle while ensuring that lower Ball Joint retaining nut is installed using the torque of 100 nm (74 lb ft) and installing the upper Ball Joint retaining nut that should have 50 nm (37 lb ft). Mount the brake hose bracket to the Steering Knuckle using a retaining bolt which is torqued to 10 nm (88 lb in), and fasten the outer tie rod with the retaining nut tightened about 63 nm (47 lb in). Replace the Wheel Hub and bearing, to it add the wheel drive shaft, to it the tyre and the wheel. Load torsion bars, lower the vehicle, and later align the vehicle.

OEM GMC Savana 1500 Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Steering Knuckles found

View related parts

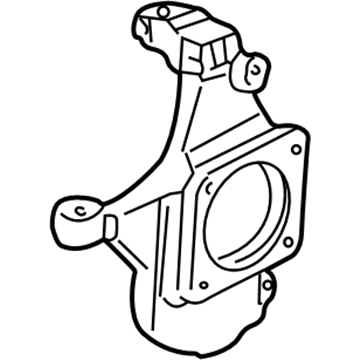

GMC Savana 1500 Knuckle, Passenger Side Part Number: 25840782
$197.36
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaces: 18060698
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2014 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Savana 1500 Knuckle, Passenger Side Part Number: 18060698
$109.65 MSRP: $179.47
You Save: $69.82 (39%)
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaced by: 25840782
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2010 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Savana 1500 Knuckle, Passenger Side Part Number: 85544427
$190.20 MSRP: $323.83
You Save: $133.63 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Passenger Side
- Replaced by: 85022681
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2014 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Savana 1500 Knuckle, Driver Side Part Number: 85544426
$186.78 MSRP: $293.89
You Save: $107.11 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Replaced by: 85022680
- Replaces: 25840783, 84583305, 84308370, 25850232, 18060980
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2014 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Savana 1500 Knuckle, Driver Side Part Number: 25840780
Product Specifications
- Other Name: Knuckle, Steering
- Position: Driver Side
- Replaces: 18060697
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2014 GMC Savana 1500 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Savana 1500 Knuckle, Passenger Side Part Number: 18060574
Product Specifications
- Other Name: Knuckle Assembly, Steering; Knuckle, Steering
- Position: Passenger Side
- Replaces: 15981299
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 GMC Savana 1500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
View related parts
GMC Savana 1500 Knuckle, Driver Side Part Number: 18060573
Product Specifications
- Other Name: Knuckle Assembly, Steering; Knuckle, Steering
- Position: Driver Side
- Replaces: 15981298
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 GMC Savana 1500 | Base, SLE, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS

GMC Savana 1500 Steering Knuckle

Want to cut long-term maintenance and repair costs? Choose OEM Steering Knuckle. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Savana 1500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Savana 1500 Steering Knuckle includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Savana 1500 Steering Knuckle Parts Questions & Experts Answers

Knuckle, Driver Side
85544426
Q: How to replace the steering knuckle on a 4WD on GMC Savana 1500?
A:
In order to replace the Steering Knuckle in a 4wd vehicle lift and support the car, take off the tire and wheel. Remove the Torsion Bars; remove the wheel drive shaft after that, and then take off the Wheel Hub and bearing. Then, unbolt the tie rod to Steering Knuckle retaining nut to remove the outer tie rod using the j 24319-b. Take off the brake hose bracket retaining bolt from the Steering Knuckle and remove the upper Ball Joint retaining, and disconnect the upper Ball Joint using the j 43631 and j 45851. Unscrew the lower Control Arm retaining nut and unscrew the lower Ball Joint from the Steering Knuckle with the same tools. Once you have removed the Steering Knuckle, ensure that all grease and contaminants are removed from the tapered portion and thread of the upper Ball Joint, lower Ball Joint and the Tie Rod End, and check the taper holes and mounting surface of the Steering Knuckle for damage. Install the new Steering Knuckle while ensuring that lower Ball Joint retaining nut is installed using the torque of 100 nm (74 lb ft) and installing the upper Ball Joint retaining nut that should have 50 nm (37 lb ft). Mount the brake hose bracket to the Steering Knuckle using a retaining bolt which is torqued to 10 nm (88 lb in), and fasten the outer tie rod with the retaining nut tightened about 63 nm (47 lb in). Replace the Wheel Hub and bearing, to it add the wheel drive shaft, to it the tyre and the wheel. Load torsion bars, lower the vehicle, and later align the vehicle.
