GM 15037353

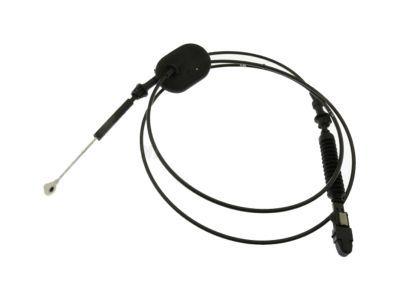

Shift Cable

The 4l60-e automatic transmission Shift Cable operates through two distinct sections because each segment can be separated from the column end or transmission end individually. The process to remove the Shift Cable starts with setting the steering column shift lever to park and then elevating the vehicle. The manual transmission shaft must be placed in mechanical park before using a tool to extract the retainer securing the Shift Cable terminal shaft end while also detaching the terminal shaft end from the transmission shift lever ball stud. You must remove the Shift Cable from the transmission bracket by pushing the rear of the vehicle with both tangs depressed on the conduit end fitting. Move to the middle portion of the transmission Shift Cable to find its center connector where you should gently pull on the white plastic cover before lifting both center tabs on the lock button. Remove the existing e-clip by pulling the center section radially and detach the Shift Cable center connector ends before pulling out the cable half from the vehicle. The new e-clip needs installation onto the Shift Cable end but only after setting the steering column shift lever properly in the park position. After removing the steering column shroud and driver seat users need to strip back carpet and insulation layers in the driver space. The first step involves removing the Shift Cable retainer from the steering column followed by a terminal shaft end disconnection from the ball stud and extraction of the conduit end fitting from the steering column bracket. Carry out the bolt removal procedure for the Shift Cable support to its brace with proper Shift Cable restraint to prevent excessive torque on the Shift Cable. Next disconnect the Shift Cable from this support and then break free the floor panel grommet. After elevating the vehicle once more you should remove both clips from the Shift Cable which are mounted on the floor panel reinforcement. Disconnect the cable terminal end fitting near the transmission manual shaft ball stud and discard the e-clip that you remove. You will find the new Shift Cable front section already includes an e-clip during purchase. Begin installation by setting both the steering column shift lever and transmission manual shaft lever to park position while you will then install two clips on the Shift Cable to the floor panel reinforcement before passing the Shift Cable through floor panel holes and install the grommet. South the vehicle while you attach the Shift Cable conduit end fitting to the steering column bracket where it needs to seat the tangs completely. Hook the Shift Cable terminal shaft end to the steering column ball stud before attaching it with the designated retainer. The installation of Shift Cable at support requires tightening bolt to a torque value of 10 nm (89 inch lbs.). The next procedure includes returning the carpet and insulation and the driver's seat along with the steering column shroud. Raise the car again then use one hand to hold the transmission cable front section and the second hand to hold the back section before aligning them before pushing the rear cable end into the front cable until you reach full compression of the blue spring. After releasing the rear cable end the blue spring will adjust the system automatically while you draw back the white cover to reach the natural colored lock button for engaging the locking teeth. Carefully check whether the white cover successfully covers the lock. If it does not, you must go back and repeat the required steps. The final step includes lowering the vehicle for transmission shift operation testing as well as cable adjustment if you need to achieve all gear positions.

The 4l80-e automatic transmission Shift Cable features split sections which facilitate separate removal of its column end (front half) or transmission-end (rear half). Begin Shift Cable removal by setting the steering column shift lever to park and by raising the vehicle to its highest position. Follow this procedure for Shift Cable removal: first position transmission manual shaft to mechanical park then remove transmission bracket retainer before detaching Shift Cable terminal shaft end from transmission shift lever ball stud. The transmission bracket welcomes the Shift Cable's removal through performing two steps. First press the conduit end fitting's lower and upper tangs simultaneously before gently pushing the cable rearward. The center connector on transmission Shift Cable features a white plastic cover you can pull back while manipulating the center tabs of the lock button to extract an e-clip through radial motion at its central section. Throw away the removed e-clip and take off the center connector ends from the Shift Cable. Using a new e-clip take a straight down approach to secure the cable end. Start by putting the steering column shift lever into park position then remove the steering column shroud followed by the driver's seat before you peel the carpet and insulation away from around the driver's area. First detach the retainer holding the Shift Cable to the steering column and pull off the terminal shaft end from the ball stud and detach the conduit end fitting from the steering column bracket. When removing the Shift Cable from its support be cautious not to expose it to undesired twisting or bending forces. The Shift Cable grommet must be extracted from the floor panel. Using a second person to help raise the vehicle remove the two clips from the Shift Cable which are attached to the floor panel reinforcement. First remove the transmission manual shaft ball stud cable terminal end fitting before discarding the e-clip. A pre-installed e-clip ships with the front portion of the Shift Cable. Installation requires the following sequence: set the parking positions for steering column shift lever and transmission manual shaft lever then connect the Shift Cable clips to floor panel reinforcement followed by passing the Shift Cable through the floor panel hole before adding the grommet. Spend time lowering the vehicle so you can connect the conduit end fitting to its bracket on the steering column while making sure tangs completely lock into position. Secure the Shift Cable terminal shaft end to the steering column ball stud with its retainer. Lay the Shift Cable onto the support then secure the bolt to 10 nm (89 inch lbs.) tension before putting back the carpet and insulation and driver's seat and steering column shroud. Raise the vehicle one last time to push the end of cable into cable while using the left hand to hold the front half and the right hand to hold the rear half. Align cable diameters before fully compressing the blue spring. Allow cable to release so the blue spring tightens the system. Next, pull back the white cover on cable while pushing the natural colored lock button to set the locking teeth. A successful check on the lock involves ensuring the white cover properly hides the lock. Perform the necessary steps again if necessary. Testing the transmission's operation occurs after lowering the vehicle while adjusting the Shift Cable if the desired gear positions remain unattainable.
