Make sure this part fits

GM 12487573
Air Compressor

1993-2002 GM

Customer Questions & Expert Answers (4)
GM 12487573 Air Compressor
  • Part Description
    Compressor, Air Suspension Compressor
  • Replaces
    22120632
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

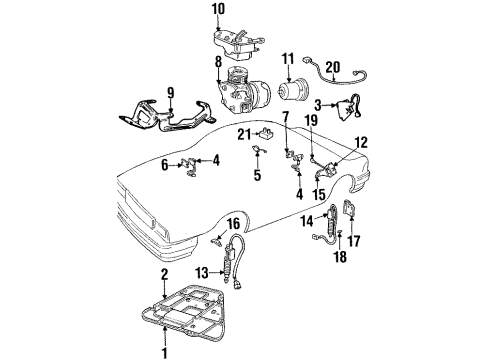

  • 12487573 Air Compressor is Ref No. 8 in the diagram below

    1993 Cadillac Eldorado Air Compressor Diagram for 12487573
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 12487573

  • Vehicle Fitment

    Year Make Model Trim Engine
    1994-1999 Cadillac DeVilleBase, Concours, d'Elegance8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
    1993-2002 Cadillac EldoradoBase, ESC, ETC, Sport, Touring8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
    1993-1997 Cadillac SevilleBase, SLS, STS8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 12487573 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 12487573 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Air Suspension Compressor on Cadillac Eldorado? Posted by Customer
    A:
    First, lift and stabilize the vehicle to replace the Air Suspension Compressor. Clean the components and their surroundings in order to avoid the entry of dirt into the elc system before disconnecting any Air Hose or tube. Remove the air tube from the air dryer, remove the air tube from the Air Suspension Compressor bracket, and remove the vehicle harness connector from the Air Suspension Compressor connector. Subsequently, take out the intake Air Filter and after that remove the three bolts that attach the Air Suspension Compressor assembly to the vehicle and the three bolts from the bracket. Pull off the dryer from the Air Suspension Compressor and break off the Air Hose from the compressor at two points. Position the two brackets on the Air Suspension Compressor with the use of two screws and tighten them to 7 nm (62 inch lb.). Connect the Air Hose to the Air Suspension Compressor at two positions, and install the air dryer to the Air Suspension Compressor. Mount the Air Suspension Compressor assembly to the bracket by using 3 bolts with 3 nm (26 inch lbs.), and then mount the assembly to the vehicle using 3 bolts, tightened to 15 nm (11 ft. Lbs.). Replace the intake Air Filter and connect the air tube to the air dryer along with the air tube to the Air Suspension Compressor bracket. Finally, connect the vehicle harness connector to the Air Suspension Compressor connector. Before going for a drive, turn the ignition on; give a wait of about 45 seconds that would enable the elc system to carry out the arc to ensure the air adjustable struts are filled with the residual pressure then lowering the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step in the replacement process for the 2001 Cadillac Eldorado? Posted by Customer
    A:
    Connect the vehicle harness connector to the air compressor connector.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Air Suspension Compressor
    Q:
    What should be done to prevent dirt from entering the ELC system for the 2002 Cadillac Eldorado? Posted by Customer
    A:
    Clean the components and surrounding area before disconnecting any air hose or tube.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Air Suspension Compressor
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Air Compressor 12487573 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 12487573 Air Compressor is available in the market under the name GM Air Suspension Compressor. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 12487573 Air Compressor fits certain Cadillac DeVille, Eldorado, Seville models.
The original GM component designated by manufacturer part number 12487573 maintains top performance when functioning as the Compressor, Air Suspension Compressor unit. The component 12487573 is constructed from durable material and its dimensions span 8.5 x 9.6 x 6.9 inches while weighing 6.50 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Compressor Assembly; Compressor; Air Suspension Compressor. The part 12487573 has available replacement options 22120632. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
