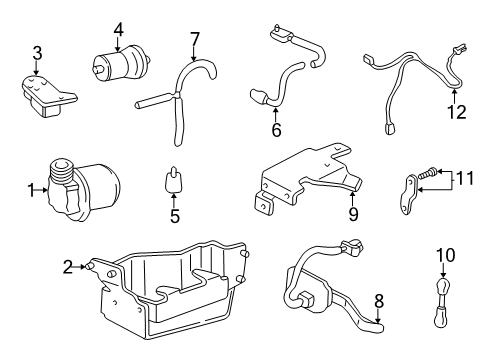

GM 22137571
Compressor

The first step to replace an Air Suspension Compressor involves removing the automatic level control compressor shield. Drive the vehicle up to a height and support it before you remove the spring clip from the air line t-fitting base to deflate the system. The next step involves removing the rear bumper extension while disconnecting the air line from the automatic level control air dryer. First disconnect the electrical connections from the automatic level control Air Suspension Compressor and then remove the mounting nuts before you extract the compressor from the vehicle. You will hang the automatic level control Air Suspension Compressor on its bracket using the hook followed by reconnecting electrical components and attaching the air dryer line. Position the compressor shield and fasten the underbody-mounted compressor by tightening nuts up to 15 nm (11 ft. Lbs). Reinstall the rear bumper extension and then lower the vehicle.

The beginning of Air Suspension Compressor replacement requires automatic level control compressor shield removal. Support the vehicle while simultaneously deflating your system by pulling out the spring clip which secures the t-fitting base on the air line. You must eliminate the rear bumper extension then disconnect the automatic level control air dryer from the air line. First disconnect the power connections to the automatic level control Air Suspension Compressor then remove the nuts before moving the compressor unit off the vehicle. Hanging the automatic level control Air Suspension Compressor by its bracket hook enables installation where you must reintegrate electrical connections before connecting the air line to the air dryer. Install the compressor shield before securing the compressor to the underbody and tighten nuts to 15 nm (11 ft. Lbs.). Once installation is complete replace the rear bumper extension while lowering the vehicle.
