GM 12470451

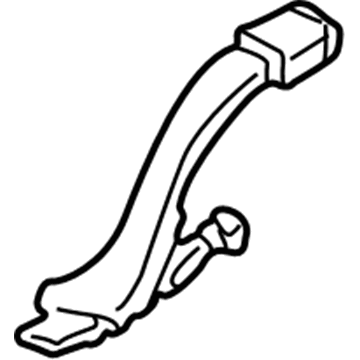

Lap Belt, Gray, Driver Side

Start the 3rd door seat belt service by removing both the retractor cover in the rear seat access panel and then the bolt securing the retractor. Replace the retractor along with its belt into position within the rear seat access panel. Put the retractor bolt through its opening and fasten it to the rear seat access panel while tightening it to 55 N.m (41 lb ft). You must replace the bolt through the anchor plate and washer into the rear seat access panel and secure it similarly to 55 N.m (41 lb ft). Replace the cover over the rear seat access panel as the final step.

Service of the seat belt in a Crew Cab starts by peeling off the door pillar anchor plate cover from its bottom position. The retractor service starts with extracting the bolts that secure the door pillar weld nut and the one that holds the retractor on the floor panel followed by retractor removal from the vehicle. The first step of installation includes setting the retractor and belt onto the floor while you should insert the bolt inside the retractor to be threaded into the floor panel weld nut before securing it to 55 N.m (41 lb ft). After inserting the bolt and washer through the anchor plate into the door pillar weld nut tighten it to 55 N.m (41 lb ft). Finish the installation by placing back the cover that was initially placed on the door pillar anchor plate.

Begin by removing the center front seat belt latch bolt and detach the seat belt latch assembly from the vehicle.
