Make sure this part fits

GM 22639751
Trailing Arm, Rear Driver Side

1997-2005 GM

Customer Questions & Expert Answers (7)

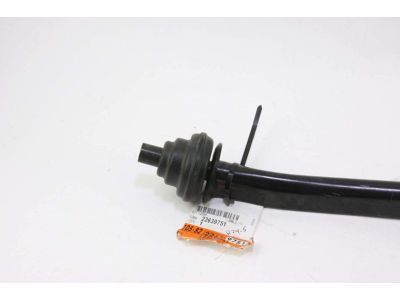

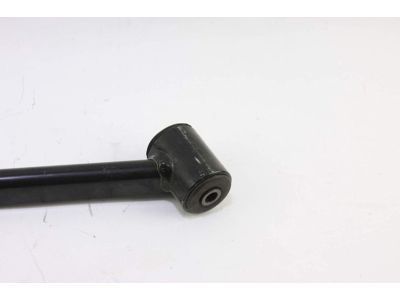

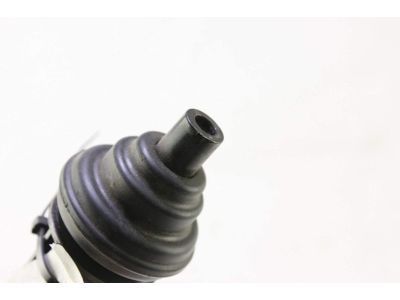

GM 22639751 Trailing Arm, Rear Driver Side
GM 22639751 Trailing Arm, Rear Driver Side
GM 22639751 Trailing Arm, Rear Driver Side
GM 22639751 Trailing Arm, Rear Driver Side
GM 22639751 Trailing Arm, Rear Driver Side
GM 22639751 Trailing Arm, Rear Driver Side
  • Part Description
    Arm Assembly-Rear Suspension Trailing; Suspension Trailing Arm
  • Position
    Rear Driver Side
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

  • 22639751 Trailing Arm, Rear Driver Side is Ref No. 8 in the diagram below

    2004 Oldsmobile Alero Trailing Arm, Rear Driver Side Diagram for 22639751
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 22639751

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2005 Chevrolet ClassicBase, LS4 Cyl 2.2 L GAS
    1997-2003 Chevrolet MalibuBase, LS4 Cyl 2.4 L GAS, 6 Cyl 3.1 L GAS
    1999-2004 Oldsmobile AleroGL, GLS, GX4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.4 L GAS
    1997-1999 Oldsmobile CutlassBase, GL, GLS6 Cyl 3.1 L GAS
    1997 Oldsmobile Cutlass SupremeBase6 Cyl 3.1 L GAS
    1999-2005 Pontiac Grand AmGT, GT1, SE, SE1, SE24 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS, 6 Cyl 3.4 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 22639751 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 22639751 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to properly align and replace the Lateral Link and Trailing Arm on a Chevrolet Malibu? Posted by Customer
    A:
    The vehicle needs to be raised and supported before removing the tire and wheel to replace the rear lateral links and trailing arms. Berkeley ABS wire harness detachment takes precedence while the link-to-knuckle assembly should be removed with nut and bolt and washer . Push forward with bolt to make space for link removal. After that, remove link nut and bolt from rear suspension support. Extract the front front link from the vehicle. Service Precautions regarding Fastener Notice must be observed before attaching the front link to the vehicle during installation. Position the link bolt and nut at the rear suspension support afterward tightening the rear link bolt to 120 Nm (89 ft. lbs.). First reconnect the ABS wire harness to the lateral link before installing the front link using the knuckle bolt , washer and nut . Complete the installation by tightening the link to the knuckle nut correctly up to 100 Nm (74 ft. lbs.). Reinstall the tire and wheel before finalizing the adjustment of rear wheel alignment.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the rear lateral links and trailing arms on Chevrolet Malibu? Posted by Customer
    A:
    Start the replacement of rear lateral links and trailing arms by supporting and lifting the vehicle. Disassemble the wheel from the tire to enable access for detaching the ABS wire harness from the lateral link. Push the bolt forward while removing the link to knuckle nut and bolt and washer until sufficient link removal space is achievable. Lift the vehicle wheel and disconnect its supporting link nut and bolt at the rear suspension support to remove the front link . The first step for installation requires you to connect the front link to the vehicle while strictly adhering to the fastener notice for essential torque requirements. Use the link bolt along with nut at the rear suspension support before tightening the rear link bolt to 120 Nm (89 ft. lbs.). Attach the lateral link to its knuckle bolt and washer and nut before final tightening of the link to knuckle nut at 120 Nm (89 ft. lbs.). The replacement process concludes with installing the wheel and tire while performing necessary adjustments on rear wheel alignment.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the torque specification for tightening the trailing arm to body bolt for the 2004 Chevrolet Classic? Posted by Customer
    A:
    Tighten to 65 Nm (48 ft. lbs.) plus 120 degrees rotation.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What is the first step to replace the trailing arm for the 2003 Chevrolet Malibu? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What is the torque specification for tightening the knuckle bolt for the 2000 Chevrolet Malibu? Posted by Customer
    A:
    Tighten to 69 Nm (51 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    Q:
    What is the first step to replace the rear lateral links and trailing arms for the 2001 Chevrolet Malibu? Posted by Customer
    A:
    Raise and support the vehicle and remove the tire and wheel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Trailing Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Trailing Arm, Rear Driver Side 22639751 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 22639751 Trailing Arm, Rear Driver Side is available in the market under the name GM Control Arm, Trailing Arm. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 22639751 Trailing Arm, Rear Driver Side fits certain Chevrolet Malibu, Classic models, as well as Pontiac Grand Am. Additionally, it is compatible with Oldsmobile Cutlass, Alero, Cutlass Supreme models.
The original GM component designated by manufacturer part number 22639751 maintains top performance when functioning as the Arm Assembly-Rear Suspension Trailing; Suspension Trailing Arm unit at its Rear Driver Side. The component 22639751 is constructed from durable material and its dimensions span 21.3 x 3.9 x 2.7 inches while weighing 3.30 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Arm, Rear Axle Control Arm. The part 22639751 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
