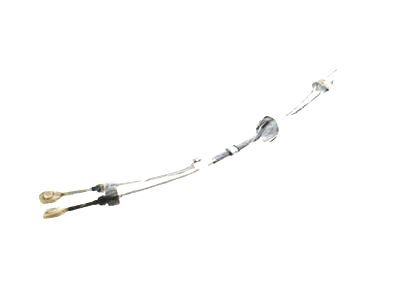

OEM 2007 Chevrolet Cobalt Shift Cable

2007 Chevrolet Cobalt Shift Cable Parts Questions & Experts Answers

• Q: How to replace the shift cable in a Getrag 5 Speed manual transmission on 2007 Chevrolet Cobalt?

  A: The first procedure when replacing the Shift Cable in a getrag 5 speed manual transmission consists of engaging the parking brake followed by shifting the transmission into the (N) neutral position. Start by taking off the console and then elevate the cable retainers while disconnecting cable ends from both shift control assembly and transmission shift levers for correct reassembly purposes. The first step is to pull out the Shift Cable from the transmission cable bracket after which you should lift and secure the vehicle in position. Break the Shift Cable attachment nut that is under the vehicle before you lower it down. Begin by taking out the left instrument panel closeout panel and set the driver's side front carpet to the side. The grommet needs separation from the Floor Pan to enable pulling the cable through the driver's floor opening until it is removed. The new cable assembly needs to pass through the floor opening where the driver sits before installing the grommet directly on the floor surface. Follow the installation of driver's side front carpet and left instrument panel closeout panel while promoting the vehicle lift process. Install the Shift Cable attachment nut under the vehicle body before tightening it to a torque value of 10 n.m. Lower the vehicle afterwards. Connect the shift cables to the transmission cable bracket while resting their ends on the transmission shift levers where marks indicate during disassembly and fasten them to the shift control assembly. Press down the shifter neutral lock clip and position the shifter while you ensure the transmission stays in neutral before installing the console. After pressing down on the locking tabs you should pull the shifter neutral lock clip into its original place before reinstalling the console.
