How to replace the canister purge valves on Cadillac CTS?

The first step is loosening the fuel filler cap to reduce system pressure before replacing the evaporative emission (EVAP) canister purge solenoid valve. Unplug the evap canister purge valve vacuum hose at the engine vent adapter and disconnect the coil pack electrical connector as well as the evap quick connect fitting. Disconnect both the heated oxygen sensor connector located on the bracket and the electrical connector affixed to the evap canister purge valve. The installation procedure requires removing two bolts which secure the heated oxygen sensor connector bracket and the evap canister purge valve bracket to the crankcase vent housing . During this step note down the vacuum source hose routing. Detach the evap canister purge valve assembly from inside the motor. During replacement work you should install the evap canister purge valve assembly where you observed it during disassembly behind the intake plenum. Screw in the bolt which secures both heated oxygen sensor connector bracket and evap canister purge valve bracket onto the crankcase vent housing . Tighten the evap canister purge valve bracket bolt to 8 n.m (71 lb in). Complete the electrical connector installation to the evap canister purge valve, then mount the heated oxygen sensor connector to its bracket followed by evap quick connect fitting installation. The electrical connector should hook up to both the coil pack and the engine vent adapter where the evap canister purge valve vacuum hose attaches. The final task involves tightening the fuel filler cap.

OEM Cadillac CTS Canister Purge Valves

Fuel Tank Evaporator Purge Control Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Canister Purge Valves found

View related parts

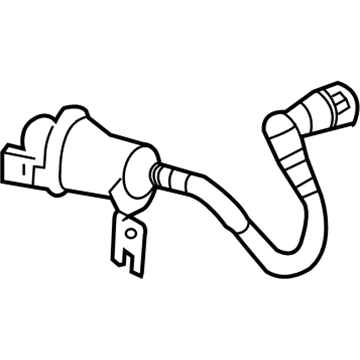

Cadillac CTS Solenoid Valve, Green Line
Part Number: 12597567
$35.29 MSRP: $66.28
You Save: $30.99 (47%)
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids; Purge Valve; Purge Valve; Purge Solenoid; Purge Control Valve; Solenoid
- Replaced by: 12735397
- Replaces: 12606684, 12597566, 12570469, 12597341
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Cadillac CTS | V | 8 Cyl 6.0 L GAS
View related parts
Cadillac CTS Purge Valve
Part Number: 12690512
$27.65 MSRP: $51.92
You Save: $24.27 (47%)
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids.; Purge Solenoid; Purge Control Valve
- Replaced by: 12737252
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac CTS | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Purge Valve
Part Number: 12630282
$35.45 MSRP: $72.90
You Save: $37.45 (52%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids.; Purge Solenoid; Purge Control Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Cadillac CTS | Luxury, Premium, Premium Luxury, V | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Purge Valve
Part Number: 12639188
$32.39 MSRP: $58.62
You Save: $26.23 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Canister Purge Valve; Purge Control Valve
- Replaced by: 12735401
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2015 Cadillac CTS | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Purge Valve
Part Number: 12632174
$34.29 MSRP: $64.40
You Save: $30.11 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids.; Purge Solenoid; Purge Control Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Cadillac CTS | Base, Luxury, Performance, Premium | 4 Cyl 2.0 L GAS
View related parts
Cadillac CTS Solenoid Valve
Part Number: 19432156
$51.24 MSRP: $104.06
You Save: $52.82 (51%)
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Evaporator Emission Canister Purge Solenoid; Purge Valve; Purge Solenoid; Purge Control Valve; Valve, Fuel Tank Evaporator/Purge Control
- Replaced by: 19435149
- Replaces: 12591334, 12611801
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac CTS | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac CTS Solenoid Valve
Part Number: 85123399
$38.71 MSRP: $78.62
You Save: $39.91 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assembly-Evaporator Emission Canister; Vapor Canister Purge Solenoid; Vapor Canister Vent Solenoid; Purge Solenoid; Vent Control Solenoid; Solenoid; Solenoid, Fuel Tank Evaporator/Purge Control
- Replaces: 84802774, 84065747, 22740537
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Cadillac CTS | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Solenoid Valve
Part Number: 84524035
$21.31 MSRP: $40.02
You Save: $18.71 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids; Canister Purge Valve; Purge Solenoid; Vent Valve; Vent Control Solenoid; Release Solenoid; Solenoid; Valve, Fuel Tank Evaporator/Purge Control
- Replaces: 22865590, 15788844, 17114055, 21993142, 20924750, 25321964, 25932573
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2015 Cadillac CTS | Base, Luxury, Luxury Sport, Performance, Premium, V, Vsport, Vsport Premium | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac CTS Control Valve
Part Number: 24461169
$100.86 MSRP: $204.85
You Save: $103.99 (51%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge Valve; Canister Purge Valve; Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 Cadillac CTS | Base, Luxury, Luxury Sport, V | 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS

Cadillac CTS Canister Purge Valves

Our website offers an extensive catalog of genuine Cadillac CTS Canister Purge Valves at unbeatable prices. Every OEM Cadillac CTS Canister Purge Valves comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac CTS Canister Purge Valves Parts Questions & Experts Answers

Control Valve
24461169
Q: How to replace the canister purge valves on Cadillac CTS?
A: The first step is loosening the fuel filler cap to reduce system pressure before replacing the evaporative emission (EVAP) canister purge solenoid valve. Unplug the evap canister purge valve vacuum hose at the engine vent adapter and disconnect the coil pack electrical connector as well as the evap quick connect fitting. Disconnect both the heated oxygen sensor connector located on the bracket and the electrical connector affixed to the evap canister purge valve. The installation procedure requires removing two bolts which secure the heated oxygen sensor connector bracket and the evap canister purge valve bracket to the crankcase vent housing . During this step note down the vacuum source hose routing. Detach the evap canister purge valve assembly from inside the motor. During replacement work you should install the evap canister purge valve assembly where you observed it during disassembly behind the intake plenum. Screw in the bolt which secures both heated oxygen sensor connector bracket and evap canister purge valve bracket onto the crankcase vent housing . Tighten the evap canister purge valve bracket bolt to 8 n.m (71 lb in). Complete the electrical connector installation to the evap canister purge valve, then mount the heated oxygen sensor connector to its bracket followed by evap quick connect fitting installation. The electrical connector should hook up to both the coil pack and the engine vent adapter where the evap canister purge valve vacuum hose attaches. The final task involves tightening the fuel filler cap.
