How to Service and Repair a Sway Bar Bushing with RPO FE1 or FE3 on Cadillac DeVille?

The service and repair of Sway Bar Bushing under rpo fe1 or fe3 requires vehicle lifting followed by supporting the frame to achieve free Control Arm movement. Remove first the wheels then remove the sway bar link bolts and brackets before taking off the sway bar insulator connected to the bracket. Follow fastener guidelines in order to perform stable installation of right and left sway bar insulators along with their brackets and bolts. The next step involves installing the sway bar link insulators and washers with nut and bolt that should be loosely tightened. Apply torque of 33 nm (24 ft. Lbs.) to sway bar to frame bolts while the sway bar link nut should be tightened to 17 nm (13 ft. Lbs.). The procedure ends by reinstalling wheels and tires along with wheel nut tightening to 125 nm (80 ft. Lbs.) before lowering the vehicle.

OEM Cadillac DeVille Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Sway Bar Bushings found

View related parts

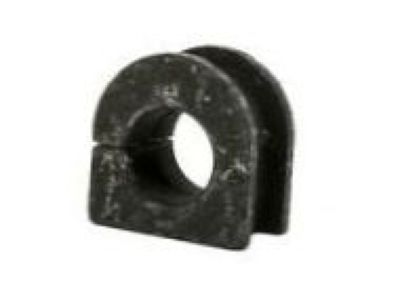

Cadillac DeVille Stabilizer Bar Bushing, Blue, Front Part Number: 3545376
$6.75 MSRP: $9.09
You Save: $2.34 (26%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator-Front Stabilizer Shaft *Blue; Sway Bar Bushing; Bushings; Insulator, Stabilizer Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1999 Cadillac DeVille | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25558129
$13.11
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Stabilizer Link Insulator; Link Insulator; Bushings
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Cadillac DeVille | Base, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 14086831
$8.78 MSRP: $13.00
You Save: $4.22 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Suspension Stabilizer Bar Bushing Kit; Sway Bar Link.; Link Kit; Link; Bushing; Bushings
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1993 Cadillac DeVille | Base, Cabriolet, d'Elegance, Spring Edition, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25662287
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac DeVille | Base, Concours | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing, Yellow, Rear Part Number: 20757299
Product Specifications
- Other Name: Insulator-Rear Stabilizer Shaft; Suspension Stabilizer Bar Bushing Kit; Stabilizer Bushing Kit; Sway Bar Bushing; Stabilizer Bar Insulator; Bushing; Bushings; Insulator, Stabilizer Shaft
- Position: Rear
- Replaces: 25604385
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Cadillac DeVille | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Lower Control Arm Bushing Part Number: 6270752
$1.18 MSRP: $1.86
You Save: $0.68 (37%)
Product Specifications
- Other Name: Insulator-Stabilizer Shaft Link; Control Arm Bushing; Axle Pivot Bushing; Stabilizer Link Bushing; Strut Mount Bushing; Stabilizer Link Kit; Insulator; Shock Absorber/Strut; Steering Anti-Shock.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005, 1985-1993 Cadillac DeVille | Base, Cabriolet, d'Elegance, DHS, DTS, Protection Series, Spring Edition, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25699776
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Suspension Stabilizer Bar Bushing Kit; Stabilizer Bushing Kit; Sway Bar Bushing; Shaft Bushings; Bushing; Bushings
- Position: Front
- Replaces: 25689666, 25640440
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 Cadillac DeVille | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing, White, Front Part Number: 3545378
Product Specifications
- Other Name: Insulator-Front Stabilizer Shaft *White; Sway Bar Bushing; Bushings; Insulator, Stabilizer Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac DeVille | Concours | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25662288
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1999 Cadillac DeVille | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25662286
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Bushings
- Position: Rear
- Replaces: 03539798, 3539798, 25635251
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Cadillac DeVille | Base, Concours | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 25558121
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Stabilizer Link Insulator; Link Insulator; Bushings
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Cadillac DeVille | Base, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 14086877
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Sway Bar Bushing; Sway Bar Link; Link Kit; Link; Bushing; Bushings
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993, 1988-1990 Cadillac DeVille | Base, Touring | 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing Part Number: 14086832
Product Specifications
- Other Name: Insulator, Stabilizer Shaft; Suspension Stabilizer Bar Bushing Kit; Stabilizer Bushing Kit; Sway Bar Bushing; Link Kit; Bushings
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1993 Cadillac DeVille | Base, Cabriolet, d'Elegance, Spring Edition, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac DeVille Stabilizer Bar Bushing, Rear Part Number: 10026772
Product Specifications
- Other Name: Insulator-Rear Stabilizer Shaft; Sway Bar Bushing; Stabilizer Bar Shaft Plate; Link Insulator; Bar Insulator; Bushings.
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993, 1985-1987 Cadillac DeVille | Base, Cabriolet, d'Elegance, Spring Edition, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.9 L GAS

Cadillac DeVille Sway Bar Bushing

Want to cut long-term maintenance and repair costs? Choose OEM Sway Bar Bushing. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DeVille parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DeVille Sway Bar Bushing includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac DeVille Sway Bar Bushing is a part which is very important and increases work ability and steadiness of Cadillac DeVille automobiles. Intended to cover up irregularities on the road and dampen sound, the Sway Bar Bushing links the Sway Bar that controls lateral movement or 'body roll' in turns. This is especially helpful for steadying the car and to provide a stable driving and a comfortable ride on different Cadillac DeVille models and configurations that may include the coupe and the sedan. Eventually, even the Sway Bar Bushing may become worn out and exhibit signs such as a less sensitive handling accompanied by some squeaking or 'rattles' which can affect the cars stability and safety of the drive. Cadillac DeVille Sway Bar Bushing serve the purpose of stabilizing the car and reduce the body roll while cornering for comfortable and uncompromised driving experience Therefore Cadillac DeVille Sway Bar Bushing should be maintained regularly to obtain the prime performance of the car and to extend the life cycle of the suspension system. Cadillac DeVille presents a car line that has always been classified as a luxury vehicle with numerous technological innovations in its construction over the years, and new additional options for improving the machine's performance and comfort. In particular, the Sway Bar Bushing also has its implications to increase the efficiency of the vehicle; this is geared towards a fact that it ensures appropriate balance and control for the drivers. This Cadillac DeVille Sway Bar Bushing offers car owners durability and high effectiveness of use, which has established the Cadillac as a manufacturer of extremely high quality and constantly developing. Implementing care for the Sway Bar Bushing Cadillac DeVille owners increase the safety of the car and the pleasure of driving, which supports the continuation of luxury and power in the Cadillac DeVille cars.

Cadillac DeVille Sway Bar Bushing Parts Questions & Experts Answers

Lower Control Arm Bushing
6270752
Q: How to Service and Repair a Sway Bar Bushing with RPO FE1 or FE3 on Cadillac DeVille?
A:
The service and repair of Sway Bar Bushing under rpo fe1 or fe3 requires vehicle lifting followed by supporting the frame to achieve free Control Arm movement. Remove first the wheels then remove the sway bar link bolts and brackets before taking off the sway bar insulator connected to the bracket. Follow fastener guidelines in order to perform stable installation of right and left sway bar insulators along with their brackets and bolts. The next step involves installing the sway bar link insulators and washers with nut and bolt that should be loosely tightened. Apply torque of 33 nm (24 ft. Lbs.) to sway bar to frame bolts while the sway bar link nut should be tightened to 17 nm (13 ft. Lbs.). The procedure ends by reinstalling wheels and tires along with wheel nut tightening to 125 nm (80 ft. Lbs.) before lowering the vehicle.
