How to replace the starter motor on Cadillac DTS?

Before starting the Starter motor replacement process you must disconnect the negative Battery Cable. Next, remove the Intake Manifold. Start by unscrewing the "bat" terminal nut followed by the "s" terminal nut from the Starter motor. Once completed disconnect the Starter solenoid cable from its position. Begin by removing both Starter motor bolts before completely removing the Starter motor unit. Begin Starter motor installation by fitting the device into its slot in the Starter solenoid retention area while ensuring that the large terminal locator tab is properly located. Tighten all Starter motor bolts to a torque specification of 25 nm (18 lb ft). Connect the Starter solenoid cable to the Starter before you install and tighten the "s" terminal nut to 4 nm (35 lb in) torque then move to the "bat" terminal nut at 10 nm (89 lb in). Reinstall both the Intake Manifold while also reconnecting the negative Battery Cable.

OEM Cadillac DTS Starter

Starter Ignition

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Starter found

View related parts

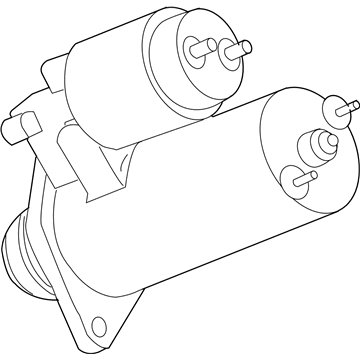

Cadillac DTS Starter Part Number: 89017760
$233.19 MSRP: $512.18
You Save: $278.99 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Starter (Remanufacture); Starter Motor; Starter, Starter Motor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Cadillac DTS | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS

Cadillac DTS Starter

Want to cut long-term maintenance and repair costs? Choose OEM Starter. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac DTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac DTS Starter includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac DTS Starter is an important part of the vehicle that converts the battery energy into the mechanical energy to turn the engine. These are through an externally mounted solenoid drawing current from the battery to the starter motor. Within the starter, the rotating armature moves within the field coils or permanent magnets sufficient torque production is created. I came to know that the starter drive meshes with the flywheel of the engine once the key is turned to START, and an over running clutch releases the same once the engine begins to run. In Cadillac DTS vehicles over several years the starters that have been used include the gear reduction starter wherein there is a reduction gear that assist in the start by engaging the drive. While ordinary starters are the ones that come with the engine, high compression motors have high torque requirements and therefore, the OE starters may mess up in delivering this. That is why the choice of starter technology has changed, progressing in tandem with the requirements for the reliability and power of modern cars.

Cadillac DTS Starter Parts Questions & Experts Answers

Starter
89017760
Q: How to replace the starter motor on Cadillac DTS?
A:
Before starting the Starter motor replacement process you must disconnect the negative Battery Cable. Next, remove the Intake Manifold. Start by unscrewing the "bat" terminal nut followed by the "s" terminal nut from the Starter motor. Once completed disconnect the Starter solenoid cable from its position. Begin by removing both Starter motor bolts before completely removing the Starter motor unit. Begin Starter motor installation by fitting the device into its slot in the Starter solenoid retention area while ensuring that the large terminal locator tab is properly located. Tighten all Starter motor bolts to a torque specification of 25 nm (18 lb ft). Connect the Starter solenoid cable to the Starter before you install and tighten the "s" terminal nut to 4 nm (35 lb in) torque then move to the "bat" terminal nut at 10 nm (89 lb in). Reinstall both the Intake Manifold while also reconnecting the negative Battery Cable.
