How to service and repair the alternator on Cadillac Eldorado?

Begin the Alternator repair by cutting off the negative Battery Cable followed by belt removal and radiator panel and front engine shield removal. The first step involves taking out the upper front bolt from the generator before employing vehicle support and engine bracket loosening from the motor. After disassembling the top bolt and front lower bolt and lower rear bolt and upper rear bolt it's time to remove the duct that exits at the generator's rear end. Start by cutting power connections to the generator through its regulator and battery output as well as heated windshield components (if present). Following this step you can detach the front generator a/c bracket to rotate the generator free from the vehicle. The generator needs to be positioned back into the vehicle before installing the front generator a/c bracket. Secure the generator's battery output cable at 12 n.m (106 lb in) torque when making electrical connections. Place the duct behind the generator where it meets the black generator duct and fasten the upper rear mounting bolt to 50 n.m (37 lb ft), the lower rear mounting bolt to 50 n.m (37 lb ft) and the front mounting bolt to 50 n.m (37 lb ft). Install the rear generator bracket bolt to the engine followed by a torque setting of 50 n.m (37 lb ft), then lower the vehicle. The installation continues with the front engine splash shield followed by the radiator support access panel then mounting the upper front bolt with a torque setting of 47 n.m (35 lb ft). To complete the repair install the accessory Drive Belt while attaching the negative Battery Cable to the battery.

OEM Cadillac Eldorado Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Alternators found

View related parts

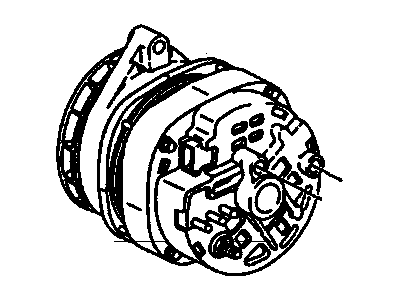

Cadillac Eldorado Alternator Part Number: 19244769
$125.67 MSRP: $236.00
You Save: $110.33 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464079, 19152125
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Cadillac Eldorado | Base, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244756
Product Specifications
- Other Name: Generator Assembly, (Remanufacture)
- Replaces: 10463069, 19152083
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1989 Cadillac Eldorado | Base, Biarritz | 4.1L V8, 4.5L V8, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
View related parts
Cadillac Eldorado Alternator Assembly Part Number: 19151862
Product Specifications
- Other Name: Generator, Engine Electrical; Alternator
- Replaces: 01101308, 1101308, 10463397
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Alternator Part Number: 10495419
Product Specifications
- Other Name: Generator Assembly, (Remanufactured)
- Replaces: 10495420
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Alternator Part Number: 10464397
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Eldorado Alternator Assembly Part Number: 10463442
Product Specifications
- Other Name: Generator Assembly, (Remanufactured); Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244774
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464089, 19152131
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244773
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10464426, 19152133, 10464088, 19152130
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2002 Cadillac Eldorado | ESC, ETC | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244763
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463385, 19152107
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1997 Cadillac Eldorado | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244762
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 19152106, 10463377
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1997 Cadillac Eldorado | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244760
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463294, 19152099
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991-1993 Cadillac Eldorado | Base, Biarritz, Spring Edition, Touring | 8 Cyl 4.9 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19244757
Product Specifications
- Other Name: Generator Assembly, (Remanufacture); Generator, Engine Electrical
- Replaces: 10463121, 19152090
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1990 Cadillac Eldorado | Base, Biarritz, Touring | 8 Cyl 4.5 L GAS
View related parts
Cadillac Eldorado Alternator Part Number: 19151889
Product Specifications
- Other Name: Generator, Engine Electrical
- Replaces: 01972724, 1972724
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Cadillac Eldorado | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL

Cadillac Eldorado Alternator

Want to cut long-term maintenance and repair costs? Choose OEM Alternator. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Eldorado parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Eldorado Alternator includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The alternator in Cadillac Eldorado is an important system which performs two functions- the battery charging and electrical system drive while the vehicle is in operation. Its function is to transform mechanical energy of the engine into electrical one, mainly AC, which is later rectified into DC for battery charging and supplying electrical powers to many parts in the car. Cadillac Eldorado alternators normally use a two-part cast aluminum case together with a stator and rotor, a pulley and fan are fixed to the rotor shaft. There have been various kinds of alternators as used over the years, they include those with an external regulator or an internal regulator and the newer versions with the regulator integrated into the PCM or Powertrain Control Module. Special high-output alternators are also offered for specific non-standard Eldorado versions, owing to increased load of electrical equipment due to additional parts.

Cadillac Eldorado Alternator Parts Questions & Experts Answers

Alternator
19244773
Q: How to service and repair the alternator on Cadillac Eldorado?
A:
Begin the Alternator repair by cutting off the negative Battery Cable followed by belt removal and radiator panel and front engine shield removal. The first step involves taking out the upper front bolt from the generator before employing vehicle support and engine bracket loosening from the motor. After disassembling the top bolt and front lower bolt and lower rear bolt and upper rear bolt it's time to remove the duct that exits at the generator's rear end. Start by cutting power connections to the generator through its regulator and battery output as well as heated windshield components (if present). Following this step you can detach the front generator a/c bracket to rotate the generator free from the vehicle. The generator needs to be positioned back into the vehicle before installing the front generator a/c bracket. Secure the generator's battery output cable at 12 n.m (106 lb in) torque when making electrical connections. Place the duct behind the generator where it meets the black generator duct and fasten the upper rear mounting bolt to 50 n.m (37 lb ft), the lower rear mounting bolt to 50 n.m (37 lb ft) and the front mounting bolt to 50 n.m (37 lb ft). Install the rear generator bracket bolt to the engine followed by a torque setting of 50 n.m (37 lb ft), then lower the vehicle. The installation continues with the front engine splash shield followed by the radiator support access panel then mounting the upper front bolt with a torque setting of 47 n.m (35 lb ft). To complete the repair install the accessory Drive Belt while attaching the negative Battery Cable to the battery.
