How to replace the LH Differential Cover and seal on Cadillac SRX?

To replace the Differential carrier cover and seal found at the left side i must first remove the rear Differential. Next, remove the 9 carrier cover bolts and remove the carrier cover from the Differential carrier with the pry tabs (4, 5, 7). Take out the o-ring seal from the cover. For installation, the housing cover o-ring should be put into the groove on the housing cover and it should receive a light coat of oil before installing the housing cover on the housing . Mount the 9 side cover bolts and tighten them using criss-cross pattern with 25 n.m (18 lb ft). Finally, reinstall the rear Differential.

OEM Cadillac SRX Differential Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Differential Covers found

View related parts

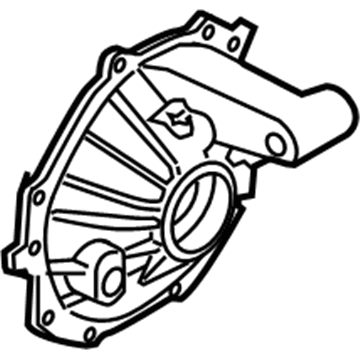

Cadillac SRX Differential Cover
Part Number: 89058619
Product Specifications
- Other Name: Cover, Differential Carrier; Carrier Cover; Cover
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Differential Cover
Part Number: 19256182
Product Specifications
- Other Name: Cover, Differential Carrier; Carrier Cover; Cover
- Replaces: 19121966, 19207629, 89058601
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS

Cadillac SRX Differential Cover

Our website offers an extensive catalog of genuine Cadillac SRX Differential Cover at unbeatable prices. Every OEM Cadillac SRX Differential Cover comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Cadillac SRX Differential Cover Parts Questions & Experts Answers

Differential Cover
19256182
Q: How to replace the LH Differential Cover and seal on Cadillac SRX?
A: To replace the Differential carrier cover and seal found at the left side i must first remove the rear Differential. Next, remove the 9 carrier cover bolts and remove the carrier cover from the Differential carrier with the pry tabs (4, 5, 7). Take out the o-ring seal from the cover. For installation, the housing cover o-ring should be put into the groove on the housing cover and it should receive a light coat of oil before installing the housing cover on the housing . Mount the 9 side cover bolts and tighten them using criss-cross pattern with 25 n.m (18 lb ft). Finally, reinstall the rear Differential.

Related Cadillac SRX Parts

Browse Cadillac SRX Differential Cover by Years

2009 2008 2007 2006 2005 2004
