OEM Cadillac SRX CV Boot
Axle Boot- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
13 CV Boots found

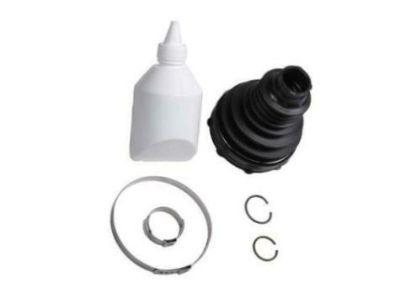

Cadillac SRX Outer Boot, Front
Part Number: 22833444$42.46 MSRP: $72.27You Save: $29.81 (42%)Ships in 1-2 Business Days

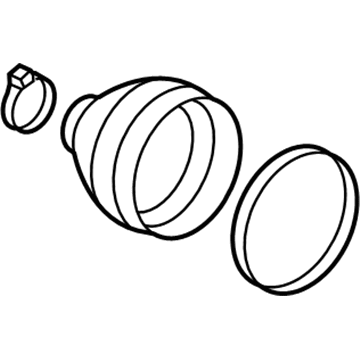

Cadillac SRX Inner Boot, Rear
Part Number: 20894127$40.54 MSRP: $66.80You Save: $26.26 (40%)Ships in 1-2 Business Days

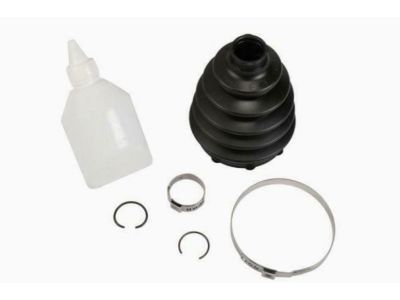

Cadillac SRX Outer Boot, Front
Part Number: 20846097$37.52 MSRP: $61.79You Save: $24.27 (40%)Ships in 1-2 Business Days

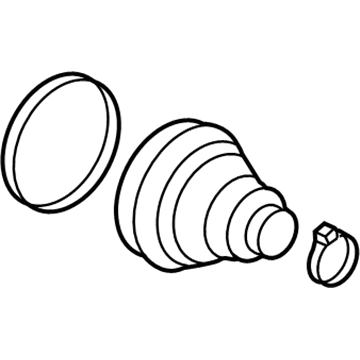

Cadillac SRX Inner Boot, Front
Part Number: 20846096$37.52 MSRP: $61.79You Save: $24.27 (40%)Ships in 1-2 Business Days
Cadillac SRX Inner CV Joint Boot
Part Number: 88957225$63.99 MSRP: $95.95You Save: $31.96 (34%)Ships in 1-2 Business Days
Cadillac SRX Inner Boot, Front
Part Number: 20920176$47.50 MSRP: $78.23You Save: $30.73 (40%)Ships in 1-2 Business Days
Cadillac SRX Outer Boot, Front
Part Number: 13291737$45.72 MSRP: $78.49You Save: $32.77 (42%)Ships in 1-2 Business Days
Cadillac SRX CV Boot
Our website offers an extensive catalog of genuine Cadillac SRX CV Boot at unbeatable prices. Every OEM Cadillac SRX CV Boot comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!
Cadillac SRX CV Boot Parts Questions & Experts Answers
- Q: How to replace the rear CV Boot and CV Joint on the inner drive shaft on Cadillac SRX?A: You should start by removing the rear wheel drive shaft from the vehicle while placing it into a soft jawed vise before securing it. Pay attention to avoid cutting through either the inboard or outboard boot since this action damages the sealing surface and creates early boot wear. The boot clamps need discarding after using a side cutter to remove boot material from the shaft CV Joint and wheel drive assembly. Use a hammer and punch to remove the cv boot cap. Findings of contamination in the interior wheel drive shaft components require a complete replacement of the entire rear wheel drive shaft set. Clean all grease from the joint's inner race, cage and balls then use snap ring pliers to remove the joint race retaining ring before extracting the inner CV Joint assembly with a hammer and brass drift. Check the inner CV Joint before beginning assembly steps. Seat the inner boot and clamp onto the wheel drive shaft and apply lubricant from the service pack while fitting the boot. Use a block of wood or brass drift to put the CV Joint onto the wheel drive shaft after ensuring the boot sits correctly within its grooved position. Use snap ring pliers to install the new CV Joint retaining ring while making sure all internal components stay lubricated then apply lubricant to both ball bearings and cage of the CV Joint. Crank the clamp between the bolts and washers before crimping the joint while checking the boot for correct shape and damage which may necessitate a boot replacement. Tighten the inner and outer boot clamps with pliers j 42572 - until you get a gap measurement of 1.0 (0.040 in) at point (a). Drain the alcohol-based solvent from the cap and let it dry before you place a 3 mm (0.118 in) bead of sealant inside the CV Joint face where the mounting fasteners should align. To install the CV Joint cap use the j 22928-b - installer to rotate the inner joint four or five times until lubricant spreads evenly then remove excess lubricant from around the wheel drive shaft before reinstalling the shaft.
