How to replace the electronic navigation antenna on Cadillac XLR?

To replace the electronic navigation antenna, you need to remove the instrument panel (I/P) trim pad. Next remove the 2 settings of the plastic rivet retainers, which hold the global positioning system (GPS) antenna to the carrier I/P. Then you take the radio off and pull GPS antenna from the retaining clip at the back of the radio followed by taking the GPS antenna loop lead off the HVAC duct work. Route GPS antenna in addition to the coaxial antenna lead from the I/P carrier. For installation, firstly attach the GPS antenna along with the lead of the coaxial to the carrier of the I/p also ensure coaxial lead is being used to pass through the radio. Reconnect the GPS antenna loop lead to the HVAC duct work and secure the GPS antenna to its retaining clip at the rear of the radio. After that, re-install the radio and fix the GPS antenna on the I/P carrier using the 2 plastic rivets. Lastly, reinstall the I/P trim pad.

OEM Cadillac XLR Antenna

Radio Antenna

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Antennas found

View related parts

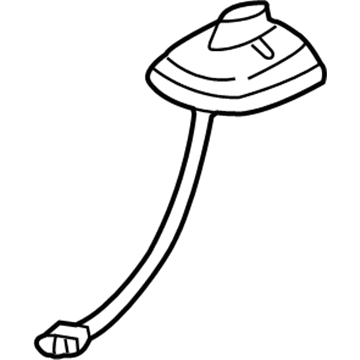

Cadillac XLR Antenna Part Number: 10358187
$247.39 MSRP: $765.22
You Save: $517.83 (68%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Antenna, Power Radio Antenna
- Replaces: 10348720
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts

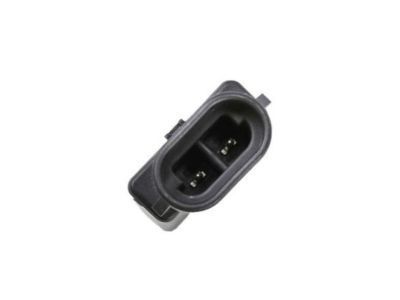

Cadillac XLR Antenna Part Number: 15814166
$40.51 MSRP: $73.32
You Save: $32.81 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Antenna Assembly-Navigation; Antenna, Vehicle Navigation/Information
- Replaces: 10346187
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Antenna Part Number: 25888495
Product Specifications
- Other Name: Antenna, Door Electric And Vacuum Locks; Antenna,Theft Deterrent Or Front/Rear/Side/Intake Object
- Replaces: 10448049
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Antenna Part Number: 20781950
Product Specifications
- Other Name: Antenna Assembly-Mobile Telephone & Vehicle Locating; Antenna, Power Radio Antenna
- Replaces: 10333600
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac XLR Antenna

Want to cut long-term maintenance and repair costs? Choose OEM Antenna. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Antenna includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac XLR Antenna Parts Questions & Experts Answers

Antenna
15814166
Q: How to replace the electronic navigation antenna on Cadillac XLR?
A:
To replace the electronic navigation antenna, you need to remove the instrument panel (I/P) trim pad. Next remove the 2 settings of the plastic rivet retainers, which hold the global positioning system (GPS) antenna to the carrier I/P. Then you take the radio off and pull GPS antenna from the retaining clip at the back of the radio followed by taking the GPS antenna loop lead off the HVAC duct work. Route GPS antenna in addition to the coaxial antenna lead from the I/P carrier. For installation, firstly attach the GPS antenna along with the lead of the coaxial to the carrier of the I/p also ensure coaxial lead is being used to pass through the radio. Reconnect the GPS antenna loop lead to the HVAC duct work and secure the GPS antenna to its retaining clip at the rear of the radio. After that, re-install the radio and fix the GPS antenna on the I/P carrier using the 2 plastic rivets. Lastly, reinstall the I/P trim pad.
