OEM Cadillac XLR Car Speakers

Cadillac XLR Car Speakers Parts and Q&A

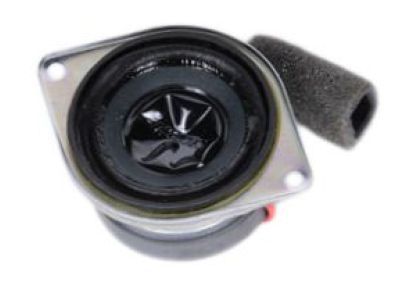

• Front Driver Speaker
  10315183
  Q: How to replace the front door car speakers on Cadillac XLR?

  A:

  Begin by taking off the door trim panel followed by unscrewing the front door speaker assembly from the door keeping the speaker supported throughout removal because its retention comes solely from the screws. The electrical/audio connector needs removal from the front door speaker before you can remove the speaker assembly. Return the front door speaker assembly to the door before you attach its electrical/audio connector. The appropriate screw sequence for installation includes starting with the uppermost screw before moving to the lowermost and finally adding the rest while criss-crossing the pattern then tighten all screws to 2.5 N.m (22 lb in) following that exact sequence. The installation process ends with door trim panel reinstallation.

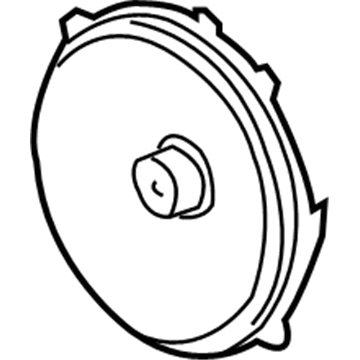

• Rear Speaker
  25798963
  Q: How to change the location of Car Speakers under the passenger seat on Cadillac XLR?

  A:

  Starting the process of passenger seat speaker replacement involves using a plastic flat-bladed tool to disengage the clips under the speaker grille by lifting it upward until the speaker grille can be removed from the seat. The first step requires unfastening the screws which connect the speaker to the seat followed by extracting the speaker and separating the speaker harness lead before taking out the speaker grille retainer. Before starting installation connect the speaker harness lead to the speaker then recover the harness lead inside the seat. Use the 4 screws to mount the speaker onto the seat while tightening them to 2.5 N.m (22 lb in) specifications according to the Fastener Notice in Service Precautions. To finish the installation you should position the speaker grille correctly against the seat before applying pressure that enables the retaining clips to lock into place.
