How to replace the Brake Light Switch on Chevrolet Equinox?

The replacing process for the cruise release switch starts with removing the instrument panel left lower closeout panel followed by disconnecting the cruise brake switch connector. The process begins with counterclockwise rotation of the cruise brake switch to separate it from the switch retainer. Depressing the Brake Pedal will make the operation easier. You should remove the cruise brake retainer from the Brake Pedal assembly while compressing its locking tabs carefully. Apply the retainer installation when placing the indexing arrow in the right direction with both retainer ears positioned at the back side of the bracket. Position the cruise brake switch retainer into the upper hole of the Brake Pedal assembly with the arrow pointing toward 3 o'clock but keep away from the Brake Pedal to prevent brake drag. Insert the cruise brake switch into the retainer until its plunger fully presses down while the electrical connector index notch points to 1 o'clock position before turning the switch clockwise to the travel stop at around 60 degrees. Evaluate the switch position by ensuring that it fits correctly with the electrical connector index at 3 o'clock. The installer should connect the cruise brake switch connector and replace the instrument panel left lower closeout panel before using a scan tool to check the cruise brake switch state in the Engine Control Module (ECM) general information data table for accurate applied and released readings while operating the Brake Pedal.

OEM Chevrolet Equinox Brake Light Switch

Brake Lamp Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Brake Light Switches found

View related parts

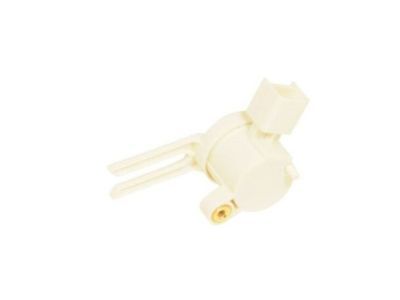

Chevrolet Equinox Stoplamp Switch Part Number: 22625273
$24.98 MSRP: $39.10
You Save: $14.12 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Stop Lamp Switch; Brake Light Switch; Switch, Cruise Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts

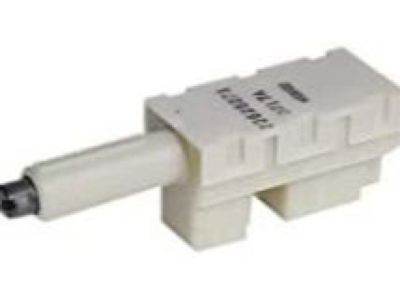

Chevrolet Equinox Clutch Switch Part Number: 13597428
$9.22 MSRP: $17.32
You Save: $8.10 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Brake Pedal Position; Clutch Pedal Position Switch; Brake Light Switch; Stoplamp Switch; Sensor, Stop Lamp Switch; Sensor, Engine Clutch; Sensor, Brake
- Replaced by: 13549051
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Chevrolet Equinox | LS, LT, LTZ | 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS
View related parts

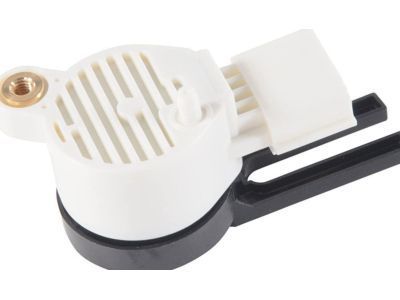

Chevrolet Equinox Stoplamp Switch Part Number: 13597424
$30.61 MSRP: $57.50
You Save: $26.89 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Brake Pedal Position; Accelerator Pedal Position Sensor; Brake Light Switch; Pedal Travel Sensor; Sensor; Sensor, Stop Lamp Switch; Sensor, Brake
- Replaced by: 13564169
- Replaces: 13583371
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2023 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Stoplamp Switch Part Number: 13597423
$35.81 MSRP: $67.24
You Save: $31.43 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-Brake Pedal Position; Accelerator Pedal Position Sensor; Brake Light Switch; Pedal Travel Sensor; Sensor; Sensor, Stop Lamp Switch; Sensor, Brake
- Replaced by: 13564168
- Replaces: 13583370
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS

Chevrolet Equinox Brake Light Switch

Want to cut long-term maintenance and repair costs? Choose OEM Brake Light Switch. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Brake Light Switch includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Brake Light Switch is an immensely important part that switches 'ON' the brake lights in Chevrolet Equinox cars whenever the brakes are applied by the driver to signify to other drivers that the car is slowing down or is coming to a halt. This mechanism enhances safety on the road since those people behind the Equinox car will be made aware of the car's movements. It is important to note that though there can be differences in the types or style of Brake Light Switches installed on the Equinox models since the production yr, the basic operation of the switch does not change.

Chevrolet Equinox Brake Light Switch Parts Questions & Experts Answers

Stoplamp Switch
22625273
Q: How to replace the Brake Light Switch on Chevrolet Equinox?
A:
The replacing process for the cruise release switch starts with removing the instrument panel left lower closeout panel followed by disconnecting the cruise brake switch connector. The process begins with counterclockwise rotation of the cruise brake switch to separate it from the switch retainer. Depressing the Brake Pedal will make the operation easier. You should remove the cruise brake retainer from the Brake Pedal assembly while compressing its locking tabs carefully. Apply the retainer installation when placing the indexing arrow in the right direction with both retainer ears positioned at the back side of the bracket. Position the cruise brake switch retainer into the upper hole of the Brake Pedal assembly with the arrow pointing toward 3 o'clock but keep away from the Brake Pedal to prevent brake drag. Insert the cruise brake switch into the retainer until its plunger fully presses down while the electrical connector index notch points to 1 o'clock position before turning the switch clockwise to the travel stop at around 60 degrees. Evaluate the switch position by ensuring that it fits correctly with the electrical connector index at 3 o'clock. The installer should connect the cruise brake switch connector and replace the instrument panel left lower closeout panel before using a scan tool to check the cruise brake switch state in the Engine Control Module (ECM) general information data table for accurate applied and released readings while operating the Brake Pedal.
