How to replace the power brake booster on Chevrolet Express 2500?

To replace the power Brake Booster, the park brake should be applied and the wheels blocked first. Do not remove the brake pipes, be able to remove the master cylinder and support it with heavy mechanics wire or equivalent. De-pair the Brake Booster inlet hose fitting and check the state of the o-ring seal, changing it if required. Secondly, make sure that you disconnect the power Brake Booster outlet hose fitting and check out the o-ring seal of the same also. Torque the bolt holding the power Brake Booster Pushrod retaining clip in place and remove the clip. Separate the stop lamp switch electric connector, disconnect the power Brake Booster Pushrod, and separate the stop lamp switch. Take off the power Brake Booster nuts and the power Brake Booster, gasket, and inspect the gasket for any damage, and replace it if needed. First installation is the new power Brake Booster gasket then power Brake Booster. Put the power Brake Booster nuts and tighten them at 36 nm (27 lb ft). Use gm p/n 12345994 (Canadian P/N 10953501) as a thin coat of high temperature lubricant on the brake pedal pivot pin. You should install the stoplamp switch installing and hooking the power Brake Booster Pushrod, and then connect the stoplamp switch with an electric connector. Install the power Brake Booster Pushrod retaining clip and turn it 360° to make sure it is fully engaged at the brake pedal pivot bar groove. Hook the power Brake Booster Pushrod retaining clip bolt into the fixture and tighten it to 10 nm (89 lb in). Make sure that the o-ring seals are correctly placed on the each of the power Brake Booster inlet and outlet hose fittings and then fit the power Brake Booster outlet hose fitting and tighten to 33 nm (24 lb ft) including the inlet hose fitting properly to the same torque. Last but not least, bolt in the master cylinder and bleed the power steering system.

OEM Chevrolet Express 2500 Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Brake Boosters found

View related parts

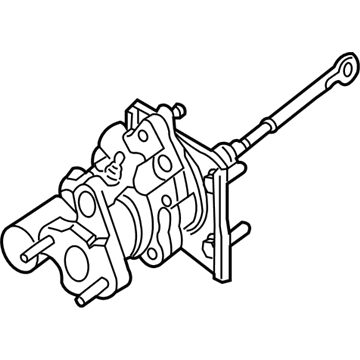

Chevrolet Express 2500 Brake Booster Part Number: 19371364
$322.73 MSRP: $630.22
You Save: $307.49 (49%)
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Hydro-Boost Assembly; Booster Assembly; Power Brake Booster
- Replaces: 25790711, 20774171, 20941664
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2011 Chevrolet Express 2500 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Brake Booster Part Number: 19371357
$621.92 MSRP: $1217.66
You Save: $595.74 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Hydro-Boost Assembly; Booster Assembly; Power Brake Booster
- Replaces: 15225283, 15218659, 15814983, 15870648
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Brake Booster Part Number: 84474523
$444.37 MSRP: $777.64
You Save: $333.27 (43%)
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Hydro-Boost Assembly; Booster Assembly; Power Brake Booster
- Replaces: 22869378, 84031702, 22800156
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2024 Chevrolet Express 2500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 2500 Master Cylinder Part Number: 85105169
$135.29 MSRP: $264.88
You Save: $129.59 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder, Brake Master Cylinder
- Replaces: 84397948, 84543808, 84680664, 84873078
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2024 Chevrolet Express 2500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 2500 Brake Booster Part Number: 19371359
$415.06 MSRP: $743.00
You Save: $327.94 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Hydro-Boost Assembly; Booster Assembly; Power Brake Booster
- Replaces: 15112793, 15870649, 15225284, 15814984, 25739959, 25749265
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2007 Chevrolet Express 2500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 2500 Brake Booster Part Number: 18029961
Product Specifications
- Other Name: Booster, Power Brake (Vacuum); Booster Assembly; Booster, Vacuum Power Brake
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 2500 Brake Booster Part Number: 15192190
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster Assembly
- Replaces: 15005467, 15969686, 15757256
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 Chevrolet Express 2500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL

Chevrolet Express 2500 Brake Booster

Want to cut long-term maintenance and repair costs? Choose OEM Brake Booster. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Express 2500 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Express 2500 Brake Booster includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Express 2500 Brake Booster Parts and Q&A

Brake Booster
19371364
Q: How to replace the power brake booster on Chevrolet Express 2500?
A:
To replace the power Brake Booster, the park brake should be applied and the wheels blocked first. Do not remove the brake pipes, be able to remove the master cylinder and support it with heavy mechanics wire or equivalent. De-pair the Brake Booster inlet hose fitting and check the state of the o-ring seal, changing it if required. Secondly, make sure that you disconnect the power Brake Booster outlet hose fitting and check out the o-ring seal of the same also. Torque the bolt holding the power Brake Booster Pushrod retaining clip in place and remove the clip. Separate the stop lamp switch electric connector, disconnect the power Brake Booster Pushrod, and separate the stop lamp switch. Take off the power Brake Booster nuts and the power Brake Booster, gasket, and inspect the gasket for any damage, and replace it if needed. First installation is the new power Brake Booster gasket then power Brake Booster. Put the power Brake Booster nuts and tighten them at 36 nm (27 lb ft). Use gm p/n 12345994 (Canadian P/N 10953501) as a thin coat of high temperature lubricant on the brake pedal pivot pin. You should install the stoplamp switch installing and hooking the power Brake Booster Pushrod, and then connect the stoplamp switch with an electric connector. Install the power Brake Booster Pushrod retaining clip and turn it 360° to make sure it is fully engaged at the brake pedal pivot bar groove. Hook the power Brake Booster Pushrod retaining clip bolt into the fixture and tighten it to 10 nm (89 lb in). Make sure that the o-ring seals are correctly placed on the each of the power Brake Booster inlet and outlet hose fittings and then fit the power Brake Booster outlet hose fitting and tighten to 33 nm (24 lb ft) including the inlet hose fitting properly to the same torque. Last but not least, bolt in the master cylinder and bleed the power steering system.
