OEM Chevrolet Express 2500 Steering Angle Sensor

Chevrolet Express 2500 Steering Angle Sensor Parts Questions & Experts Answers

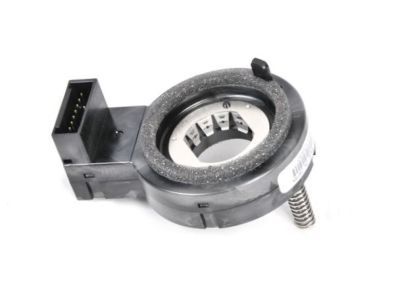

• Angle Sensor
  26109034
  Q: How to service and repair the Steering Angle Sensor on Chevrolet Express 2500?

  A: Disabling the sir system needs to be the first step when performing maintenance on the Steering Angle Sensor. Before you detach the Steering Column or intermediate shaft always confirm that the Steering Column is in lock position and the front wheels point straight ahead to protect both the sir coil assembly and its alignment. Lock your Steering Column through the use of the Steering Column anti-rotation pin (J 42640). Install a pin-sized between 1.0-2.0 mm when maintaining the sensor's correct positioning before removing it from the steering shaft for reuse. If a sensor cannot be centered properly following removal it needs to be discarded. Better access is achieved by removing the sensor connector followed by removing the sensor retainer from the steering shaft. When reusing the sensor pull it out straight from the bearing adapter until reaching the vicinity of the steering shaft while keeping the pin installed until final reinstallation. A fresh sensor requires simple extraction from its bearing adapter position on the steering shaft. When positioning the sensor for installation keep it touching the steering shaft and the bearing adapter while avoiding any force that would tilt the sensor. The device needs calibration at a 3.00 mm distance from where it touches the bearing adapter. Before reinstalling the Steering Column install the sensor retainer after removing the connecting pin. To enable sir system functionality remove the Steering Column anti-rotation pin (J 42640) lastly.
