How to replace the A/C Compressor Cut-Out Switches with RPO CODE HU6 on Chevrolet Express 3500?

Recovery of refrigerant then cleaning the switch area should be performed before withdrawing the snap ring. First detach the electrical connector from the a/c high pressure switch before using the j 5403 snap ring pliers (J 5403) for snap ring removal. Next use j 9553-01 o-ring remover (J 9553-01) to remove the old o-ring seal from the switch cavity after taking out the a/c high pressure switch from the compressor. Examine the switch cavity together with o-ring groove to check for any dirt presence and remove foreign substances as needed. Insert a new o-ring into the switch cavity by placing it into the groove and lubricate it with new 525 viscosity refrigerant oil. The control switch requires lubrication with the same oil before placement into the cavity until the switch reaches the bottom. Fitting the snap ring requires j 5403 snap ring pliers (J 5403) to position the high part of the curved sides next to the switch housing and the ring inside the retaining groove properly. The vehicle receiving an a/c system evacuation then charging and leak testing with the j 39400-a halogen leak detector (J 39400-A).

OEM Chevrolet Express 3500 A/C Compressor Cut-Out Switches

HVAC Cut-Out Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 A/C Compressor Cut-Out Switches found

View related parts
Chevrolet Express 3500 A/C Switch
Part Number: 15144494
$37.29 MSRP: $76.63
You Save: $39.34 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Air Conditioner Compressor; A/C Cut-Out Switch; HVAC Pressure Switch; System Switch; Pressure Cycling Switch; Lower Pressure Cut-Off; A/C Electric Temperature Control; A/C Compressor Switch.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2024 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View related parts

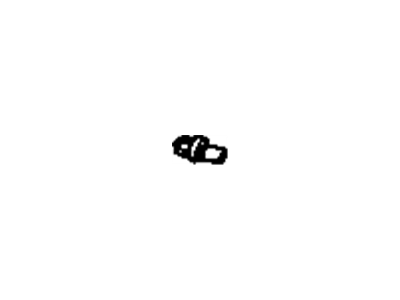

Chevrolet Express 3500 Pressure Relief Valve, Green Line
Part Number: 13587668
$47.40 MSRP: $97.41
You Save: $50.01 (52%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Assembly-A/C Refrigerant Pressure; A/C Compressor Cut-Out Switch; HVAC Pressure Switch; HVAC System Switch; Pressure Switch; Refrigerant Pressure Sensor; Cut-Off Switch; A/C Electric Temperature Sensor; A/C Compressor Switch.
- Replaces: 13502759, 22634172, 13502758, 22678731
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2021 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

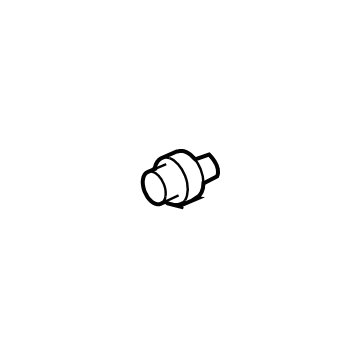

Chevrolet Express 3500 High Pressure Cut-Off Switch
Part Number: 89019183
$48.11 MSRP: $98.86
You Save: $50.75 (52%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Switch Assembly, A/C Compressor High Pressure Cut Off; HVAC Pressure Switch; Pressure Cut-Off Switch; A/C Electric Temperature & Motor Control; A/C Compressor Switch Kit.
- Replaces: 02724727, 02724863, 2724727, 2724863
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts
Chevrolet Express 3500 A/C Switch
Part Number: 15035084
$46.28 MSRP: $86.89
You Save: $40.61 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Air Conditioner Compressor; A/C Cut-Out Switch; HVAC Pressure Switch; System Switch; Pressure Cycling Switch; Switch, A/C Electric Temperature And Motor Control; Switch, A/C Compressor (Internal Parts)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2008 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
View related parts
Chevrolet Express 3500 Pressure Cycling Switch
Part Number: 52473139
$27.39 MSRP: $51.44
You Save: $24.05 (47%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Switch, Air Conditioner Compressor; A/C Cut-Out Switch; HVAC Pressure Switch; System Switch; Lower Pressure Cut-Off Switch; Switch, A/C Compressor (Internal Parts)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1999 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
Chevrolet Express 3500 Multi-Purpose Pressure Sensor
Part Number: 13511536
$7.35 MSRP: $13.80
You Save: $6.45 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Conditioner Refrigerant Pressure Sensor Assembly; Pressure Sensor; High Pressure Thermostatic Switch; A/C Temp & Motor Sensor; Compressor & Evaporator Sensors
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS

Chevrolet Express 3500 A/C Compressor Cut-Out Switches

Our website offers an extensive catalog of genuine Chevrolet Express 3500 A/C Compressor Cut-Out Switches at unbeatable prices. Every OEM Chevrolet Express 3500 A/C Compressor Cut-Out Switches comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Express 3500 A/C Compressor Cut-Out Switches Parts Questions & Experts Answers

Pressure Relief Valve, Green Line
13587668
Q: How to replace the A/C Compressor Cut-Out Switches with RPO CODE HU6 on Chevrolet Express 3500?
A: Recovery of refrigerant then cleaning the switch area should be performed before withdrawing the snap ring. First detach the electrical connector from the a/c high pressure switch before using the j 5403 snap ring pliers (J 5403) for snap ring removal. Next use j 9553-01 o-ring remover (J 9553-01) to remove the old o-ring seal from the switch cavity after taking out the a/c high pressure switch from the compressor. Examine the switch cavity together with o-ring groove to check for any dirt presence and remove foreign substances as needed. Insert a new o-ring into the switch cavity by placing it into the groove and lubricate it with new 525 viscosity refrigerant oil. The control switch requires lubrication with the same oil before placement into the cavity until the switch reaches the bottom. Fitting the snap ring requires j 5403 snap ring pliers (J 5403) to position the high part of the curved sides next to the switch housing and the ring inside the retaining groove properly. The vehicle receiving an a/c system evacuation then charging and leak testing with the j 39400-a halogen leak detector (J 39400-A).
