How to replace the fuel filler hose without the left-hand door on Chevrolet Express 3500?

The Fuel Filler Hose replacement procedure starts with cleaning all components from the fuel pipe and hose connections in addition to their surrounding regions to shield the fuel system from contamination. Pull the fuel cap from its position while letting the fuel flow lower than the fuel tank fill hose. First remove the 2 retaining bolts and push-pin attached to the filler neck before lifting up the vehicle. Before removing the fuel fill pipe assembly the technician needs to remove its grounded strap bolt then loosen the fuel fill hose clamp before disconnecting the fuel fill hose from the fuel fill pipe. To install the fuel fill pipe users should connect the fuel fill hose and guide it into the housing before tightening the clamp at 2.75 n.m (24 lb in). Lower the vehicle afterward and tighten the fuel filler tube ground strap bolt to 8 n.m (70 lb in). Together with tank refilling, install the fuel fill pipe housing bolts and push-pin then tighten the bolts to 6 n.m (53 lb in).

OEM Chevrolet Express 3500 Fuel Filler Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Fuel Filler Hoses found

View related parts

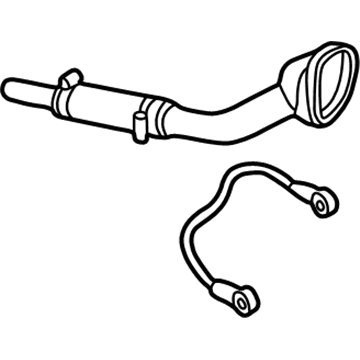

Chevrolet Express 3500 Filler Pipe
Part Number: 20979211
$343.75 MSRP: $513.84
You Save: $170.09 (34%)
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Replaces: 15846495, 20829348, 20934914, 25957106, 25849110, 25957107, 15117948, 25849098
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2020 Chevrolet Express 3500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts

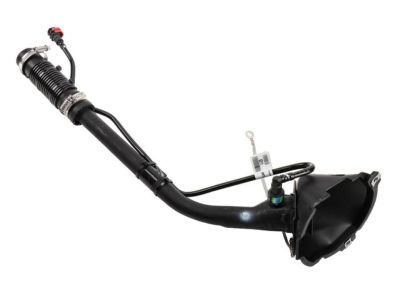

Chevrolet Express 3500 Filler Pipe
Part Number: 19299053
$179.77 MSRP: $268.71
You Save: $88.94 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe, Fuel Tank Filler
- Replaces: 25755765
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chevrolet Express 3500 | Base, LS | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts

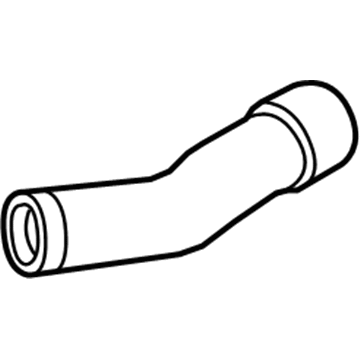

Chevrolet Express 3500 Filler Neck
Part Number: 84136770
$98.68 MSRP: $146.85
You Save: $48.17 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts

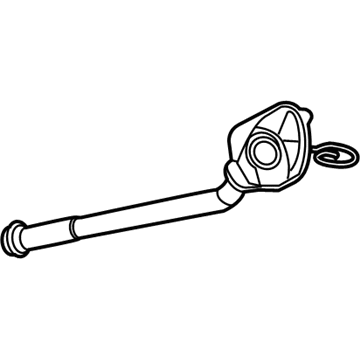

Chevrolet Express 3500 Filler Pipe
Part Number: 20959567
$96.40 MSRP: $143.45
You Save: $47.05 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Chevrolet Express 3500 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
View related parts

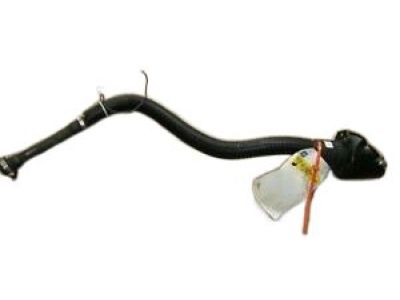

Chevrolet Express 3500 Filler Hose
Part Number: 20955364
$90.09 MSRP: $140.98
You Save: $50.89 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Evaporation Emission System (Fuel Tank End); Fuel Filler Hose; Hose, Evaporation Emission System(Fuel Tank End)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 85522774
$114.89 MSRP: $171.74
You Save: $56.85 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler (W/Filler Hose); Pipe, Fuel Tank Filler
- Replaces: 86775566, 84806585, 84901804
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Chevrolet Express 3500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 85522773
$163.31 MSRP: $244.12
You Save: $80.81 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler (W/Filler Hose); Filler Pipe; Pipe, Fuel Tank Filler
- Replaces: 84901807, 84806588
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Express 3500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Express 3500 Vent Hose
Part Number: 84136766
$36.90 MSRP: $65.89
You Save: $28.99 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Fuel Tank Filler Vent; Hose, Evaporation Emission System(Fuel Tank End)
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2022 Chevrolet Express 3500 | Base, LS, LT | 4 Cyl 2.8 L DIESEL
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 25828448
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Replaces: 15912248, 15839793
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Express 3500 | Base | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 25760228
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chevrolet Express 3500 | Base, LS | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 15760286
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler *Marked Print; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2002 Chevrolet Express 3500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 15760284
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler *Marked Print; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Replaces: 15156236
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2002 Chevrolet Express 3500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 15156234
Product Specifications
- Other Name: Pipe; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997 Chevrolet Express 3500 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 15030689
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler *Marked Print; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2002 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 8.1 L GAS
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 15022822
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1999 Chevrolet Express 3500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 3500 Filler Neck
Part Number: 15022818
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Fuel Tank Filler Neck; Fuel Filler Hose; Filler Pipe; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 Chevrolet Express 3500 | Base, LS | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 15015616
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 Chevrolet Express 3500 | Base, LS | 8 Cyl 6.5 L DIESEL
View related parts
Chevrolet Express 3500 Filler Pipe
Part Number: 22940655
$417.50 MSRP: $624.08
You Save: $206.58 (34%)
Product Specifications
- Other Name: Pipe Assembly-Fuel Tank Filler; Pipe, Fuel Tank Filler
- Replaces: 20979210, 20934913, 25828444, 25957109, 25849100, 15117935
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2020 Chevrolet Express 3500 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS

Chevrolet Express 3500 Fuel Filler Hose

Our website offers an extensive catalog of genuine Chevrolet Express 3500 Fuel Filler Hose at unbeatable prices. Every OEM Chevrolet Express 3500 Fuel Filler Hose comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Express 3500 Fuel Filler Hose Parts Questions & Experts Answers

Filler Pipe
19299053
Q: How to replace the fuel filler hose without the left-hand door on Chevrolet Express 3500?
A: The Fuel Filler Hose replacement procedure starts with cleaning all components from the fuel pipe and hose connections in addition to their surrounding regions to shield the fuel system from contamination. Pull the fuel cap from its position while letting the fuel flow lower than the fuel tank fill hose. First remove the 2 retaining bolts and push-pin attached to the filler neck before lifting up the vehicle. Before removing the fuel fill pipe assembly the technician needs to remove its grounded strap bolt then loosen the fuel fill hose clamp before disconnecting the fuel fill hose from the fuel fill pipe. To install the fuel fill pipe users should connect the fuel fill hose and guide it into the housing before tightening the clamp at 2.75 n.m (24 lb in). Lower the vehicle afterward and tighten the fuel filler tube ground strap bolt to 8 n.m (70 lb in). Together with tank refilling, install the fuel fill pipe housing bolts and push-pin then tighten the bolts to 6 n.m (53 lb in).
