How to replace the evaporator outlet A/C hose on Chevrolet Tracker?

Refrigerant recovery and discharge operations need to occur first before changing the evaporator outlet tube. Start by taking out the front grille with the air cleaner hose before sliding the evap canister from its bracket. Take off the bolt from the expansion valve while rotating the plate counterclockwise to detach the evaporator outlet tube from the expansion valve. Start by uninstalling the fitting located on the compressor suction pipe and detach the two bolts mounting the evaporator outlet tube hold-down retainers. Pull out the evaporator outlet tube from its mounting position on the vehicle body retainers before removing it from the vehicle. New o-rings coated with mineral base 525 viscosity refrigerant oil need to be installed before the evaporator outlet tube is put back into the vehicle so it can be secured to the body mounted retainers and the expansion valve. The plate should be slid in a clockwise direction and the bolt must be tightened to 35 n.m (26 lb ft) torque value. Secure the evaporator outlet tube to the compressor suction hose through a fitting whose torque should be set at 35 n.m (26 lb ft). First reinstall both bolts onto the evaporator outlet tube hold-down retainers before putting back the evap canister along with the air cleaner hose and front grille assembly. Evacuation and recharging of the air conditioning system will follow before performing a refrigerant leak test through system operation.

OEM Chevrolet Tracker A/C Hose

Air Conditioning Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 A/C Hoses found

View related parts

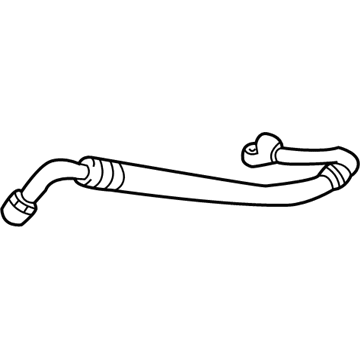

Chevrolet Tracker Suction Pipe
Part Number: 30025441
Product Specifications
- Other Name: Tube, Air Conditioner Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts

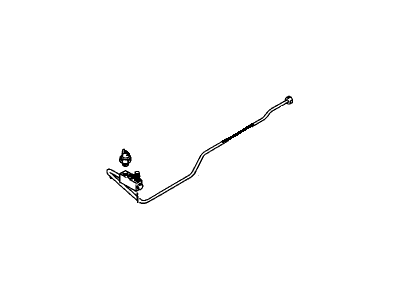

Chevrolet Tracker Discharge Hose
Part Number: 30026935
Product Specifications
- Other Name: Hose, Air Conditioner Compressor And Condenser; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor And Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 Chevrolet Tracker | Base, LT, ZR2 | 4 Cyl 2.0 L GAS
View related parts

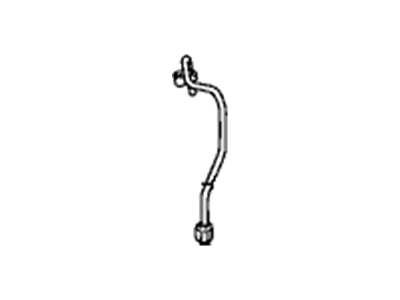

Chevrolet Tracker Suction Pipe
Part Number: 30025955
Product Specifications
- Other Name: Tube, Air Conditioner Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Tracker | Base, LT, ZR2 | 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts

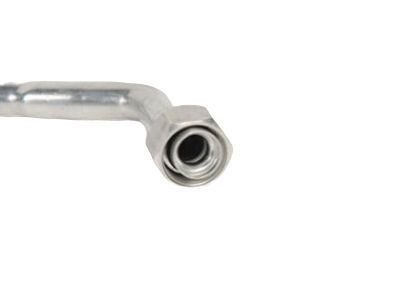

Chevrolet Tracker Suction Hose
Part Number: 30025287
Product Specifications
- Other Name: Hose, Hydraulic Steering Gear Pressure; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Tracker | Base, LT, ZR2 | 6 Cyl 2.5 L GAS
View related parts

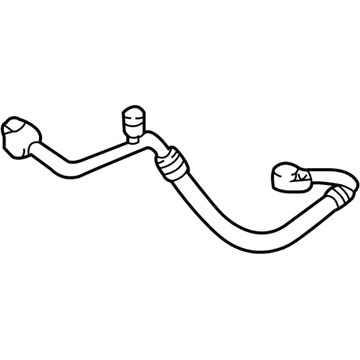

Chevrolet Tracker Discharge Hose
Part Number: 30018760
Product Specifications
- Other Name: AC Hose; A/C Refrigerant Liquid Hose; A/C Hose; Hose; Hose, A/C Compressor And Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts

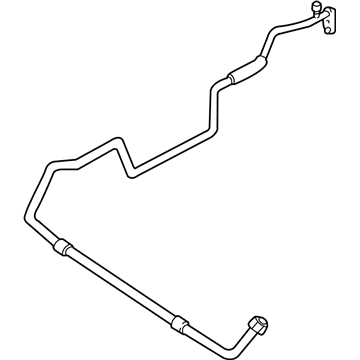

Chevrolet Tracker Suction Hose
Part Number: 30014370
Product Specifications
- Other Name: Hose, Air Conditioner Compressor Suction And Discharge; A/C Refrigerant Liquid Hose; A/C Hose; Hose; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts

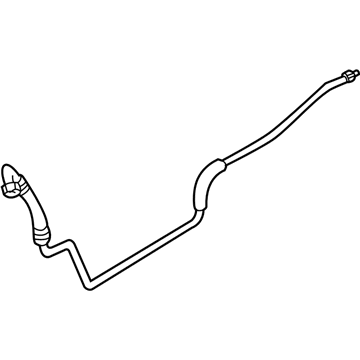

Chevrolet Tracker Tube
Part Number: 30011745
Product Specifications
- Other Name: Tube, A/C Receiver & Dehydrator; A/C Accumulator Tube Outlet; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts

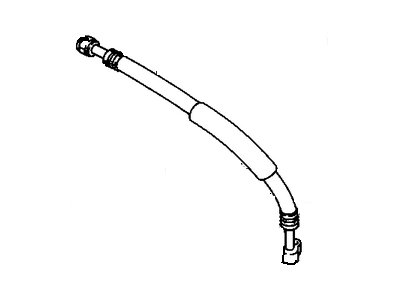

Chevrolet Tracker Tube
Part Number: 30011744
Product Specifications
- Other Name: Tube, Air Conditioner Refrigerant (All Metal); Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Tracker Pipe
Part Number: 96068766
Product Specifications
- Other Name: Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Tracker Suction Hose
Part Number: 30026933
Product Specifications
- Other Name: Hose, Hydraulic Steering Gear Pressure; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 Chevrolet Tracker | Base, LT, ZR2 | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Tracker Liquid Line
Part Number: 30025440
Product Specifications
- Other Name: Tube, Air Conditioner Evaporator; A/C Refrigerant Liquid Hose; A/C Hose; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Tracker | Base, LSi, LT, ZR2 | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS, 6 Cyl 2.5 L GAS
View related parts
Chevrolet Tracker Discharge Hose
Part Number: 30025289
Product Specifications
- Other Name: Hose, Air Conditioner Compressor And Condenser; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor And Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Tracker | Base, LT, ZR2 | 6 Cyl 2.5 L GAS
View related parts
Chevrolet Tracker Discharge Hose
Part Number: 30024910
Product Specifications
- Other Name: Hose, Air Conditioner Compressor And Condenser; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor And Condenser
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2001 Chevrolet Tracker | Base, LSi, LT, ZR2 | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Tracker Suction Hose
Part Number: 30024909
Product Specifications
- Other Name: Hose, Hydraulic Steering Gear Pressure; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Tracker Suction Hose
Part Number: 30024908
Product Specifications
- Other Name: Hose, Hydraulic Steering Gear Pressure; A/C Refrigerant Liquid Hose; A/C Hose; Hose, A/C Compressor Suction And Discharge
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2001 Chevrolet Tracker | Base, LSi, LT, ZR2 | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Tracker Tube
Part Number: 30011746
Product Specifications
- Other Name: Tube, A/C Receiver & Dehydrator; Tube, A/C Evaporator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 Chevrolet Tracker | Base, LSi | 4 Cyl 1.6 L GAS

Chevrolet Tracker A/C Hose

Our website offers an extensive catalog of genuine Chevrolet Tracker A/C Hose at unbeatable prices. Every OEM Chevrolet Tracker A/C Hose comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Tracker A/C Hose Parts Questions & Experts Answers

Suction Pipe
30025441
Q: How to replace the evaporator outlet A/C hose on Chevrolet Tracker?
A: Refrigerant recovery and discharge operations need to occur first before changing the evaporator outlet tube. Start by taking out the front grille with the air cleaner hose before sliding the evap canister from its bracket. Take off the bolt from the expansion valve while rotating the plate counterclockwise to detach the evaporator outlet tube from the expansion valve. Start by uninstalling the fitting located on the compressor suction pipe and detach the two bolts mounting the evaporator outlet tube hold-down retainers. Pull out the evaporator outlet tube from its mounting position on the vehicle body retainers before removing it from the vehicle. New o-rings coated with mineral base 525 viscosity refrigerant oil need to be installed before the evaporator outlet tube is put back into the vehicle so it can be secured to the body mounted retainers and the expansion valve. The plate should be slid in a clockwise direction and the bolt must be tightened to 35 n.m (26 lb ft) torque value. Secure the evaporator outlet tube to the compressor suction hose through a fitting whose torque should be set at 35 n.m (26 lb ft). First reinstall both bolts onto the evaporator outlet tube hold-down retainers before putting back the evap canister along with the air cleaner hose and front grille assembly. Evacuation and recharging of the air conditioning system will follow before performing a refrigerant leak test through system operation.
