How to replace the front wheel bearing, hub, and seal on a 4WD on GMC Yukon XL 2500?

Start by suspending the 4wd vehicle and remove its tire and wheel. Then move on to take off the rotor before replacing the Wheel Hub assembly including bearing and seal. You must remove the wheel drive shaft nut retaining cover and unfasten bolt connections between the Wheel Speed Sensor and Steering Knuckle. A fresh nut must replace the wheel drive shaft during installation. First detach the retaining nut and washer from the wheel driveshaft before you unplug the wheel drive shaft from the Wheel Hub using the axle remover (J 45859). Take first the two 15-series bolts and then unthread all Wheel Hub and bearing bolts for model numbers 25 through 35. The process begins by removing the Wheel Hub, bearing and splash shield from the vehicle. Also take out the o-ring seal from the Steering Knuckle bore for 25/35 series. Check the o-ring seal for damage and reinstall it when you find breaks, dryness, compression set, nicks, or cuts. Before fitting make sure to eliminate all dirt and rust from the Steering Knuckle bore as well as the hub and bearing system then apply Wheel Bearing grease or an equivalent product to the Steering Knuckle bore. Secure the Wheel Speed Sensor mounting bolt at 18 nm (13 ft. Lbs.) while fitting the o-ring to the Steering Knuckle of the 25/35 series. Begin by attaching the Wheel Hub and bearing with splash shield designated for 25/35 series. Proceed to install the Wheel Hub and bearing combined with its splash shield for the 15 series. Secure all Wheel Hub and bearing mounting bolts for 15 series and 25/35 series vehicles by tightening Wheel Hub bolts against knuckles to 180 nm (133 foot pounds). Fit the wheel drive shaft assembly nut with washer at the Wheel Hub and bearing and tighten it to 240 nm (177 ft. Lbs.). Reassemble the Wheel Speed Sensor and brake hose mounting bracket bolt to the Steering Knuckle while securing the brake hose clip bolt at 12 nm (106 inch lbs.). Install the rotor, tire, and wheel afterward and lower the vehicle.

OEM GMC Yukon XL 2500 Wheel Bearing

Hub Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Wheel Bearings found

View related parts
GMC Yukon XL 2500 Wheel Bearing, Rear
Part Number: 12479031
$49.62 MSRP: $96.32
You Save: $46.70 (49%)
ADD TO CART
Product Specifications
- Other Name: Bearing, Rear Axle Shaft; Wheel Bearing Kit; Axle Bearing; Axle Bearings; Shaft Bearings; Outer Bearing; Bearing; Bearing, Rear Wheel
- Position: Rear
- Replaces: 09442126, 9442126
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Output Shaft Bearing, Front
Part Number: 26066885
$30.31 MSRP: $56.92
You Save: $26.61 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing, Front Axle; Differential Pinion Bearing; Wheel Bearing; Axle Bearing; Inner Pinion Bearing; Bearing, Front Axle And Axle Center
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013, 2000-2005 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Wheel Bearing
Part Number: 9439561
$72.53 MSRP: $131.28
You Save: $58.75 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Wheel Bearing; Axle Bearing; Axle Bearings; Shaft Bearings; Outer Bearing; Bearing; Bearing, Rear Axle Shaft; Bearing, Rear Wheel
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2007 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Wheel Bearing
Part Number: 9436881
$76.25 MSRP: $145.36
You Save: $69.11 (48%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing, Differential; Differential Pinion Bearing; Differential Bearing; Axle Bearings; Shaft; Inner; Side; Differential Gear; Front Wheel; Rear Wheel; Nut.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013, 2000-2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts
GMC Yukon XL 2500 Wheel Bearing
Part Number: 9428908
$69.42 MSRP: $98.04
You Save: $28.62 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing, Rear Wheel Outer; Axle Bearings, Shaft Bearings, Grease Cap, Outer Bearing, Bearing Assembly, Front Wheel Outer, Rear Wheel.
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013, 2002-2006 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts

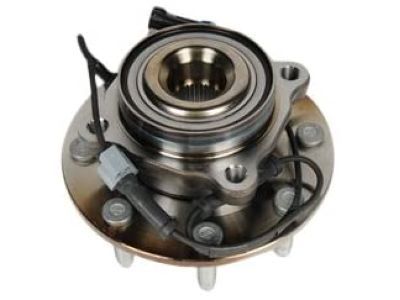

GMC Yukon XL 2500 Front Hub
Part Number: 84856653
$238.85 MSRP: $463.56
You Save: $224.71 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Assembly-Front Wheel (W/ Bearing & Wheel Speed Sensor); Wheel Hub Repair Kit; Wheel Bearing; Axle Bearing; Wheel Hub; Hub & Bearing; Hub, Front Wheel
- Position: Front
- Replaces: 10393170, 20883242, 84356642, 25819677, 22841380
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Hub, Rear
Part Number: 15894423
$231.57 MSRP: $415.38
You Save: $183.81 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Assembly-Rear Wheel; Hub, Rear Wheel
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Front Hub
Part Number: 20980075
$424.36 MSRP: $761.18
You Save: $336.82 (45%)
Product Specifications
- Other Name: Hub Assembly-Front Wheel (W/ Bearing & Sensor); Wheel Bearing & Hub Repair Kit.; Hub & Bearing; Hub; Hub, Front Wheel
- Position: Front
- Replaces: 15910968, 20835869, 25964540
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon XL 2500 Hub & Bearing, Front
Part Number: 15719007
Product Specifications
- Other Name: Hub Assembly-Front Wheel (W/Wheel Speed Sensor); Wheel Bearing & Hub Repair Kit.; Hub, Front Wheel
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000 GMC Yukon XL 2500 | SLE, SLT | 8 Cyl 6.0 L GAS

GMC Yukon XL 2500 Wheel Bearing

Our website offers an extensive catalog of genuine GMC Yukon XL 2500 Wheel Bearing at unbeatable prices. Every OEM GMC Yukon XL 2500 Wheel Bearing comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

GMC Yukon XL 2500 Wheel Bearing Parts Questions & Experts Answers

Wheel Bearing
9436881
Q: How to replace the front wheel bearing, hub, and seal on a 4WD on GMC Yukon XL 2500?
A: Start by suspending the 4wd vehicle and remove its tire and wheel. Then move on to take off the rotor before replacing the Wheel Hub assembly including bearing and seal. You must remove the wheel drive shaft nut retaining cover and unfasten bolt connections between the Wheel Speed Sensor and Steering Knuckle. A fresh nut must replace the wheel drive shaft during installation. First detach the retaining nut and washer from the wheel driveshaft before you unplug the wheel drive shaft from the Wheel Hub using the axle remover (J 45859). Take first the two 15-series bolts and then unthread all Wheel Hub and bearing bolts for model numbers 25 through 35. The process begins by removing the Wheel Hub, bearing and splash shield from the vehicle. Also take out the o-ring seal from the Steering Knuckle bore for 25/35 series. Check the o-ring seal for damage and reinstall it when you find breaks, dryness, compression set, nicks, or cuts. Before fitting make sure to eliminate all dirt and rust from the Steering Knuckle bore as well as the hub and bearing system then apply Wheel Bearing grease or an equivalent product to the Steering Knuckle bore. Secure the Wheel Speed Sensor mounting bolt at 18 nm (13 ft. Lbs.) while fitting the o-ring to the Steering Knuckle of the 25/35 series. Begin by attaching the Wheel Hub and bearing with splash shield designated for 25/35 series. Proceed to install the Wheel Hub and bearing combined with its splash shield for the 15 series. Secure all Wheel Hub and bearing mounting bolts for 15 series and 25/35 series vehicles by tightening Wheel Hub bolts against knuckles to 180 nm (133 foot pounds). Fit the wheel drive shaft assembly nut with washer at the Wheel Hub and bearing and tighten it to 240 nm (177 ft. Lbs.). Reassemble the Wheel Speed Sensor and brake hose mounting bracket bolt to the Steering Knuckle while securing the brake hose clip bolt at 12 nm (106 inch lbs.). Install the rotor, tire, and wheel afterward and lower the vehicle.
