GM 97356246

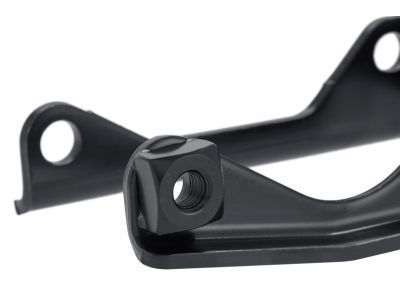

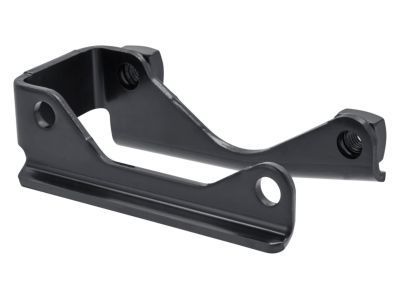

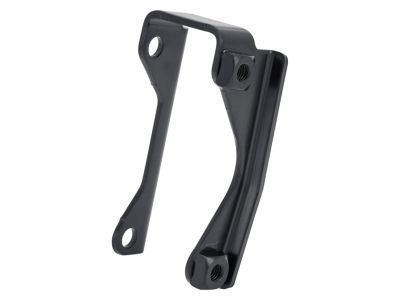

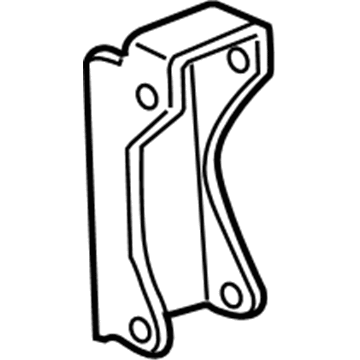

Support Bracket

You must disconnect the battery after proper safety procedures before you can replace the auxiliary generator bracket. The first step involves removing the Fan Shroud followed by disconnecting the electrical connector of the auxiliary generator. Start with the Drive Belt and positive Battery Cable removal from the auxiliary generator through boot sliding down to reveal the terminal stud before unscrewing the nut and finally removing the cable. Advance by disassembling the auxiliary generator bolts then remove the auxiliary generator before removing the auxiliary generator bracket bolts and bracket. Begin installation by attaching the auxiliary generator bracket and fasten it with bolts which must be tightened to 50 n.m (37 lb ft). Put the auxiliary generator into place while securing its bolts to 50 n.m (37 lb ft). Reconnect the positive cable on the auxiliary generator through these steps: place and tighten the positive cable nut to 9 n.m (80 lb in), then slide the boot back over the terminal stud. The last installation steps include putting the Drive Belt in place followed by connecting the electrical connector to the auxiliary generator while replacing the radiator Fan Shroud.

The generator bracket replacement process starts by disassembling the generator and Power Steering Pump from 4.8l, 5.3l, and 6.0l engines. Start by removing the generator bracket bolts and then take away the generator bracket. Begin installation by mounting the generator bracket while following the fastener notice. Use a torque wrench to fasten the generator bracket bolts at 50 n.m (37 lb ft). The installation process concludes with reinstallation of the Power Steering Pump followed by the generator.

Replacement of v8 generator bracket begins with removing the generator before proceeding with the Power Steering Pump. First step is to remove generator bracket bolts before moving ahead to extract the generator bracket. Start with generator bracket installation by mounting it according to fastener cautions. Per the installation procedure tighten the generator bracket bolts to a torque value of 50 nm (37 lb ft). Return the Power Steering Pump to its place and mount the generator afterwards.

Remove the generator bracket itself.

Secure it with the positive cable nut tightened to 9 Nm (80 lb in), and slide the boot back up.

Pivot the air cleaner outlet duct upward to release the hinge clip from the throttle body lip.

Remove the battery cable junction block bracket bolts.

Install the generator bracket bolts and tighten them to 50 N.m (37 lb ft).
