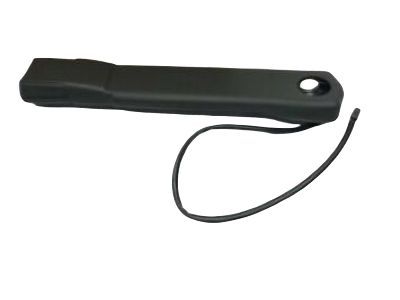

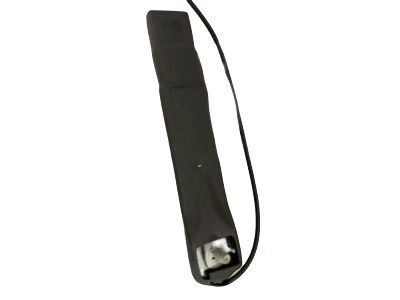

GM 88940157
Latch

Checking and fixing the seat belt system follows a crash for guaranteeing safety. Every seat belt system involved in a serious collision which caused automatic restraint deployment must be replaced. The seat belt system for adults together with the components used for child safety restraints must be repaired followed by LATCH system attachments and top tether anchorages. It is essential to replace all seat belt components whenever they exhibit signs of damage or appear worn out or torn. This applies to adult belts and built-in child seat restraints and LATCH system parts alike. A seat belt system must be replaced when either the "REPLACE" or "CAUTION" words appear or a yellow tag exists. Avoid seat belt system replacement in cases where only a child seat caution label displays. Any uncertainty regarding the state of a seat belt system should lead to immediate replacement of the system. When a vehicle experiences a collision any attempt to repair the seat belt system components individually is wrong because replacing the entire buckle component and retractor assembly with guide assembly becomes necessary. When minor collisions occur without automatic restraint deployment the need for replacement depends on detected torn, worn or damaged parts.

The front Seat Belt replacement process begins with shoulder/Seat Belt guide retaining bolt removal from the adjuster then the guide removal from its position. The process begins by taking off the front door garnish moldings before the removal of the should Seat Belt retractor bolt from the lower pillar and ultimately removing the shoulder/Seat Belt retractor assembly from the vehicle. Start the installation of the shoulder/Seat Belt retractor assembly to the vehicle by carefully following the fastener notice in service precautions. Fasten the lower pillar shoulder/Seat Belt retractor retaining bolt while tightening it to 52 n.m (38 lb ft). Secure the front door lower and upper pillar garnish moldings then attach the shoulder/Seat Belt guide to the shoulder belt guide adjuster before you insert and tighten the upper shoulder/Seat Belt guide retaining bolt to 52 n.m (38 lb ft).

The front Seat Belt replacement process begins by removing the shoulder/Seat Belt guide retaining bolt from the adjuster before pulling the guide out from the adjuster. The front door upper and lower pillar garnish moldings need removal before dealing with the shoulder/Seat Belt retractor retaining bolt from the lower pillar before separating the shoulder/Seat Belt retractor assembly from the vehicle. The shoulder/Seat Belt retractor assembly should be installed onto the vehicle by following the guidelines provided in the service precautions fastener notice. Tighten the shoulder/Seat Belt retractor retaining bolt to the lower pillar hole with 52 n.m (38 lb ft) force. Secure the front door lower and upper pillar garnish moldings before fixing the shoulder/Seat Belt guide to the shoulder belt guide adjuster by tightening the upper shoulder/Seat Belt guide retaining bolt to 52 n.m (38 lb ft).
