GM 88951985

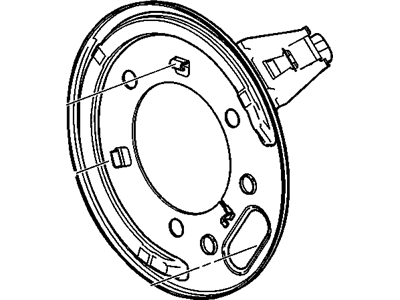

Backing Plate

Start your brake shield replacement work by lifting and stabilizing the vehicle. Take off the wheel and tire unit. Supporting the brake caliper with strong mechanic wire during detachment from its mount is necessary to prevent damage of the hydraulic hose and brake fluid leakage. Take both the brake caliper and its bracket away from the suspension knuckle while keeping the hydraulic brake hose tension free. You should uninstall the wheel bearing from the Steering Knuckle and detach the Brake Dust Shields afterwards. During preparation install the wheel bearing flange onto the brake rotor surface to stop rust and particles from causing wheel runout and brake vibration. The Wheel Hub resurfacing kit tool number j 42450-a removes all dirt and debris from the Wheel Hub surface. Wash off all surfaces on the Steering Knuckle and Brake Dust Shields before placing the Brake Dust Shields into their position on the Steering Knuckle. Install both components as an assembly to the suspension knuckle after you put the wheel bearing back in place. Put the tire and wheel combination onto the protected surface then lower the vehicle.

Requisite steps to change the parking Brake Backing Plate include supporting the vehicle along with tire and wheel uninstallation followed by removal of the Wheel Hub and bearing assembly. First rotate the park brake adjuster nut to bring the bolt into its closed position before extracting the park brake shoe hold down spring along with the park brake shoe assembly through actuator assembly grasping and slight shoec spreading. Start the procedure by eliminating the dust cover with removal of both park brake cable bracket to knuckle mounting bolts followed by taking off the backing plate from the knuckle. The flat bladed tool should be used to move the actuator retaining tab outward before you remove the actuator from the backing plate. To install the actuator move its retaining tab outward before placing the actuator onto the backing plate followed by attaching the backing plate to the knuckle through the two park brake cable bracket to knuckle mounting bolts which need to be fastened to 60 nm (44 ft. Lbs.). Begin installation of the park brake shoe assembly by grasping the shoe then slightly opening it before pulling the shoe across the actuator assembly. Then place and tighten the park brake shoe hold down spring. Adjust the park brake then reinstall the rear Wheel Hub with bearing assembly before you install the rear tire wheel assembly and complete the process by lowering the vehicle down.

The first step to replace the parking Brake Backing Plate starts with vehicle elevation and tire and wheel removal from the rear area. You must eliminate the rear Wheel Hub together with the bearing assembly so you can turn the park brake adjuster nut to reach its bolt-closed state. The technician must first remove the park brake shoe hold down spring followed by the shoe assembly by taking hold of the shoe while spreading it slightly while pulling it away from the actuator assembly. Take off the backing plate from the knuckle after disassembling the two park brake cable bracket to knuckle mounting bolts and the dust cover. A flat bladed tool resolves the actuator retaining tab to move outward while extracting the actuator from the backing plate. Install the actuator toward the backing plate while moving the retaining tab outward and place the backing plate onto the knuckle. Attach the two park brake cable bracket to knuckle mounting bolts before torquing them to 60 nm (44 ft. Lbs.). To install the park brake shoe assembly start by grasping the shoe then spreading it slightly before pulling it over the actuator assembly and finally install the park brake shoe hold down spring. Proceed with these steps: adjust the park brake and install the rear Wheel Hub along with the bearing assembly and complete with the rear tire and wheel assembly, until you lower the vehicle.

The procedure to change the parking Brake Backing Plate starts by lifting and supporting the vehicle and continues with removal of the rear wheel tire assembly followed by the rear Wheel Hub and bearing assembly. The adjuster nut should get rotated until bolt reaches a closed position before removing the shoe hold down spring and shoe assembly from the actuator by simultaneously spreading and pulling with hand force. First remove the dust cover followed by the two park brake cable bracket to knuckle mounting bolts to take off the backing plate from the knuckle. A flat bladed tool should be used to extend the actuator retaining tab for backing plate actuator removal. First install the actuator to the backing plate while extending the actuator retaining tab then connect the backing plate to the knuckle and fasten it with the two park brake cable bracket to knuckle mounting bolts which should be tightened to 60 nm (44 ft. Lbs.). To install the park brake shoe assembly first spread the shoe slightly while you pull it over the actuator assembly followed by the shoe hold down spring installation. Begin by adjusting the park brake and reinstall the rear Wheel Hub together with the bearing assembly. Proceed by reattaching the rear tire and wheel assembly and finally lower the vehicle.

Clean any rust or contaminants from the wheel bearing flange and brake rotor mating surfaces using the Wheel Hub Resurfacing Kit (J 42450-A) to prevent increased lateral runout and brake pulsation.

Move the actuator retaining tab outward and install the actuator to the backing plate.

To prevent increased lateral runout and brake pulsation.

Reinstall the tire and wheel assembly before lowering the vehicle.
