GM 12474423

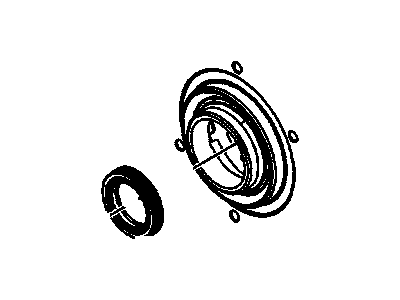

Output Shaft Seal

Name: GM 12474423
Brand: GM
SKU: 12474423
Price: 23.37 USD
Availability: InStock

1997-2014 GM

Customer Questions & Expert Answers (9)

Part Description
Seal, Transfer Case Input Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Input Shaft Seal
Manufacturer
General Motors

Make sure this part fits

$23.37 MSRP: $38.49

You Save: $15.12 (40%)

Ships in 1-2 Business Days

ADD TO CART

Product Specifications
Vehicle Fitment
Customer Questions & Expert Answers

Product Specifications

Brand	Genuine GM
Manufacturer Part Number	12474423
Part Description	Seal, Transfer Case Input Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Input Shaft Seal
Other Names	Input Shaft Seal; Seal, Transfer Case
Item Dimensions	3.4 x 3.4 x 0.6 inches
Item Weight	0.40 Pounds
Condition	New
Fitment Type	Direct Replacement
Manufacturer	General Motors
SKU	12474423
Warranty	This genuine GM part is guaranteed by GM's factory warranty.
Shipping & Return	Shipping Policy Return Policy

Warning: California's Proposition 65

Vehicle Fitment

Year Make Model	Trim	Engine
1999-2000 Cadillac Escalade	Base	8 Cyl 5.7 L GAS
1997-1999 Chevrolet C1500	Base, Cheyenne, LS, Silverado, WT	6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
1997-1999 Chevrolet C1500 Suburban	Base, LS, LT	8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
1997-2000 Chevrolet C2500	Base, Cheyenne, LS, Silverado, WT	8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
1997-1999 Chevrolet C2500 Suburban	Base, LS, LT	8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
1997-2000 Chevrolet C3500	Base, Cheyenne, LS, Silverado	8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
2003-2014 Chevrolet Express 1500	Base, LS, LT	6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
2003-2014 Chevrolet Express 2500	Base, LS, LT	6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
2003-2014 Chevrolet Express 3500	Base, LS, LT	8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
1997-1999 Chevrolet K1500	Base, Cheyenne, LS, Silverado, WT	6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL

Customer Questions & Expert Answers
Q:
Is this 12474423 designed for my car? Posted by ChevyPartsGiant Specialist
A:
Please Select Your Vehicle model to see if part number 12474423 is suitable before ordering.
Posted by ChevyPartsGiant Specialist
Q:
How to replace the rear transfer case output shaft seal with a transfer case seal on Cadillac Escalade? Posted by Customer
A:
Before you replace the rear transfer case output shaft seal, raise the vehicle. If there are shields on the transfer case, take them off. After that, take out the rear propeller shaft. After that, disconnect the rear output shaft seal in the transmission. For the installation process, use the j29162 (Rear Output Shaft Seal Installer) and prior to installing, put a small amount of automatic transfer case oil gm p/n 12378396 on the seal's mating surface. After that, install the rear propeller shaft again. Examine the level of oil in the transfer case and place more as necessary. After that, fit the transfer case shields and then set the vehicle down on the ground.
Posted by ChevyPartsGiant Specialist
Q:
How to replace the front output transfer case seal on Chevrolet K3500? Posted by Customer
A:
The replacement process of the front transfer case output shaft seal begins by raising the vehicle with additional steps directing the removal of transfer case shields when present. First remove the front propeller shaft together with the exhaust crossover pipe. Begin the front output shaft seal removal process by uninstalling the inner sleeve and then continuing to detach the outer part of the seal. Replacements for front output shaft seals necessitate the use of either j35870 front output shaft seal installer from production start through mid-1999 or j43484 front output shaft seal installer after mid-1999. A layer of dexron(R) iii oil from gm p/n 12346143 must lubricate both seal mating surfaces before the seal installation process. Place the seal in a straight position. Verify the installment of transfer case oil level before you may need to add extra oil. Reinstall the front propeller shaft as well as the exhaust crossover pipe and transfer case shields if equipped before lowering the vehicle.
Posted by ChevyPartsGiant Specialist
Q:
How to replace the front output transfer case seal on GMC Savana 1500? Posted by Customer
A:
The first step to replace the front output shaft seal involves raising the vehicle along with front propeller shaft removal. The front output shaft seal includes two separate internal pieces where the inner segment tightly attaches to the front output shaft. The flat-tipped screwdriver should be used to slide the inner race forward before a pry bar can remove the seal's inner section. A flat-tipped screwdriver or small pry bar should be inserted between the Transfer Case and outer race of the seal to separate them before removing the outer part of the seal. The j 43484 (Front Output Shaft Seal Installer) along with the j 8092 (Universal Handle) should be used to mount the Transfer Case output seal before reinstalling the front propeller shaft. Users should check the Transfer Case fluid level followed by lowering their vehicle after installation.
Posted by ChevyPartsGiant Specialist
Q:
How do you remove the old rear output shaft seal for the 2004 Chevrolet Express 1500? Posted by Customer
A:
Pry out the old rear output shaft seal using a flat tipped screwdriver.
Posted by ChevyPartsGiant Specialist
See expert answers on similar Transfer Case Seal
Q:
What is the next step after removing the inner part of the seal for the 2004 Chevrolet Express 1500? Posted by Customer
A:
Use the flat-tipped screwdriver or small pry bar to pry the outer race out of the transfer case and remove the outer part of the seal.
Posted by ChevyPartsGiant Specialist
See expert answers on similar Transfer Case Seal
Q:
How do you remove the input shaft seal for the 2006 Chevrolet Express 1500? Posted by Customer
A:
Poke a hole in the seal with a very small punch and thread the J36825 (Output Shaft Oil Seal Remover) into the hole.
Posted by ChevyPartsGiant Specialist
See expert answers on similar Transfer Case Seal
Q:
How do you install the new input shaft seal for the 2010 GMC Savana 1500? Posted by Customer
A:
Position the seal on the input shaft and use the J 45758 (Seal Installer) to install it in the transfer case.
Posted by ChevyPartsGiant Specialist
See expert answers on similar Transfer Case Seal
Q:
What is the final step after installing the new input shaft seal for the 2009 GMC Savana 1500? Posted by Customer
A:
Reinstall the transfer case to the adapter and lower the vehicle.
Posted by ChevyPartsGiant Specialist
See expert answers on similar Transfer Case Seal
If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM 12474423, Excellent Performance and Perfect Fitment

To ensure reliability, purchase GM part # 12474423 Output Shaft Seal. It is sometimes referred to as GM Transfer Case Seal, GM Automatic Transmission Input Shaft Seal. Choosing OEM parts is the optimal decision for guaranteeing superior quality and perfect performance. These components undergo stringent quality checks and are carefully constructed to comply with GM's factory specifications, ensuring a smooth installation process.
