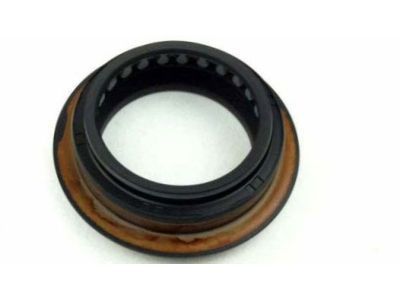

OEM Chevrolet Transfer Case Seal

Transfer Case Output Shaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

48 Transfer Case Seals found

View related parts
Chevrolet Extension Housing Seal, Front
Part Number: 24226707
$33.28 MSRP: $54.82
You Save: $21.54 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal Assembly-Propeller Shaft Front Slip Yoke Oil; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Rear Bearing Retaining; Seal, Transmission Extension; Seal, Transfer Case
- Position: Front
- Replaces: 19133151
Fits the following Chevrolet Models:
- Express 2500 | 2018-2020 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
- Express 3500 | 2018-2020 | Base, LS, LT | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Extension Housing Seal
Part Number: 24228876
$27.33 MSRP: $45.03
You Save: $17.70 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transmission Input And Turbine Shaft; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Universal Joint Sleeve Yoke
- Replaces: 24238075
Fits the following Chevrolet Models:
- Camaro | 2016-2022 | LS, LT | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
- Colorado | 2015-2022 | Base, LT, WT, Z71 | 4 Cyl 2.5 L GAS, 4 Cyl 2.8 L DIESEL, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Input Shaft Seal
Part Number: 19299082
$15.11 MSRP: $24.91
You Save: $9.80 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Input Shaft; Automatic Transmission Input Shaft Seal.; Seal, Transfer Case
- Replaces: 19257407
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2020-2023 | Custom, High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Silverado 3500 HD | 2020-2023 | High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Adapter Gasket
Part Number: 24245110
$8.17 MSRP: $13.45
You Save: $5.28 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gasket-Transfer Case Adapter; Transfer Case Adapter Seal
- Replaced by: 86816628
Fits the following Chevrolet Models:
- Colorado | 2023 | LT, Trail Boss, WT, Z71, ZR2 | 4 Cyl 2.7 L GAS
- Silverado 1500 | 2019-2022 | Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, RST, SSV, WT, ZR2 | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Suburban | 2021-2022 | Commercial, High Country, LS, LT, Premier, RST, Z71 | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Tahoe | 2021-2022 | Commercial, High Country, LS, LT, PPV, Premier, RST, SSV, Z71 | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Extension Seal, Rear
Part Number: 15661460
$26.15 MSRP: $43.08
You Save: $16.93 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket; Seal, Transfer Case
- Position: Rear
Fits the following Chevrolet Models:
- Blazer | 1995-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- S10 | 1994-2004 | Base, LS, SS, Xtreme, ZR2, ZR5 | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
- S10 Blazer | 1994 | Base, LT, Tahoe, Tahoe LT | 6 Cyl 4.3 L GAS
View More
View related parts
Chevrolet Extension Housing Seal
Part Number: 8681168
$7.88 MSRP: $12.51
You Save: $4.63 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Automatic Transmission Case Extension; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Rear Bearing Retaining; Seal, Transmission Extension; Seal, Transfer Case
Fits the following Chevrolet Models:
- Suburban 1500 | 2007 | LT, LTZ | 8 Cyl 6.0 L GAS
- Suburban 2500 | 2007 | LS, LT, LTZ | 8 Cyl 6.0 L GAS
View related parts
Chevrolet Extension Housing Seal, Rear
Part Number: 24232324
$13.41 MSRP: $22.09
You Save: $8.68 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Transmission Extension
- Position: Rear
- Replaces: 24204540
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002-2006 | Base, LS, LT, On Road Edition, WBH, Z66 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LT | 8 Cyl 8.1 L GAS
- Camaro | 1996-2001 | Base, RS, Z28, Z28 SS | 6 Cyl 3.8 L GAS, 8 Cyl 5.7 L GAS
- Caprice | 1996 | Classic | 8 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS
- Express 1500 | 2003-2005 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L GAS
- Express 2500 | 2003-2005 | Base, LS | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Express 3500 | 2003-2005 | Base, LS | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Impala | 1996 | SS | 8 Cyl 5.7 L GAS
- Silverado 1500 | 1999-2013 | Base, Hybrid, LS, LT, LTZ, SS, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Silverado 1500 Classic | 2007 | Hybrid, LS, LT, SS, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View More
View related parts
Chevrolet Extension Seal
Part Number: 97238997
$19.00 MSRP: $29.75
You Save: $10.75 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case Rear Output Shaft; Transfer Case Gasket; Seal, Transfer Case
- Position: Rear
Fits the following Chevrolet Models:
- Colorado | 2004-2012 | Base, LS, LT, Sport, Sport LS, WT, Z71, Z71 LS, Z85, Z85 LS | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Extension Housing Seal, Rear
Part Number: 24286193
$1.24 MSRP: $1.95
You Save: $0.71 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Automatic Transmission Extension Housing Seal; Transmission Seal
- Position: Rear
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2020-2023 | Custom, High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Silverado 3500 HD | 2020-2023 | High Country, LT, LTZ, WT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View related parts
Chevrolet Output Shaft Seal
Part Number: 84681932
$32.83 MSRP: $51.42
You Save: $18.59 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Power Transfer U Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Replaced by: 85732461
- Replaces: 23432724, 84585185
Fits the following Chevrolet Models:
- Equinox | 2018-2023 | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Extension Housing Seal, Front
Part Number: 8677463
$9.59 MSRP: $15.01
You Save: $5.42 (37%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Propeller Shaft Front Slip Yoke Oil; Automatic Transmission Extension Housing Seal; Transmission Seal; Seal, Transmission Rear Main Bearing; Seal, Rear Bearing Retaining; Seal, Transmission Extension
- Position: Front
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002-2006 | Base, LS, LT, On Road Edition, WBH, Z66 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LT | 8 Cyl 8.1 L GAS
- Express 1500 | 2003-2009 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Express 2500 | 1996-2009 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL
- Express 3500 | 1996-2009 | Base, LS, LT | 8 Cyl 4.8 L GAS, 8 Cyl 5.7 L BI-FUEL, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 6.6 L DIESEL, 8 Cyl 7.4 L GAS, 8 Cyl 8.1 L GAS
- G10 | 1993-1995, 1991 | Beauville, Chevy Van, Sportvan | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G20 | 1993-1995, 1991 | Beauville, Chevy Van, Sportvan | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- G30 | 1993-1996, 1991 | Beauville, Chevy Van, Hi-Cube, Sportvan | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Silverado 1500 | 2000-2006 | Base, Hybrid, LS, LT, SS, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2005-2006, 2001-2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
View More
View related parts
Chevrolet Extension Housing Seal, Rear
Part Number: 23049496
$10.84 MSRP: $16.99
You Save: $6.15 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Manual Transmission Extension Housing Seal and Gasket Set.; Seal, Transmission Rear Main Bearing; Seal, Transmission Extension
- Position: Rear
Fits the following Chevrolet Models:
- Avalanche 1500 | 2002-2006 | Base, LS, LT, On Road Edition, WBH, Z66 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LT | 8 Cyl 8.1 L GAS
- Blazer | 1992-1994 | Base, Cheyenne, Silverado, Silverado Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C1500 | 1988-1998 | 454 SS, Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C1500 Suburban | 1992-1998 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-1998 | Base, Cheyenne, Scottsdale, Silverado, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1998 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-1998 | Base, Cheyenne, Scottsdale, Silverado | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1998 | Base, Cheyenne, Scottsdale, Silverado, Sport, WT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1998 | Base, LS, LT, Silverado | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View More
View related parts
Chevrolet Output Shaft Seal, Front
Part Number: 84124168
$8.39 MSRP: $13.13
You Save: $4.74 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
- Position: Front
Fits the following Chevrolet Models:
- Silverado 1500 | 2019-2023 | Custom, Custom Trail Boss, High Country, LT, LT Trail Boss, LTZ, PPV, RST, SSV, WT, ZR2 | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Suburban | 2021-2022 | Commercial, High Country, LS, LT, Premier, RST, Z71 | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Tahoe | 2021-2022 | Commercial, High Country, LS, LT, PPV, Premier, RST, SSV, Z71 | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Extension Housing Seal, Rear
Part Number: 12530278
$20.14 MSRP: $33.17
You Save: $13.03 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Rear Bearing Retaining; Manual Transmission Extension Housing Seal and Gasket Set.; Seal, Transmission Extension
- Position: Rear
Fits the following Chevrolet Models:
- Camaro | 1993-1998 | Base, Indianapolis 500 Pace Car, RS, Z28, Z28 SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS, 8 Cyl 5.7 L GAS
View related parts
Chevrolet Input Shaft Seal
Part Number: 19260629
$20.19 MSRP: $31.62
You Save: $11.43 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case; Automatic Transmission Input Shaft Seal; Transfer Case Input Shaft Seal; Seal Kit, Transfer Case
- Position: Front
Fits the following Chevrolet Models:
- Trax | 2015-2022 | LS, LT, LTZ, Premier | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Output Shaft Seal
Part Number: 84666372
$39.82 MSRP: $62.37
You Save: $22.55 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Power Transfer U Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Transfer Case
Fits the following Chevrolet Models:
- Trailblazer | 2021-2022 | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Input Shaft Seal
Part Number: 84501576
$44.13 MSRP: $69.11
You Save: $24.98 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case; Automatic Transmission Input Shaft Seal; Transfer Case Input Shaft Seal
Fits the following Chevrolet Models:
- Trailblazer | 2021-2022 | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Output Shaft Seal, Front
Part Number: 84368195
$8.49 MSRP: $13.29
You Save: $4.80 (37%)
ADD TO CART
Product Specifications
- Other Name: Seal-Transfer Case Front Output Shaft; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Intermediate Transfer Case; Seal, Transfer Case
- Position: Front
Fits the following Chevrolet Models:
- Colorado | 2023 | LT, Trail Boss, WT, Z71, ZR2 | 4 Cyl 2.7 L GAS
View related parts
Chevrolet Extension Housing Seal
Part Number: 55579988
$9.44 MSRP: $14.79
You Save: $5.35 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transfer Case; Transfer Case Extension Housing Seals
- Position: Rear
Fits the following Chevrolet Models:
- Trax | 2015-2022 | LS, LT, LTZ, Premier | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Output Shaft Seal
Part Number: 29536379
$11.35 MSRP: $18.70
You Save: $7.35 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Transmission Planet Carrier; Automatic Transmission Transfer Shaft Seals; Transfer Case Output Shaft Seal; Seal, Universal Joint Sleeve Yoke
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2011-2014 | LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Silverado 3500 HD | 2011-2014 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL

| Page 1 of 3 |Next >

1-20 of 48 Results

Chevrolet Transfer Case Seal Parts Questions & Experts Answers

Extension Seal
97238997
Q: How to Change the Transfer Case Seal on a Chevrolet Colorado?
A: Before changing the rear output shaft seal, the rear propeller shaft must be removed. Warning is needed for the removal of Transfer Case seal. Then, you should use a flat-bladed screwdriver and a hammer to take out the rear output shaft seal in the Transfer Case. For installation use the j 35582 (Oil Pump Seal Installer) and a hammer to install the new rear output shaft seal to the Transfer Case. After installation, reinstall the rear propeller shaft and check the Transfer Case fluid level.
Output Shaft Seal, Rear
12547638
Q: How to replace the input transfer case seal on Chevrolet S10?
A: Vehicle elevation serves as a first step before starting Transfer Case input shaft seal replacement work. After lifting the vehicle begin by removing the Transfer Case from its position followed by removing the Transfer Case input shaft seal. When installing the new input shaft seal position the part numbers to be visible toward the technician. After installation position the Transfer Case input shaft seal perfectly straight along the input shaft and verify its evenness with the Transfer Case surface. The j 42738 seal installer (J 42738) serves to properly install the Transfer Case input shaft seal. Reinstall the Transfer Case into the vehicle before checking fluid levels followed by vehicle lowering.
Extension Housing Seal
24262196
Q: How to replace the rear output transfer case seal on Chevrolet Tahoe?
A: The replacement process of the rear output shaft seal starts by properly supporting and lifting the vehicle. Begin by taking off the transfer case shield only when present and then the rear propeller shaft. A flat-tipped screwdriver allows the removal of the rear output shaft seal through prying action. The output shaft seal installer (J 45756) should be used for installing a new front output shaft seal. Finally, reinstall the rear propeller shaft followed by a check of the fluid level and necessary fluid addition. Reinstallation of the transfer case shield takes place only when present before lowering the vehicle to an upright position.
